Arthur N Neu Airport

US Flag

Carroll Weather (°F)

KCIN (0.2 NM at True Heading of 184)
METAR: KCIN 242055Z AUTO 33007G13KT 10SM SCT043 32/25 A2995 RMK AO2
TAF: N/A

Location

Latitude:
42-02-48.0000N (42.046667)
Longitude:
094-47-19.3000W (-94.788694)
Elevation:
1203.7 feet MSL (367 m MSL)
Magnetic Variation:
1.4 E (as of July 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
04 N.M. SE of Carroll, Iowa
Found On:
Omaha Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
DONALD MENSEN
21177 QUAIL AVE
CARROLL, IA 51401
712-792-4980
CITY OF CARROLL
627 NORTH ADAMS
CARROLL, IA 51401
712-792-1000

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1945
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0800-DUSK
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2204 feet (672 m)
NOTAMs Facility:
CIN
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  11
Multi Engine:  2
GA Helicopters:  1

Annual Operations (as of 07/10/2018)

Total Operations:  7700
Air Taxi:  642 8.3%
GA Local:  3910 50.8%
GA Itinerant:  3123 40.6%
Military Aircraft:  25 0.3%

Communications

CTAF:  122.800
Unicom:  122.800
AWOS-3:  118.025 (712-792-2306)

  • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 134.0/288.3 (FT DODGE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 712

Business Name Frequency Phone Fuel Grade
Carroll Aviation, Inc.

Unicom 122.8 792-4908 100LL, Jet A, MOGAS
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Fort Dodge(FOD)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 07/15/21 to 0901Z 08/12/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 13 NC-3
IAP RNAV (GPS) RWY 31 NC-3
MIN ALTERNATE MINIMUMS NC-3
MIN TAKEOFF MINIMUMS NC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near CIN

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
20.0 Jefferson Municipal Airport
(EFW KEFW EFW)
96 95 100LL
21.5 Audubon County Airport
(KADU ADU)
195 193 100LL, Jet A
21.7 Sac City Municipal Airport
(KSKI SKI)
337 335 100LL
21.8 Rockwell City Municipal Airport
(2Y4)
20 19 100LL
26.6 Denison Municipal Airport
(DNS KDNS DNS)
262 260 100LL, Jet A
31.0 Perry Municipal Airport
(PRO KPRO PRO)
114 113 100LL, Jet A
37.1 Harlan Municipal Airport
(KHNR HNR)
221 219 100LL, Jet A
38.6 Storm Lake Municipal Airport
(SLB KSLB SLB)
328 326 100, Jet A
40.2 Fort Dodge Regional Airport
(FOD KFOD FOD)
40 39 100LL, Jet A
40.3 Atlantic Municipal Airport
(AIO KAIO AIO)
196 194 100LL, Jet A
41.9 Boone Municipal Airport
(BNW KBNW BNW)
89 88 100LL, Jet A, MOGAS
45.8 Greenfield Municipal Airport
(KGFZ GFZ)
160 159 100LL
47.1 Webster City Municipal Airport
(EBS KEBS EBS)
59 58 100LL, Jet A
52.1 Ames Municipal Airport
(AMW KAMW AMW)
93 92 100, Jet A
53.3 Cherokee County Regional Airport
(KCKP CKP)
320 318 100LL, Jet A
53.5 Winterset Municipal Airport
(3Y3)
139 138 100LL, Jet A
55.5 Eagle Grove Municipal Airport
(KEAG EAG)
43 42 100LL
56.4 Morningstar Field Airport
(Y76)
114 113 100LL, MOGAS
58.6 Ankeny Regional Airport
(KIKV IKV)
110 109 100LL, Jet A
59.0 Des Moines International Airport
(DSM KDSM DSM)
121 120 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KCIN NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KCIN

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KCIN

Remarks

A11 NORMAN HUTCHESON CHMN ARPT CMSN, PHONE 792-2621.
A110-1 RY 31 IS CALM WIND RY.
A110-2 FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17 FOR SVC AFTER HOURS CALL 712-792-4980.
A57-13 APCH SLOPE 50:1 FROM DSPLCD THLD.
A81-APT DUSK-DAWN. MIRL RYS 13/31 & 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT PAPI RYS 13/31 & 03/21 AND REIL RYS 13/31 & 03/21 - CTAF.

Runways

Runway Summary

Runways: 03/21
13/31
Longest Runway: 13/31 is 5506 ft (1678 m) long
Runways with an Instrument Approach:

CIN Airport Runway Details

Runway 03/21  3301 ft x 60 ft (1006 m x 18 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2010
Surface:  Concrete - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 03

Runway 21

Elevation:
1201.7 1200.5
Latitude:
42-02-37.0358N 42-03-05.2916N
Longitude:
094-47-30.2227W 094-47-08.3873W
True Magnetic Hdg.:
030 210
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
ROAD ROAD
Object Height:
15 28
Object Marked/Lighted?:
Distance from End:
340 1050
Object Centerline Offset:
0 ft. left and right of centerline 0 ft. left and right of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
33 33
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 13/31  5506 ft x 100 ft (1678 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2010
Surface:  Concrete - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 13

Runway 31

Elevation:
1203.7 1202.9
Latitude:
42-03-05.9278N 42-02-26.3834N
Longitude:
094-47-44.3012W 094-46-54.2101W
True Magnetic Hdg.:
137 317
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
RR
Object Height:
33
Object Marked/Lighted?:
Distance from End:
1329
Object Centerline Offset:
0 ft. left and right of centerline 0 ft. left and right of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
23 26
Threshold Elevation:
1203.1
Displaced Threshold:
506
Threshold Latitude:
42-03-02.2951N

Threshold Longitude:

094-47-39.6979W
Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
High Pressure / Low Pressure
Bulk Oxygen:
High Pressure / Low Pressure
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

CIN Airport Sectional

Flight Planning
at skyvector.com

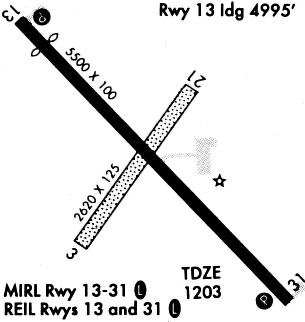

CIN Airport Diagram
