Winterset Municipal Airport

US Flag

FAA: 3Y3

Winterset Weather (°F)

Location

Latitude:
 41-21-46.1000N (41.362806)
Longitude:
 094-01-16.3000W (-94.021194)
Elevation:
 1115.5 feet MSL (340 m MSL)
Magnetic Variation:
 0.8 E (as of March 2023 from WMM2020 model)
Time Zone:
 UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
 02 N.M. N of Winterset, Iowa
Found On:
 Omaha Chart
FAA Region:
 ACE

Contacts

Manager:
Publicly owned:
AARON ARMSTRONG
3405 NORTH 8TH AVE
WINTERSET, IA 50273
515-205-9919		 WNTRSET ARPT AUTH
3405 NORTH 8TH AVENUE
WINTERSET, IA 50273
(515) 468-8895

Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Activation Date:
 01/1970
Control tower:
 No
Attendance (Months/Days/Hours):
 Months/Days/Hours
ALL/MON-FRI/0800-1700
Boundary ARTCC:
 ZMP (Minneapolis)
Responsible ARTCC:
 ZMP (Minneapolis)
Lighting Schedule:
 SEE RMK
Segmented Circle Indicator:
 No
Traffic Pattern Altitude (MSL):
 2116 feet (645 m)
NOTAMs Facility:
 FOD
NOTAM-D Service:
 Yes
International Airport of Entry:
 No
Customs Landing Rights:
 No

Based Aircraft

Single Engine:  21
Multi Engine:  2

Annual Operations (as of 09/25/2020)

Total Operations:  6750
GA Local:  3260 48.3%
GA Itinerant:  3490 51.7%

Communications

CTAF:  122.700
Unicom:  122.700
Approach:  DES MOINES
135.2
135.2
Departure:  DES MOINES
135.2
135.2



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 515
    Business Name Frequency Phone Fuel Grade
    Winterset Aviation Services, Inc.
           		Unicom 122.7 462-1811 100LL
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Fort Dodge(FOD)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 02/23/23 to 0901Z 03/23/23.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP RNAV (GPS) RWY 14 NC-3
    IAP RNAV (GPS) RWY 32 NC-3
    MIN TAKEOFF MINIMUMS NC-3
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near 3Y3

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    19.1 Des Moines International Airport
    (DSM KDSM DSM)    		 57 57 100LL, Jet A
    19.2 Greenfield Municipal Airport
    (KGFZ GFZ)    		 263 262 100LL
    28.4 Ankeny Regional Airport
    (KIKV IKV)    		 45 45 100LL, Jet A
    28.6 Perry Municipal Airport
    (PRO KPRO PRO)    		 347 346 100LL, Jet A
    36.3 Chariton Municipal Airport
    (KCNC CNC)    		 124 124 100LL
    39.8 Corning Municipal Airport
    (KCRZ CRZ)    		 236 235 100LL
    41.1 Knoxville Municipal Airport
    (KOXV OXV)    		 95 95 100LL, Jet A
    41.4 Jefferson Municipal Airport
    (EFW KEFW EFW)    		 339 338 100LL
    41.8 Ames Municipal Airport
    (AMW KAMW AMW)    		 25 25 100, Jet A
    41.9 Boone Municipal Airport
    (BNW KBNW BNW)    		 10 9 100LL, Jet A, MOGAS
    44.2 Lamoni Municipal Airport
    (KLWD LWD)    		 172 171 100LL
    45.2 Audubon County Airport
    (KADU ADU)    		 297 296 100LL, Jet A
    46.3 Atlantic Municipal Airport
    (AIO KAIO AIO)    		 273 272 100LL, Jet A
    48.5 Pella Municipal Airport
    (KPEA PEA)    		 86 86 100LL, Jet A
    53.5 Arthur N Neu Airport
    (CIN KCIN CIN)    		 320 319 100LL, Jet A
    59.7 Red Oak Municipal Airport
    (KRDK RDK)    		 249 247 100LL, Jet A
    60.7 Harlan Municipal Airport
    (KHNR HNR)    		 283 281 100LL, Jet A
    61.4 Grinnell Regional Airport
    (KGGI GGI)    		 69 69 100LL, Jet A
    63.4 Drake Airport
    (2Y1)    		 25 25 100LL
    64.8 Webster City Municipal Airport
    (EBS KEBS EBS)    		 5 4 100LL, Jet A

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL 3Y3 NOTAMs
    View 3Y3 NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of 3Y3

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of 3Y3

    Remarks

    A11 WINTERSET AIRPORT AUTHORITY
    A110-1 ULTRALIGHT ACT ON & INVOF ARPT.
    A110-2 RWY 32 END SAFETY AREA EXTDS 240 FT; SHARP DROP AT THAT POINT.
    A110-3 INADQT CLNC FOR HLDG ON THE TARND AT THE THR OF RWY 32.
    A110-5 RWY 32 IS CALM WIND RWY.
    A110-6 FOR CD CTC DES MOINES ATCT AT 515-974-8016.
    A15 EMAIL ADDRESS: ANDREW.G.OVERTON@GMAIL.COM
    A40-14/32 MIRL - RWY 14/32 ENDS HAVE SIX THLD LGTS AND ALL WHITE LENSES ALONG RWY LEN.
    A57-14 APCH SLOPE 6:1 FM DSPLCD THLD.
    A58-14 15 FT ROAD 140 FT FM RY END
    A81-APT ACTVT MIRL RY 14/32 & PAPI RYS 14 & 32 - CTAF.
    E111 PRVDD NW END RWY IS DSPLCD SUF DSTC TO PRVD 15 FT CLNC OVR E/W RD FOR A 20:1 APCH RATIO.

    Runways

    Runway Summary

    Runways: 14/32
    Longest Runway: 14/32 is 3002 ft (915 m) long
    Runways with an Instrument Approach:

    3Y3 Airport Runway Details

    Runway 14/32  3002 ft x 50 ft (915 m x 15 m)
    Runway Length Source:  3RD PARTY SURVEY as of 02/09/2011
    Runway Pavement Class:  6 /F/A/X/U
    Runway Edge Lights:  Non-standard lighting system Intensity

    Runway 14

    Runway 32
    Elevation:
    		 1115.5 1093.8
    Latitude:
    		 41-21-57.9098N 41-21-34.3217N
    Longitude:
    		 094-01-28.2647W 094-01-04.4061W
    Runway True Alignment:
    		 143 323
    Glide Path Angle:
    		 3.0 degrees 3.0 degrees
    Traffic Pattern:
    		 Left Right
    Runway Markings Type:
    		 Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    		Good Good
    Object at End:
    		 ROAD TREE
    Object Height:
    		 15 20
    Distance from End:
    		 200 603
    Object Centerline Offset:
    		 45 ft. right of centerline 210 ft. right of centerline
    Visual Glide Slope Indicators:
    		 2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
    Threshold Crossing Height:
    		 32 40
    Threshold Elevation:
    		 1115.1
    Displaced Threshold:
    		 175
    Threshold Latitude:
    		 41-21-56.5393N

    Threshold Longitude:

    		 094-01-26.8783W

    Services

    Airframe Repair:
    		 Major
    Powerplant Repair:
    		 Major
    Bottled Oxygen:
    		 None
    Bulk Oxygen:
    		 None
    Fuel Available:
    		 100LL, Jet A
    Landing Fees:
    		 No
    Parking:
    		 Hangars and tiedowns available

    Maps & Diagrams

    3Y3 Sectional

    Flight Planning
    at skyvector.com

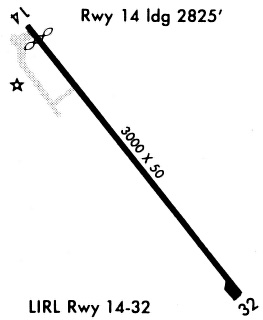

    3Y3 Diagram
