Hot Springs Municipal Airport

US Flag

ICAO: KHSR

FAA: HSR


View AFD

View Notices

Location

Latitude:
 43-22-05.9000N (43.368306)
Longitude:
 103-23-17.8000W (-103.388278)
Elevation:
 3150.2 feet MSL (960 m MSL)
Magnetic Variation:
 7 E (as of October 2024 from WMM2020 model)
Time Zone:
 UTC -7.0 (Standard Time)
UTC -6.0 (Daylight Savings Time)
From City:
 05 N.M. SE of Hot Springs, South Dakota
Found On:
 Cheyenne Chart
FAA Region:
 AGL

Contacts

Manager:
Publicly owned:
IVAN VENNER
27858 HWY 385
HOT SPRINGS, SD 57747
605-745-3555		 CITY OF HOT SPRINGS
BOX 391
HOT SPRINGS, SD 57747
605-745-3135

Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Activation Date:
 12/1950
Control tower:
 No
Attendance (Months/Days/Hours):
 Months/Days/Hours
ALL/MON-FRI/0800-1700
Boundary ARTCC:
 ZDV (Denver)
Responsible ARTCC:
 ZDV (Denver)
Lighting Schedule:
 SEE RMK
Segmented Circle Indicator:
 Yes
Traffic Pattern Altitude (MSL):
 4150 feet (1265 m)
NOTAMs Facility:
 HON
NOTAM-D Service:
 Yes
International Airport of Entry:
 No
Customs Landing Rights:
 No
Military Landing Rights:
 Yes
Civil/Military Joint Use:
 No

Based Aircraft

Annual Operations (as of )

Communications

CTAF:  122.800
Unicom:  122.800

  • APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 127.95/338.2 (RAPID CITY RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 605
Business Name Frequency Phone Fuel Grade
Hot Springs AeroServe
   Update FBO info		 Unicom 122.8 745-3555 100LL, MOGAS
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Huron(HON)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 10/03/24 to 0901Z 10/31/24.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
DP HOT SPRINGS TWO NC-1
DP TOADSTOOL TWO NC-1
IAP RNAV (GPS) RWY 01 NC-1
IAP RNAV (GPS) RWY 19 NC-1
MIN TAKEOFF MINIMUMS NC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KHSR

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
34.3 Chadron Municipal Airport
(CDR KCDR CDR)		 157 150 100LL, Jet A
43.1 Rapid City Regional Airport
(RAP KRAP RAP)		 19 12 100LL, Jet A
50.8 Mondell Field Airport
(ECS KECS ECS)		 307 299 100LL, Jet A
57.8 Lusk Municipal Airport
(LSK KLSK LSK)		 230 222 100LL
63.0 Gordon Municipal Airport
(GRN KGRN GRN)		 121 115 100LL
63.0 Sturgis Municipal Airport
(49B)		 0 353 100LL, Jet A
68.9 Black Hills-Clyde Ice Field Airport
(SPF KSPF SPF)		 345 338 100LL, Jet A
83.0 Alliance Municipal Airport
(AIA KAIA AIA)		 161 154 100LL, Jet A
84.5 Belle Fourche Municipal Airport
(KEFC EFC)		 346 339 100LL, Jet A
85.2 Torrington Municipal Airport
(TOR KTOR TOR)		 203 196 100LL, Jet A+
87.7 Philip Airport
(PHP KPHP PHP)		 61 55 100LL
88.9 Camp Guernsey Airport
(KGUR GUR)		 222 214 Jet A
90.1 Scottsbluff/Western Nebraska Regional/Wm B Heilig Field Airport
(BFF KBFF BFF)		 185 178 100LL, Jet A
94.0 Converse County Airport
(DGW KDGW DGW)		 249 241 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KHSR NOTAMs
View KHSR NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KHSR

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KHSR

Remarks

A110-2 RY 01 +21 FT PLINE 680 FT FM THR.
A110-3 BIRDS ON & INVOF ARPT.
A110-4 RY 06/24 MARKED WITH BLACK AND WHITE CONES.
A110-5 GLIDER OPS ON & INVOF ARPT.
A110-6 GCO AVBL ON FREQ 121.725 ( 4 CLICKS TO DENVER CENTER AND 6 CLIKCS TO FLIGHT SERVICES)
A110-7 COMPASS ROSE LCTD ON APRON.
A110-8 FOR CD IF UNA VIA GCO CTC DENVER ARTCC AT 303-651-4257.
A110-9 HIGH VOL OF ACFT OPRNG INVOF OF MT RUSHMORE AND CRAZY HORSE MONUMENTS AT OR BLW 7500 FT; PILOTS ARE ADVISED TO MNT 122.85 FOR TFC ADVISORIES.
A70-FUEL-10 0LL FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APT ACTVT PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF.
A82 AUTOMATED UNICOM; 3 CLICKS ADZY & WX.

Runways

Runway Summary

Runways: 01/19
06/24
Longest Runway: 01/19 is 4506 ft (1373 m) long
Runways with an Instrument Approach:

KHSR Airport Runway Details

Runway 01/19  4506 ft x 100 ft (1373 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/13/2014
Surface:  Asphalt - Good condition - No special surface treatment
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  12.5

Runway 01

Runway 19
Elevation:
 3150.2 3141.8
Latitude:
 43-21-48.2912N 43-22-29.6528N
Longitude:
 103-23-32.5113W 103-23-10.0317W
Runway True Alignment:
 022 202
Glide Path Angle:
 3.0 degrees 3.0 degrees
Traffic Pattern:
 Left Left
Runway Markings Type:
 Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Object at End:
 TREES TREE
Object Height:
 122 20
Distance from End:
 3400 601
Object Centerline Offset:
 0 ft. left and right of centerline 280 ft. left of centerline
Visual Glide Slope Indicators:
 2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
REIL:
 No No
Touchdown Lights:
 No No
Centerline Lights:
 No No
Threshold Crossing Height:
 38 41

Runway 06/24  3926 ft x 235 ft (1197 m x 72 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/13/2014
Surface:  Asphalt - Good condition - No special surface treatment

Runway 06

Runway 24
Elevation:
 3146.2 3142.0
Latitude:
 43-21-57.7597N 43-22-07.1725N
Longitude:
 103-23-39.6844W 103-22-48.1326W
Runway True Alignment:
 076 256
Glide Path Angle:
 0.0 degrees 0.0 degrees
Traffic Pattern:
 Left Left
Runway Markings Type:
 Nonstandard (other than numbers only) Nonstandard (other than numbers only)
Runway Markings Condition:
Good Good
Object Height:
 20
Distance from End:
 800
Object Centerline Offset:
 0 ft. left and right of centerline 280 ft. left of centerline
REIL:
 No No
Touchdown Lights:
 No No
Centerline Lights:
 No No

Services

Airframe Repair:
 Major
Powerplant Repair:
 Major
Bottled Oxygen:
 None
Bulk Oxygen:
 None
Fuel Available:
 100LL, Jet A
Landing Fees:
 No
Parking:
 Hangars and tiedowns available

Maps & Diagrams

KHSR Sectional

Flight Planning
at skyvector.com

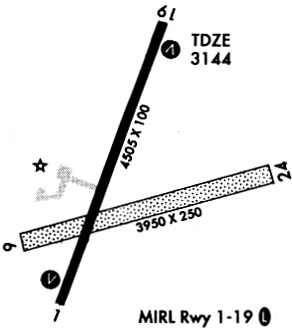

KHSR Diagram
