Chadron Municipal Airport

US Flag

Chadron Weather (°F)

KCDR (0.1 NM at True Heading of 253)
METAR: KCDR 290053Z AUTO 18020G28KT 9SM CLR 27/06 A2967 RMK AO2 PK WND 18031/0038 SLP026 T02670061
TAF: KCDR 282342Z 2900/2924 17015G25KT P6SM VCTS SCT100CB OVC250 FM290200 17013KT P6SM SCT100 OVC250 FM290700 20008KT P6SM BKN100 FM291200 33010KT P6SM VCSH SCT025 OVC100 FM291500 35012G22KT P6SM VCSH BKN025

Location

Latitude:
42-50-15.2077N (42.837558)
Longitude:
103-05-43.4469W (-103.095402)
Elevation:
3297.8 feet MSL (1005 m MSL)
Magnetic Variation:
7.1 E (as of September 2021 from WMM2020 model)
Time Zone:
UTC -7.0 (Standard Time)
UTC -6.0 (Daylight Savings Time)
From City:
04 N.M. W of Chadron, Nebraska
Found On:
Cheyenne Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
MR. GREG YANKER
P.O. BOX 390
CHADRON, NE 69337-0390
308-432-0505
CITY OF CHADRON
P.O. BOX 390
CHADRON, NE 69337-0390
308-432-0505

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1940
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0800-1600
Boundary ARTCC:
ZDV (Denver)
Responsible ARTCC:
ZDV (Denver)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
4298 feet (1310 m)
NOTAMs Facility:
CDR
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  13

Annual Operations (as of 06/22/2020)

Total Operations:  7665
Commercial:  1249 16.3%
Air Taxi:  667 8.7%
GA Local:  2376 31.0%
GA Itinerant:  2913 38.0%
Military Aircraft:  460 6.0%

Communications

CTAF:  122.800
Unicom:  122.800
ASOS:  118.05 (308-432-5574)

  • APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 127.95/338.2 (CRAWFORD RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 308

Business Name Frequency Phone Fuel Grade
L & D Aero Service

Unicom 122.8 432-4053 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 09/09/21 to 0901Z 10/07/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP ILS OR LOC RWY 03 NC-2
IAP NDB RWY 21 NC-2
IAP RNAV (GPS) RWY 03 NC-2
IAP RNAV (GPS) RWY 12 NC-2
IAP RNAV (GPS) RWY 21 NC-2
IAP RNAV (GPS) RWY 30 NC-2
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near CDR

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
34.3 Hot Springs Municipal Airport
(KHSR HSR)
338 331 100LL
40.5 Gordon Municipal Airport
(GRN KGRN GRN)
92 86 100LL
48.8 Alliance Municipal Airport
(AIA KAIA AIA)
164 157 100LL, Jet A
57.9 Lusk Municipal Airport
(LSK KLSK LSK)
265 257 100LL
61.9 Western Nebraska Regional/William B Heilig Field Airport
(BFF KBFF BFF)
201 194 100LL, Jet A
65.9 Torrington Municipal Airport
(TOR KTOR TOR)
225 217 100LL, Jet A
72.5 Rapid City Regional Airport
(RAP KRAP RAP)
1 354 100LL, Jet A
76.9 Grant County Airport
(1V2)
129 123 100LL
80.1 Camp Guernsey Airport
(KGUR GUR)
244 236 100LL, Jet A++
82.3 Mondell Field Airport
(ECS KECS ECS)
320 312 100LL, Jet A
93.7 Phifer Airfield Airport
(EAN KEAN EAN)
240 232 100ll, Jet A
95.7 Sturgis Municipal Airport
(49B)
352 345 100LL, Jet A
97.6 Philip Airport
(PHP KPHP PHP)
41 35 100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KCDR NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KCDR

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KCDR

Remarks

A110-1 COLD TEMPERATURE RESTRICTED AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -32C.
A110-2 FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A14 ROGER STEVENS ON SITE AIRPORT OPERATIONS SUPERVISOR. ARPT OFFICE 308-615-9007
A57-03 APCH RATIO 45:1 FM DSPLCD THR.
A70-FUEL-10 0LL FOR FUEL AFTER HRS CALL FBO PHONE 308-432-8128 ON CALL 24 HRS.
A81-APT ACTVT HIRL RY 03/21 & MIRL RY 12/30; REIL RY 21 & RY 30 ; PAPI RYS 12/30; VASI RYS 03/21; MALSR RY 03 - CTAF.

Runways

Runway Summary

Runways: 03/21
12/30
Longest Runway: 03/21 is 5998 ft (1828 m) long
Runways with an Instrument Approach: 03

CDR Airport Runway Details

Runway 03/21  5998 ft x 100 ft (1828 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 08/06/2010
Surface:  Concrete - Excellent condition -
Runway Pavement Class:  12 /R/B/W/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:  55.0
Dual Tandem Wheel Landing Gear:  90.0
Dual Dual Tandem Wheel Landing Gear:

Runway 03

Runway 21

Elevation:
3297.8 3268.7
Latitude:
42-49-58.7449N 42-50-47.2141N
Longitude:
103-06-01.1861W 103-05-14.9132W
True Magnetic Hdg.:
035 215
ILS Type:
ILS
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREE
Object Height:
19
Object Marked/Lighted?:
Distance from End:
359
Object Centerline Offset:
359 ft. left of centerline
Visual Glide Slope Indicators:
4-Box VASI On Left Side Of Runway 4-Box VASI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
No Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
61 41
Threshold Elevation:
3294.4 3269.3
Displaced Threshold:
289 498
Threshold Latitude:
42-50-01.0763N 42-50-43.1877N

Threshold Longitude:

103-05-58.9602W 103-05-18.7559W
Declared Distances
Take Off Run Avbl. (TORA):
5998 5998
Take Off Distance Avbl. (TODA):
5998 5998
Actual Stop Dist. Avbl. (ASDA):
5500 5500
Landing Dist. Avbl. (LDA):
5211 5500

Runway 12/30  4400 ft x 75 ft (1341 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 08/06/2010
Surface:  Concrete - Excellent condition -
Runway Pavement Class:  10 /R/B/W/T
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  21.0
Dual Wheel Landing Gear:  30.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 12

Runway 30

Elevation:
3293.7 3283.7
Latitude:
42-50-17.0546N 42-49-52.1720N
Longitude:
103-06-15.0022W 103-05-26.6066W
True Magnetic Hdg.:
125 305
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES ROAD
Object Height:
15 35
Object Marked/Lighted?:
Distance from End:
936 1400
Object Centerline Offset:
359 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
29 41
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
4400 4400
Take Off Distance Avbl. (TODA):
4400 4400
Actual Stop Dist. Avbl. (ASDA):
4400 4400
Landing Dist. Avbl. (LDA):
4400 4400

Services

Airframe Repair:
None
Powerplant Repair:
None
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

CDR Airport Sectional

Flight Planning
at skyvector.com

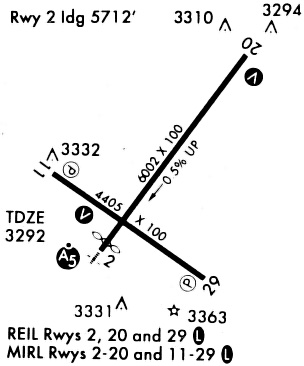

CDR Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
