Saturday 31 October 2020
UTC:   Local:
Saturday 31 October 2020     UTC:   Local:

Directions to AHD Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
34-08-49.1000N (34.146972)
Longitude:
097-07-21.6000W (-97.122667)
Elevation:
844.9 feet MSL (258 m MSL)
Magnetic Variation:
3.2 E (as of October 2020 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
01 N.M. SE of Ardmore, Oklahoma
Found On:
Dallas-Ft Worth Chart
FAA Region:
ASW

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
02/1950
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON-FRI/0800-1600
Boundary ARTCC:
ZFW (Fort Worth)
Responsible ARTCC:
ZFW (Fort Worth)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1845 feet (562 m)
NOTAMs Facility:
1F0
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  37
Multi Engine:  1
Jet Engine:  1

Annual Operations (as of 01/26/2018)

Total Operations:  12000
GA Local:  6500 54.2%
GA Itinerant:  5500 45.8%

Communications

CTAF:  122.700
Unicom:  122.700
AWOS-3:  118.15 (580-226-1536)

  • APCH/DEP SVC PRVDD BY FORT WORTH ARTCC ON FREQS 124.75/323.0 (ARDMORE RCAG).


Contacts

Manager:
Publicly owned:
CHASE TINDLE
620 GENERAL DR., SUITE 1
ARDMORE, OK 73401
(580) 389-5238
CITY OF ARDMORE
PO BOX 249
ARDMORE, OK 73402
580-226-2100

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 580

Business Name Frequency Phone Fuel Grade
Ardmore Aviation

Unicom 122.7 223-5500 100LL, Jet A
Litchfield Flying

223-5818, -9379
Versatile Aviation

223-1285, 800-762-1217
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Mc Alester(MLC)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 10/08/20 to 0901Z 11/05/20.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 17 SC-1
IAP RNAV (GPS) RWY 35 SC-1
MIN ALTERNATE MINIMUMS SC-1
MIN TAKEOFF MINIMUMS SC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Ardmore - Ardmore Downtown Executive (AHD) Airport Terminal Map

Terminal Map Not Available for this Airport

AHD Airport Sectional

Flight Planning
at skyvector.com

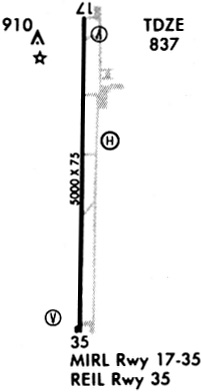

AHD Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near AHD

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
10.7 Ardmore Municipal Airport
(ADM KADM ADM)
28 25 100LL, Jet A
29.9 Gainesville Municipal Airport
(GLE KGLE GLE)
187 184 100LL, Jet A
34.1 Pauls Valley Municipal Airport
(KPVJ PVJ)
351 348 100LL, Jet A
34.2 North Texas Regional/Perrin Field Airport
(PNX KGYI GYI)
139 136 100LL, Jet A
38.3 Durant Regional - Eaker Field Airport
(DUA KDUA DUA)
108 105 100LL, Jet A
41.2 Sherman Municipal Airport
(KSWI SWI)
139 136 100LL
45.3 Ada Regional Airport
(ADT KADH ADH)
29 26 100LL, Jet A
45.8 Halliburton Field Airport
(DUC KDUC DUC)
295 291 100LL, Jet A
46.1 Bowie Municipal Airport
(0F2)
225 221 100LL, Jet A
50.6 Atoka Municipal Airport
(KAQR AQR)
72 69 100LL
56.8 Denton Enterprise Airport
(KDTO DTO)
183 180 100LL, Jet A
58.2 Decatur Municipal Airport
(KLUD LUD)
203 200 100LL, Jet A
62.9 David Jay Perry Airport
(1K4)
344 341 100LL
66.1 Northwest Regional Airport
(52F)
184 181 100LL
66.2 Holdenville Municipal Airport
(F99)
31 28 100LL
68.1 University Of Oklahoma Westheimer Airport
(OUN KOUN OUN)
345 342 100LL, Jet A
68.7 Sheppard AFB/Wichita Falls Municipal Airport
(SPS KSPS SPS)
262 258 100LL, Jet A
68.9 Lawton-Fort Sill Regional Airport
(LAW KLAW LAW)
291 287 100LL, Jet A-1+
68.9 Air Park-Dallas Airport
(F69)
167 164 100LL
70.1 Fort Worth Alliance Airport
(AFW KAFW AFW)
188 185 100LL, Jet A-1+

Notices to Airmen (NOTAMS)

NOTAMs

List ALL 1F0 NOTAMs

NOTAM Radius Search

NOTAMS within
NM of 1F0

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Ardmore Downtown Executive Airport Ratings

Category Aspect Rating
Overall Rating for Ardmore Downtown Executive Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 2.0/5 (1 vote cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 4.0/5 (1 vote cast)

On-time Performance
  • 2.0/5 (2 votes cast)

Business Services & Internet Airport Lounges
  • 4.0/5 (1 vote cast)

Business Centers
  • 2.0/5 (1 vote cast)

Airport Website (information & tools)
  • 3.0/5 (1 vote cast)

Availability of Internet Connectivity
  • 5.0/5 (1 vote cast)

Wireless Internet Access
  • 1.5/5 (2 votes cast)

General Facilities ATM Locations
  • 4.5/5 (2 votes cast)

Public Telephones
  • 4.0/5 (1 vote cast)

Restrooms
  • 3.0/5 (4 votes cast)

Architecture
  • 3.5/5 (2 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 2.5/5 (2 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 2.0/5 (1 vote cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 1.0/5 (1 vote cast)

Overall Comfort
  • 3.5/5 (2 votes cast)

Security Lines
  • 3.0/5 (2 votes cast)

Transportation & Parking Parking Availability
  • 2.0/5 (1 vote cast)

Parking Pricing
  • 4.0/5 (1 vote cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 1.0/5 (1 vote cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 4.0/5 (2 votes cast)

Proximity to City Center
  • 4.0/5 (1 vote cast)

Amenities Shopping (variety and number)
  • 4.0/5 (1 vote cast)

Restaurants & Bars (variety and number)
  • 2.0/5 (1 vote cast)

Restaurants & Bars (price/value)
  • 1.0/5 (1 vote cast)

Remarks

A110-1 FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A17 ON CALL NUMBER: 580-223-5500.
A43-35 UNUSBL BYD 8 DEGS LEFT OF CNTRLN.
A58-35 +10 FT HILL 0-200 FT FM RY END & 200 FT L.
A70 FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APT DUSK-DAWN. ACTVT REIL RWY 17 & 35; MIRL RWY 17/35. - CTAF.

Runways

AHD Airport Runway Summary

Runways: 17/35
Longest Runway: 17/35 is 5014 ft (1528 m) long
Runways with an Instrument Approach:

AHD Airport Runway Details

Runway 17/35  5014 ft x 75 ft (1528 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 02/11/2012
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  20.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
839.9 844.9
Latitude:
34-09-13.8813N 34-08-24.2890N
Longitude:
097-07-21.9810W 097-07-21.1191W
True Magnetic Hdg.:
179 359
ILS Type:
Glide Path Angle:
4.0 degrees 3.0 degrees
Traffic Pattern:
Left Right
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
POLE ROAD
Object Height:
58 18
Object Marked/Lighted?:
Lighted
Distance from End:
317 557
Object Centerline Offset:
165 ft. right of centerline 0 ft. left and right of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
62 61
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
Low Pressure
Fuel Available:
100LL, Jet A-1+
Parking:
Hangars and tiedowns available
