Cassville Municipal Airport

US Flag

Cassville Weather (°F)

Location

Latitude:
36-41-50.7000N (36.697417)
Longitude:
093-54-01.9000W (-93.900528)
Elevation:
1482.6 feet MSL (452 m MSL)
Magnetic Variation:
1 E (as of September 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
02 N.M. NW of Cassville, Missouri
Found On:
Kansas City Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
JUSTIN HENSON
300 S MAIN
CASSVILLE, MO 65625
417-847-4441
CITY OF CASSVILLE
300 MAIN ST
CASSVILLE, MO 65625
417-847-4441

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
Unattended
Boundary ARTCC:
ZKC (Kansas City)
Responsible ARTCC:
ZKC (Kansas City)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2483 feet (757 m)
NOTAMs Facility:
COU
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes

Based Aircraft

Single Engine:  15

Annual Operations (as of 12/31/2018)

Total Operations:  2545
Air Taxi:  50 2.0%
GA Local:  620 24.4%
GA Itinerant:  1875 73.7%

Communications

CTAF:  122.900
Approach:  SPRINGFIELD
124.95
Departure:  SPRINGFIELD
124.95



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 417

    Business Name Frequency Phone Fuel Grade
    Dale's Aircraft Service

    Unicom 122.9 847-4647 100LL, MOGAS
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Columbia(COU)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 09/09/21 to 0901Z 10/07/21.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP RNAV (GPS) RWY 09 NC-3
    IAP RNAV (GPS) RWY 27 NC-3
    MIN TAKEOFF MINIMUMS NC-3
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near 94K

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    13.6 Monett Regional Airport
    (KHFJ HFJ)
    336 335 100LL, Jet A
    18.7 Jerry Sumners Sr Aurora Municipal Airport
    (2H2)
    31 30 100LL
    21.9 Rogers Exec - Carter Field Airport
    (ROG KROG ROG)
    207 206 100LL, Jet A
    22.3 Mount Vernon Municipal Airport
    (2MO)
    1 0 100LL
    23.2 Carroll County Airport
    (4M1)
    144 143 100LL
    24.6 Neosho Hugh Robinson Airport
    (EOS KEOS EOS)
    286 285 100LL, Jet A-1+
    26.1 Bentonville Municipal/Louise M Thaden Field Airport
    (KVBT VBT)
    216 215 100LL, Jet A
    32.6 M Graham Clark Downtown Airport
    (PLK KPLK PLK)
    97 96 100LL, Jet A+
    33.0 Springdale Municipal Airport
    (SPZ KASG ASG)
    198 197 100LL, Jet A
    39.6 Joplin Regional Airport
    (JLN KJLN JLN)
    313 312 100LL, Jet A
    40.7 Grove Municipal Airport
    (KGMJ GMJ)
    262 260 100LL, Jet A, Jet A+
    41.0 Springfield-Branson Ntl Airport
    (SGF KSGF SGF)
    36 35 100LL, Jet A
    41.6 Smith Field Airport
    (SLG KSLG SLG)
    223 222 100LL, Jet A
    43.5 Drake Field Airport
    (FYV KFYV FYV)
    197 196 100LL, Jet A
    44.4 Downtown Airport
    (3DW)
    44 44 100LL, Jet A
    44.5 Boone County Airport
    (HRO KHRO HRO)
    125 125 100LL, Jet A
    49.1 Miami Regional Airport
    (MIO KMIO MIO)
    285 283 100LL, Jet A
    49.4 Cherokee Seaplane Base
    (4O6)
    262 260 100LL
    51.2 Lamar Municipal Airport
    (KLLU LLU)
    337 336 100LL, Jet A
    60.2 Atkinson Municipal Airport
    (PTS KPTS PTS)
    318 316 100LL, Jet A

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL 94K NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of 94K

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of 94K

    Remarks

    A110-1 100LL SELF SVC AVBL WITH CREDIT CARD ONLY.
    A110-2 FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
    A16 EVE PHONE # 417-342-2814
    A33-09/27 SVR FULL-DEPTH CRACKING 1-4' WIDE ENTR LEN OF RWY.
    A42-09 RWY 9 MKGS SVRLY FADED
    A42-27 RWY 27 MKGS SVRLY FADED.
    A81-APT ACTVT MIRL RWY 09/27 SS-SR CTAF. PAPI RWYS 09/27 OPRS 24 HRS.

    Runways

    Runway Summary

    Runways: 09/27
    Longest Runway: 09/27 is 3599 ft (1097 m) long
    Runways with an Instrument Approach:

    94K Airport Runway Details

    Runway 09/27  3599 ft x 60 ft (1097 m x 18 m)
    Runway Length Source:  3RD PARTY SURVEY as of 11/11/2011
    Surface:  Asphalt - Poor condition -
    Runway Pavement Class:
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  8.0
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 09

    Runway 27

    Elevation:
    1479.4 1471.5
    Latitude:
    36-41-50.5584N 36-41-50.7588N
    Longitude:
    093-54-23.9872W 093-53-39.7955W
    True Magnetic Hdg.:
    090 270
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Poor Poor
    Arresting Device:
    Object at End:
    Object Height:
    Object Marked/Lighted?:
    Distance from End:
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    40 40
    Threshold Elevation:
    Displaced Threshold:
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    Take Off Distance Avbl. (TODA):
    Actual Stop Dist. Avbl. (ASDA):
    Landing Dist. Avbl. (LDA):

    Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    High Pressure / Low Pressure
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

    Maps & Diagrams

    94K Airport Sectional

    Flight Planning
    at skyvector.com

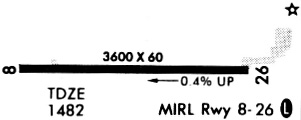

    94K Airport Diagram


    Do you have a better diagram of this Airport?
    Please share it with us.
