Bentonville Municipal/Louise M Thaden Field Airport

US Flag

Bentonville Weather (°F)

KVBT (0.1 NM at True Heading of 222)
METAR: KVBT 031056Z AUTO 00000KT 10SM OVC002 16/16 A3004 RMK AO2 SLP167 T01560156
TAF: N/A

Location

Latitude:
36-20-43.2070N (36.345335)
Longitude:
094-13-10.2120W (-94.219503)
Elevation:
1298.1 feet MSL (396 m MSL)
Magnetic Variation:
1.2 E (as of October 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
02 N.M. S of Bentonville, Arkansas
Found On:
Kansas City Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
CHUCK CHADWICK
117 WEST CENTRAL
BENTONVILLE, AR 72712
479-418-8675
CITY OF BENTONVILLE
117 WEST CENTRAL
BENTONVILLE, AR 72712
479-271-3112

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
09/1946
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
APR-SEP/ALL/0700-1900
Boundary ARTCC:
ZME (Memphis)
Responsible ARTCC:
ZME (Memphis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2298 feet (700 m)
NOTAMs Facility:
VBT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
No
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  42
Multi Engine:  4
Jet Engine:  1
GA Helicopters:  2

Annual Operations (as of 06/30/2019)

Total Operations:  32300
Air Taxi:  200 0.6%
GA Local:  21000 65.0%
GA Itinerant:  11000 34.1%
Military Aircraft:  100 0.3%

Communications

CTAF:  122.975
Unicom:  122.975
Approach:  RAZORBACK
121.0
121.0
121.0
121.0
MEMPHIS ARTCC
Departure:  RAZORBACK
121.0
121.0
121.0
121.0
MEMPHIS ARTCC
AWOS-3PT:  134.975 (479-273-9198)

  • APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS126.1/269.0 (FAYETTEVILLE RCAG) WHEN RAZORBACK APCH CTL CLSD.


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 501

Business Name Frequency Phone Fuel Grade
Benton County Air Service

Unicom 122.8 273-3113 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Jonesboro(JBR)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 10/07/21 to 0901Z 11/04/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
DP BENTON SIX SC-1
IAP RNAV (GPS) RWY 18 SC-1
IAP RNAV (GPS) RWY 36 SC-1
MIN ALTERNATE MINIMUMS SC-1
MIN TAKEOFF MINIMUMS SC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KVBT

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
5.7 Rogers Exec - Carter Field Airport
(ROG KROG ROG)
73 72 100LL, Jet A
11.2 Springdale Municipal Airport
(SPZ KASG ASG)
154 153 100LL, Jet A
16.0 Smith Field Airport
(SLG KSLG SLG)
234 233 100LL, Jet A
20.6 Drake Field Airport
(FYV KFYV FYV)
173 172 100LL, Jet A
26.1 Cassville Municipal Airport
(94K)
35 34 100LL
28.8 Carroll County Airport
(4M1)
85 84 100LL
29.1 Neosho Hugh Robinson Airport
(EOS KEOS EOS)
343 342 100LL, Jet A-1+
29.5 Grove Municipal Airport
(KGMJ GMJ)
302 300 100LL, Jet A, Jet A+
35.1 Monett Regional Airport
(KHFJ HFJ)
16 15 100LL, Jet A
36.6 Cherokee Seaplane Base
(4O6)
293 291 100LL
44.8 Jerry Sumners Sr Aurora Municipal Airport
(2H2)
34 33 100LL
45.5 Tahlequah Municipal Airport
(KTQH TQH)
237 235 100LL, Jet A
46.3 Mount Vernon Municipal Airport
(2MO)
20 19 100LL
46.7 Miami Regional Airport
(MIO KMIO MIO)
316 314 100LL, Jet A
50.3 Joplin Regional Airport
(JLN KJLN JLN)
344 343 100LL, Jet A
50.7 M Graham Clark Downtown Airport
(PLK KPLK PLK)
70 69 100LL, Jet A+
51.7 Boone County Airport
(HRO KHRO HRO)
95 95 100LL, Jet A
51.8 Tenkiller Lake Airpark Airport
(44M)
222 220 100LL
53.4 Ozark-Franklin County Airport
(7M5)
159 158 100LL
54.2 Mid-America Industrial Airport
(H71)
262 260 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KVBT NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KVBT

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KVBT

Remarks

A110-1 BEGINNING 60 FT BYD NORTH END OF RY 18 PAVEMENT, GND HAS APROXLY 12 FT DROP OVER 60 FT LENGTH TO POND.
A110-2 FOR CD CTC RAZORBACK APCH 479-649-2416, WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-3 MIGRATORY BIRDS ON & INVOF ARPT
A110-4 RWY 17/35 VFR DALGT OPNS ONLY.
A110-5 SIMUL USE OF RWYS 17/35 AND 18/36 NA.
A17 FOR SVC AFT HRS CALL 479-367-9800.
A42-18 MKGS FADED.
A42-36 MKGS FADED.
A48-18 REIL LGTS OTS INDEFLY
A48-36 REIL LGTS OTS INDEFLY
A57-18 APCH RATIO 50:1 TO DSPLCD THR.
A81-APT ACTVT MIRL RWY 18/36 - CTAF.

Runways

Runway Summary

Runways: 17/35
18/36
Longest Runway: 18/36 is 4426 ft (1349 m) long
Runways with an Instrument Approach:

KVBT Airport Runway Details

Runway 17/35  2448 ft x 75 ft (746 m x 23 m)
Runway Length Source:  FAA OE/AAA as of 09/04/2020
Surface:  Turf -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
1288.7 1292.5
Latitude:
36-20-55.8600N 36-20-31.6500N
Longitude:
094-13-11.2000W 094-13-11.4200W
True Magnetic Hdg.:
180 000
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
2448 2448
Take Off Distance Avbl. (TODA):
2448 2448
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 18/36  4426 ft x 65 ft (1349 m x 20 m)
Runway Length Source:  3RD PARTY SURVEY as of 10/12/2010
Surface:  Turf -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  12.5
Dual Wheel Landing Gear:  21.5
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 18

Runway 36

Elevation:
1289.3 1292.6
Latitude:
36-21-04.7835N 36-20-21.0229N
Longitude:
094-13-09.4068W 094-13-09.8031W
True Magnetic Hdg.:
180 000
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Poor Poor
Arresting Device:
Object at End:
BRUSH POLE
Object Height:
8 12
Object Marked/Lighted?:
Distance from End:
360 615
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
1289.2
Displaced Threshold:
230
Threshold Latitude:
36-21-02.5087N

Threshold Longitude:

094-13-09.4295W
Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
4196
Landing Dist. Avbl. (LDA):
4196 4196

Services

Airframe Repair:
None
Powerplant Repair:
None
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

KVBT Airport Sectional

Flight Planning
at skyvector.com

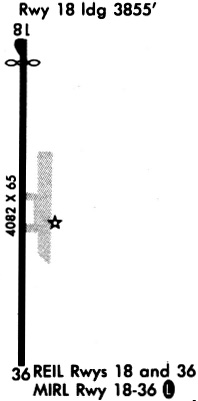

KVBT Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
