Rolla Ntl Airport

US Flag

Rolla/Vichy Weather (°F)

KVIH (0.1 NM at True Heading of 296)
METAR: KVIH 141753Z AUTO 32009KT 10SM CLR 29/22 A2998 RMK AO2 SLP138 T02940217 10300 20217 58002
TAF: N/A

Location

Latitude:
38-07-38.7460N (38.127429)
Longitude:
091-46-10.2500W (-91.769514)
Elevation:
1147.8 feet MSL (350 m MSL)
Magnetic Variation:
0.6 W (as of August 2022 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
11 N.M. N of Rolla/Vichy, Missouri
Found On:
Kansas City Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
DARRIN BACON
631 AIRPORT DRIVE
VICHY, MO 65580
573-299-4498
CITY OF ROLLA
901 N. ELM ST., PO BOX 979
ROLLA, MO 65401
573-426-6948

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
02/1944
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON-FRI/0600-1700
Boundary ARTCC:
ZKC (Kansas City)
Responsible ARTCC:
ZKC (Kansas City)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude (MSL):
2148 feet (655 m)
NOTAMs Facility:
VIH
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  59
Multi Engine:  8
Jet Engine:  2
Gliders:  1

Annual Operations (as of 12/31/2019)

Total Operations:  35500
Air Taxi:  2000 5.6%
GA Local:  16000 45.1%
GA Itinerant:  15000 42.3%
Military Aircraft:  2500 7.0%

Communications

CTAF:  123.000
Unicom:  123.000
ASOS:  119.025 (573-299-4419)

  • APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 128.35/284.675 (MAPLES RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 573

Business Name Frequency Phone Fuel Grade
Rolla National Airport

Unicom 123.0 299-4498 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:
FSS Name (ID):  Columbia(COU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 07/14/22 to 0901Z 08/11/22.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 04 NC-3
IAP RNAV (GPS) RWY 22 NC-3
IAP VOR RWY 22 NC-3
IAP VOR/DME RWY 04 NC-3
MIN ALTERNATE MINIMUMS NC-3
MIN TAKEOFF MINIMUMS NC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near VIH

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
0.0 Rolla Ntl Airport
(VIH KVIH VIH)
0 1 100LL, Jet A
29.2 Sullivan Regional Airport
(KUUV UUV)
77 78 100LL, Jet A
31.7 Salem Meml Airport
(K33)
165 166 100LL
33.2 Jefferson City Meml Airport
(JEF KJEF JEF)
326 326 100LL, Jet A
36.9 Lee C Fine Meml Airport
(AIZ KAIZ AIZ)
267 267 100LL, Jet A
43.0 Grand Glaize-Osage Beach Airport
(OSB K15)
268 268 100LL, Jet A
44.0 Elton Hensley Meml Airport
(KFTT FTT)
345 346 100LL
44.5 Camdenton Meml-Lake Regional Airport
(KOZS OZS)
258 258 100LL, Jet A+
45.8 Washington Regional Airport
(KFYG FYG)
52 53 100LL, Jet A+
46.5 Columbia Regional Airport
(COU KCOU COU)
333 333 100LL, Jet A
48.8 Houston Meml Airport
(M48)
191 191 100LL
50.7 Floyd W Jones Lebanon Airport
(KLBO LBO)
235 235 100LL, Jet A-1+
55.1 Roy Otten Meml Airfield Airport
(VRS 3VS)
289 289 100LL
55.6 Wehrman Airport
(4MO1)
17 18 100LL, MOGAS
61.5 Cabool Meml Airport
(KTVB TVB)
194 194 100LL, MOGAS
61.6 Spirit Of St Louis Airport
(SUS KSUS SUS)
58 60 100LL, Jet A
61.8 Mexico Meml Airport
(KMYJ MYJ)
357 358 100LL, Jet A, MOGAS
65.2 Jesse Viertel Meml Airport
(KVER VER)
319 319 100LL, Jet A
65.4 Festus Meml Airport
(KFES FES)
86 88 100LL, Jet A
65.6 Mountain Grove Meml Airport
(1MO)
203 203 100LL, Jet A, MOGAS

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KVIH NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KVIH

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KVIH

Remarks

A110-1 144 FT WATER TOWER LCTD 2000 FT NNE OF RWY 13 THLD.
A110-3 RADIO CONTROLLED MODEL AIRPLANES INVOF ARPT.
A110-4 HELI PARKING ON SE CORNER OF APRON.
A110-5 WILDLIFE ON & INVOF ARPT.
A110-6 270 FT ANTENNA TOWER 1.5 MILES SE OF RWY 31 THLD
A110-7 CLSD RWY UNUSBL AS TWY.
A110-8 FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
A57-04 APCH RATIO TO DSPLCD THLD 29:1; DSPLCD THLD 1 FT LOWER THAN RY END.
A71 AIRFRAME & PWR PLANT RPRS EMERG ONLY.
A81-APT ACTVT PAPI RWY 04; VASI RWY 22; MIRL RWY 04/22 AND RWY 13/31 - CTAF.

Runways

Runway Summary

Runways: 04/22
13/31
Longest Runway: 13/31 is 5501 ft (1677 m) long
Runways with an Instrument Approach:

VIH Airport Runway Details

Runway 04/22  5500 ft x 100 ft (1676 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 02/24/2021
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  75.0
Dual Wheel Landing Gear:  85.0
Dual Tandem Wheel Landing Gear:  130.0

Runway 04

Runway 22

Elevation:
1137.1 1109.1
Latitude:
38-07-29.3020N 38-08-06.6831N
Longitude:
091-46-35.9846W 091-45-46.0052W
True Magnetic Hdg.:
047 227
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Fair
Object at End:
ROAD TREE
Object Height:
20 22
Distance from End:
435 500
Object Centerline Offset:
270 ft. left and right of centerline 69 ft. right of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Box VASI On Left Side Of Runway
REIL:
No No
Threshold Crossing Height:
40 52
Threshold Elevation:
1135.6
Displaced Threshold:
211
Threshold Latitude:
38-07-30.7336N

Threshold Longitude:

091-46-34.0710W

Runway 13/31  5501 ft x 100 ft (1677 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 02/24/2021
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  48.0
Dual Wheel Landing Gear:  62.0
Dual Tandem Wheel Landing Gear:  92.0

Runway 13

Runway 31

Elevation:
1136.5 1147.8
Latitude:
38-07-49.2347N 38-07-09.7632N
Longitude:
091-46-33.1789W 091-45-45.8319W
True Magnetic Hdg.:
137 317
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Fair Fair
Object Centerline Offset:
270 ft. left and right of centerline 69 ft. right of centerline

Services

Airframe Repair:
Minor
Powerplant Repair:
Major
Fuel Available:
100LL, Jet A, MOGAS
Landing Fees:
No
Parking:
Tiedowns available

Maps & Diagrams

VIH Sectional

Flight Planning
at skyvector.com

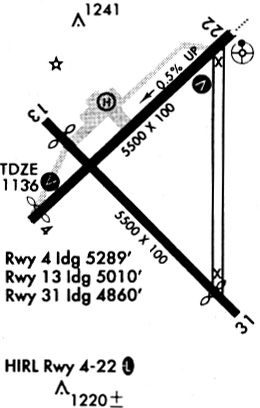

VIH Diagram


Do you have a better diagram of this ?
Please share it with us.
