Gothenburg Municipal Airport

US Flag

Gothenburg Weather (°F)

Location

Latitude:
40-55-31.7400N (40.925483)
Longitude:
100-08-47.6500W (-100.146569)
Elevation:
2558.8 feet MSL (780 m MSL)
Magnetic Variation:
5.2 E (as of June 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
01 N.M. E of Gothenburg, Nebraska
Found On:
Omaha Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
GREGORY M. MATTHIES
P.O. BOX 267
GOTHENBURG, NE 69138-0267
308-537-2384
GOTHENBURG AIRPORT AUTHORITY
P.O. BOX 267
GOTHENBURG, NE 69138-0267
(308) 529-2594

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
11/1948
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON-FRI/DALGT
Boundary ARTCC:
ZDV (Denver)
Responsible ARTCC:
ZDV (Denver)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
3559 feet (1085 m)
NOTAMs Facility:
OLU
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  16

Annual Operations (as of 08/09/2018)

Total Operations:  600
GA Local:  240 40.0%
GA Itinerant:  360 60.0%

Communications

CTAF:  122.800
Unicom:  122.800

  • APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (NORTH PLATTE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 308

Business Name Frequency Phone Fuel Grade
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 06/17/21 to 0901Z 07/15/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 03 NC-2
IAP RNAV (GPS) RWY 21 NC-2
IAP VOR-A NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KGTE

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KGTE NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KGTE

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KGTE

Remarks

A11 CHAIRMAN OF ARPT AUTH; ROGER TEDERMAN
A110-1 RY 14/32 NOT PLOWED WINTER MONTHS.
A110-2 MIGRATORY BIRDS IN AREA IN SPRING AND FALL
A110-3 FOR CD CTC DENVER ARTCC AT 303-651-4257.
A70 100LL AVAILABLE 24/7 WITH CREDIT CARD.
A81-APT ACTVT MIRL RY 03/21 - CTAF.
E111 EXISTED PRIOR TO 1959.

Runways

Runway Summary

Runways: 03/21
14/32
Longest Runway: 14/32 is 3300 ft (1006 m) long
Runways with an Instrument Approach:

KGTE Airport Runway Details

Runway 03/21  2599 ft x 50 ft (792 m x 15 m)
Runway Length Source:  NGS as of 07/31/1997
Surface:  Concrete - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  28.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 03

Runway 21

Elevation:
2556.0 2558.8
Latitude:
40-55-24.5033N 40-55-44.6222N
Longitude:
100-09-04.4424W 100-08-43.4132W
True Magnetic Hdg.:
038 218
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
RR ROAD
Object Height:
25 19
Object Marked/Lighted?:
Distance from End:
715 353
Object Centerline Offset:
30 ft. left of centerline 273 ft. right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
2556.0
Displaced Threshold:
70
Threshold Latitude:
40-55-25.0447N

Threshold Longitude:

100-09-03.8766W
Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 14/32  3300 ft x 150 ft (1006 m x 46 m)
Runway Length Source:  as of
Surface:  Concrete - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
2555.0 2555.0
Latitude:
40-55-43.4400N 40-55-15.6000N
Longitude:
100-08-53.9000W 100-08-31.5200W
True Magnetic Hdg.:
149 329
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
ROAD
Object Height:
17
Object Marked/Lighted?:
Distance from End:
378
Object Centerline Offset:
30 ft. left of centerline 273 ft. right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
None
Powerplant Repair:
None
Fuel Available:
100LL
Landing Fees:
No
Parking:
Tiedowns available

Maps & Diagrams

KGTE Airport Sectional

Flight Planning
at skyvector.com

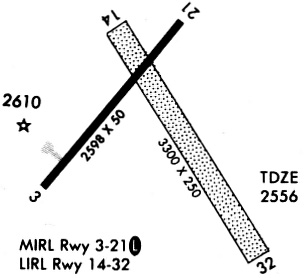

KGTE Airport Diagram
