Evelyn Sharp Field Airport

US Flag

ICAO: KODX

FAA: ODX

Ord Weather (°F)

KODX (0.1 NM at True Heading of 107)
METAR: KODX 291053Z AUTO 03011KT 10SM FEW120 M07/M11 A3025 RMK AO2 SLP260 T10671106
TAF: N/A

Location

Latitude:
 41-37-25.3000N (41.623694)
Longitude:
 098-57-06.7000W (-98.951861)
Elevation:
 2070.0 feet MSL (631 m MSL)
Magnetic Variation:
 4.3 E (as of March 2023 from WMM2020 model)
Time Zone:
 UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
 02 N.M. NW of Ord, Nebraska
Found On:
 Omaha Chart
FAA Region:
 ACE

Contacts

Manager:
Publicly owned:
DAVE WILLIAMS
81385 HIGHWAY 11
ORD, NE 68862-5354
308-750-5126		 VALLEY COUNTY AIRPORT AUTHORITY
81385 HIGHWAY 11
ORD, NE 68862-5354
(308) 750-5126

Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Activation Date:
 01/1947
Control tower:
 No
Attendance (Months/Days/Hours):
 Months/Days/Hours
ALL/ALL/0800-1700
Boundary ARTCC:
 ZMP (Minneapolis)
Responsible ARTCC:
 ZMP (Minneapolis)
Lighting Schedule:
 SEE RMK
Segmented Circle Indicator:
 Yes
Traffic Pattern Altitude (MSL):
 3070 feet (936 m)
NOTAMs Facility:
 ODX
NOTAM-D Service:
 Yes
International Airport of Entry:
 No
Customs Landing Rights:
 No
Military Landing Rights:
 Yes
Civil/Military Joint Use:
 No

Based Aircraft

Single Engine:  11
Multi Engine:  1

Annual Operations (as of 06/08/2021)

Total Operations:  8300
GA Local:  6700 80.7%
GA Itinerant:  1600 19.3%

Communications

CTAF:  122.800
Unicom:  122.800
ASOS:  119.925 (308-728-7954)

  • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 119.4/278.8 (HASTINGS RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 308
Business Name Frequency Phone Fuel Grade
Williams Flying Service
   		Unicom 122.8 728-3913 100LL, MOGAS
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 03/23/23 to 0901Z 04/20/23.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP NDB RWY 13 NC-2
IAP RNAV (GPS) RWY 13 NC-2
IAP RNAV (GPS) RWY 31 NC-2
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KODX

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
17.5 Sargent Municipal Airport
(09K)		 272 268 100, 100LL
33.0 Broken Bow Municipal/Keith Glaze Field Airport
(BBW KBBW BBW)		 250 245 100LL, Jet A
48.9 Central Nebraska Regional Airport
(GRI KGRI GRI)		 143 139 100LL, Jet A
50.2 Antelope County Airport
(4V9)		 53 49 100LL
52.1 The O'neill Municipal-John L Baker Field Airport
(ONL KONL ONL)		 12 8 100LL, Jet A+
53.9 Kearney Regional Airport
(EAR KEAR EAR)		 182 178 100LL, Jet A
61.5 Aurora Municipal - Al Potter Field Airport
(KAUH AUH)		 135 131 100LL
62.3 Jim Kelly Field Airport
(LXN KLXN LXN)		 216 211 100LL, Jet A+
65.5 Hastings Municipal Airport
(HSI KHSI HSI)		 158 154 100LL, Jet A
65.6 Cozad Municipal Airport
(KCZD CZD)		 226 221 100LL, Jet A
66.5 Pioneer Village Field Airport
(0V3)		 179 175 100LL
70.4 Harvard State Airport
(08K)		 145 141 100LL
71.2 Norfolk Regional/Karl Stefan Meml Field Airport
(OFK KOFK OFK)		 71 68 100LL, Jet A
72.4 Brewster Field Airport
(HDE KHDE HDE)		 194 190 100LL, Jet A
73.1 Columbus Municipal Airport
(OLU KOLU OLU)		 97 94 100LL, Jet A
73.7 Ainsworth Regional Airport
(ANW KANW ANW)		 321 316 100LL, Jet A
74.1 York Municipal Airport
(KJYR JYR)		 125 122 100LL, Jet A
75.2 Thomas County Airport
(KTIF TIF)		 286 281 100LL, Jet A
83.5 North Platte Regional/Lee Bird Field Airport
(LBF KLBF LBF)		 249 244 100LL, Jet A
85.6 David City Municipal Airport
(93Y)		 105 102 100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KODX NOTAMs
View KODX NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KODX

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KODX

Remarks

A11 DON VANCURA, CHMN ARPT AUTH.
A110-1 FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17 FOR SVCS AFTER HRS 308-750-5126.
A52-35 DURING CROP SEASON CORN AT 120' MAKES APCH RATIO 15-1.
A57-13 RWY 31 CLNC SLP 29:1 FM DSPLCD THR
A58-13 RWY 13 4 FT FENCE 237 FT RIGHT
A70-FUEL-10 0LL SELF SVC FUEL AVBL 24 HR WITH CREDIT CARD.
A81-APT ACTVT REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.

Runways

Runway Summary

Runways: 13/31
17/35
Longest Runway: 13/31 is 4721 ft (1439 m) long
Runways with an Instrument Approach:

KODX Airport Runway Details

Runway 13/31  4721 ft x 75 ft (1439 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2007
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  8.0

Runway 13

Runway 31
Elevation:
 2070.0 2059.0
Latitude:
 41-37-44.7741N 41-37-11.2425N
Longitude:
 098-57-31.1839W 098-56-47.9914W
Runway True Alignment:
 136 316
Glide Path Angle:
 3.0 degrees 3.0 degrees
Traffic Pattern:
 Left Left
Runway Markings Type:
 Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Object at End:
 TREE POLE
Object Height:
 107 34
Distance from End:
 2820 797
Object Centerline Offset:
 270 ft. right of centerline 308 ft. right of centerline
Visual Glide Slope Indicators:
 2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
REIL:
 Yes Yes
Threshold Crossing Height:
 44 32
Threshold Elevation:
 2059.5
Displaced Threshold:
 220
Threshold Latitude:
 41-37-12.8050N

Threshold Longitude:

 098-56-50.0040W

Runway 17/35  2012 ft x 218 ft (613 m x 66 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2007

Runway 17

Runway 35
Elevation:
 2059.7 2059.6
Latitude:
 41-37-28.7668N 41-37-08.8970N
Longitude:
 098-57-00.1918W 098-56-59.8614W
Runway True Alignment:
 179 359
Glide Path Angle:
 0.0 degrees 0.0 degrees
Traffic Pattern:
 Left Left
Object at End:
 ROAD FENCE
Object Height:
 17 5
Distance from End:
 495 110
Object Centerline Offset:
 270 ft. right of centerline 308 ft. right of centerline

Services

Airframe Repair:
 None
Powerplant Repair:
 None
Bottled Oxygen:
 None
Bulk Oxygen:
 None
Fuel Available:
 100LL
Landing Fees:
 No
Parking:
 Tiedowns available

Maps & Diagrams

KODX Sectional

Flight Planning
at skyvector.com

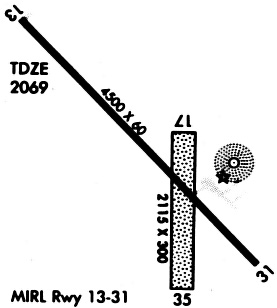

KODX Diagram


Do you have a better diagram of this ?
Please share it with us.
