Jim Kelly Field Airport

US Flag

Lexington Weather (°F)

KLXN (0.2 NM at True Heading of 137)
METAR: KLXN 041955Z AUTO 00000KT 10SM SCT031 25/18 A3006 RMK AO2 T02480181
TAF: N/A

Location

Latitude:
40-47-25.5250N (40.790424)
Longitude:
099-46-33.2910W (-99.775914)
Elevation:
2412.6 feet MSL (735 m MSL)
Magnetic Variation:
4.9 E (as of September 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
02 N.M. NW of Lexington, Nebraska
Found On:
Omaha Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
NATHAN MASTEN
1501 NORTH AIRPORT ROAD
LEXINGTON, NE 68850-3471
308-324-8770
LEXINGTON AIRPORT AUTHORITY
P.O. BOX 972
LEXINGTON, NE 68850-0972
308-324-8770

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
01/1946
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/SAT/0800-1200
Boundary ARTCC:
ZDV (Denver)
Responsible ARTCC:
ZDV (Denver)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
3413 feet (1040 m)
NOTAMs Facility:
LXN
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  20
Multi Engine:  1
GA Helicopters:  1
Gliders:  1

Annual Operations (as of 08/10/2018)

Total Operations:  10640
Air Taxi:  400 3.8%
GA Local:  8100 76.1%
GA Itinerant:  2100 19.7%
Military Aircraft:  40 0.4%

Communications

CTAF:  123.000
Unicom:  123.000
AWOS-3:  121.025 (308-324-5975)

  • APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (GRAND ISLAND WEST RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 308

Business Name Frequency Phone Fuel Grade
Wilson Flying Service

Unicom 123.0 324-5311 100LL
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 08/12/21 to 0901Z 09/09/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 14 NC-2
IAP RNAV (GPS) RWY 32 NC-2
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near LXN

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KLXN NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KLXN

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KLXN

Remarks

A110-1 RY 01/19 NOT PLOWED WINTER MONTHS.
A110-2 FOR CD CTC DENVER ARTCC AT 303-651-4257.
A52-19 CROPS MAY BE CTLG OBS DURING GROWING SEASON IN THE APCH.
A70-FUEL-A+ SELF SVC FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APT ACTVT REIL RY 14/32; MIRL RY 14/32; PAPI RYS 14/32 - CTAF.

Runways

Runway Summary

Runways: 01/19
14/32
Longest Runway: 14/32 is 5489 ft (1673 m) long
Runways with an Instrument Approach:

LXN Airport Runway Details

Runway 01/19  3200 ft x 250 ft (975 m x 76 m)
Runway Length Source:  as of
Surface:  Turf - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 01

Runway 19

Elevation:
2400.0 2406.0
Latitude:
40-47-07.0230N 40-47-37.0230N
Longitude:
099-46-31.4200W 099-46-18.4190W
True Magnetic Hdg.:
018 198
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
RR TREES
Object Height:
27 72
Object Marked/Lighted?:
Distance from End:
680 2215
Object Centerline Offset:
0 ft. left and right of centerline 85 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 14/32  5489 ft x 100 ft (1673 m x 30 m)
Runway Length Source:  NGS as of 07/21/1997
Surface:  Turf - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
2412.6 2403.3
Latitude:
40-47-49.2530N 40-47-05.8770N
Longitude:
099-46-59.5830W 099-46-16.7500W
True Magnetic Hdg.:
143 323
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
RR
Object Height:
24
Object Marked/Lighted?:
Distance from End:
960
Object Centerline Offset:
0 ft. left and right of centerline 85 ft. left of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
40 40
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
None
Powerplant Repair:
None
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

LXN Airport Sectional

Flight Planning
at skyvector.com

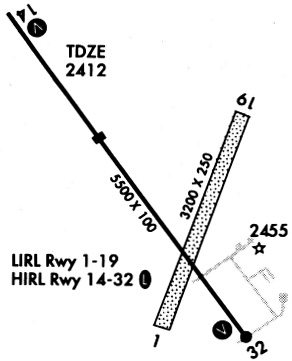

LXN Airport Diagram
