Shenandoah Municipal Airport

US Flag

Shenandoah Weather (°F)

KSDA (0.1 NM at True Heading of 54)
METAR: KSDA 121535Z AUTO 03004KT 10SM CLR 23/17 A3006 RMK AO2
TAF: N/A

Location

Latitude:
40-45-05.7140N (40.751587)
Longitude:
095-24-49.0470W (-95.413624)
Elevation:
971.1 feet MSL (296 m MSL)
Magnetic Variation:
2 E (as of July 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
03 N.M. SW of Shenandoah, Iowa
Found On:
Omaha Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
RANDY WAGNER
2033 MANTI ROAD
SHENANDOAH, IA 51601
712-246-1931
CITY OF SHENANDOAH
500 WEST CLARINDA
SHENANDOAH, IA 51601
712-246-4411

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1946
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON - SAT/0800-1700
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1971 feet (601 m)
NOTAMs Facility:
SDA
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  16

Annual Operations (as of 10/11/2017)

Total Operations:  3500
GA Local:  1510 43.1%
GA Itinerant:  1990 56.9%

Communications

CTAF:  122.800
Unicom:  122.800
Approach:  OMAHA
124.5
Departure:  OMAHA
124.5
AWOS-3:  125.525 (712-246-4021)



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 712

    Business Name Frequency Phone Fuel Grade
    Shenandoah Aviation, Inc.

    Unicom 122.8 246-1931 100LL, Jet A
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Fort Dodge(FOD)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 07/15/21 to 0901Z 08/12/21.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP RNAV (GPS) RWY 04 NC-3
    IAP VOR/DME RWY 12 NC-3
    MIN ALTERNATE MINIMUMS NC-3
    MIN TAKEOFF MINIMUMS NC-3
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near KSDA

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    17.1 Red Oak Municipal Airport
    (KRDK RDK)
    24 22 100LL, Jet A
    18.5 Gould Peterson Municipal Airport
    (K57)
    173 171 100LL
    22.4 Nebraska City Municipal Airport
    (KAFK AFK)
    247 245 100LL, Jet A
    25.7 Plattsmouth Municipal/Douglas V Duey Field Airport
    (KPMV PMV)
    297 295 100LL, Jet A
    27.8 Farington Field Airport
    (K01)
    218 216 100LL
    32.4 Browns Airport
    (EPG NE69)
    282 280 100LL
    32.9 Northwest Missouri Regional Airport
    (EVU KEVU EVU)
    136 134 100LL, Jet A+
    33.2 Corning Municipal Airport
    (KCRZ CRZ)
    63 62 100LL
    34.3 Council Bluffs Municipal Airport
    (CBF KCBF CBF)
    333 331 100LL, Jet A
    36.5 Rankin Airport
    (78Y)
    133 131 MOGAS
    39.6 Eppley Airfield Airport
    (OMA KOMA OMA)
    326 324 100LL, Jet A, Jet A+, Jet A-1, Jet A-1+
    41.2 Brenner Field Airport
    (KFNB FNB)
    191 189 100LL, Jet A
    41.4 Millard Airport
    (MIQ KMLE MLE)
    310 308 100LL, Jet A-1+
    42.5 Atlantic Municipal Airport
    (AIO KAIO AIO)
    22 20 100LL, Jet A
    46.2 North Omaha Airport
    (3NO)
    323 321 100LL
    50.1 Harlan Municipal Airport
    (KHNR HNR)
    3 1 100LL, Jet A
    50.7 Blair Municipal Airport
    (KBTA BTA)
    321 319 100LL, Jet A
    53.5 Sabetha Municipal Airport
    (K83)
    198 196 100LL
    55.8 Greenfield Municipal Airport
    (KGFZ GFZ)
    51 50 100LL
    61.0 Wahoo Municipal Airport
    (KAHQ AHQ)
    299 296 100LL, Jet A

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KSDA NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KSDA

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KSDA

    Remarks

    A11 AJ LYMAN- CITY MGR PHONE 712-246-4411.
    A110-2 RY 22 IS CALM WIND RY.
    A110-3 FOR CD CTC OMAHA APCH AT 402-682-4395.
    A17 FOR ATTENDANT AFT HRS CALL (712) 370-2367.
    A81-APT ACTVT MIRL RY 04/22; PAPI RYS 04 & 22; VASI RY 30; REIL RYS 04 & 22 - CTAF.

    Runways

    Runway Summary

    Runways: 04/22
    12/30
    Longest Runway: 04/22 is 5000 ft (1524 m) long
    Runways with an Instrument Approach:

    KSDA Airport Runway Details

    Runway 04/22  5000 ft x 75 ft (1524 m x 23 m)
    Runway Length Source:  3RD PARTY SURVEY as of 09/25/2011
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  30.0
    Dual Wheel Landing Gear:  38.0
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 04

    Runway 22

    Elevation:
    960.7 967.9
    Latitude:
    40-44-43.6008N 40-45-19.5737N
    Longitude:
    095-25-06.4134W 095-24-21.8804W
    True Magnetic Hdg.:
    043 223
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Fair Fair
    Arresting Device:
    Object at End:
    ROAD PLINE
    Object Height:
    33 17
    Object Marked/Lighted?:
    Distance from End:
    1355 900
    Object Centerline Offset:
    0 ft. left and right of centerline 0 ft. left and right of centerline
    Visual Glide Slope Indicators:
    2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    35 33
    Threshold Elevation:
    Displaced Threshold:
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    Take Off Distance Avbl. (TODA):
    Actual Stop Dist. Avbl. (ASDA):
    Landing Dist. Avbl. (LDA):

    Runway 12/30  3439 ft x 75 ft (1048 m x 23 m)
    Runway Length Source:  STATE as of 09/04/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Low Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  4.0
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 12

    Runway 30

    Elevation:
    952.2 969.4
    Latitude:
    40-45-21.4767N 40-45-01.9500N
    Longitude:
    095-25-14.4533W 095-24-37.8900W
    True Magnetic Hdg.:
    125 305
    ILS Type:
    Glide Path Angle:
    0.0 degrees 3.5 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    TREE
    Object Height:
    26
    Object Marked/Lighted?:
    Distance from End:
    434
    Object Centerline Offset:
    0 ft. left and right of centerline 0 ft. left and right of centerline
    Visual Glide Slope Indicators:
    4-Box VASI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    No
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    42
    Threshold Elevation:
    Displaced Threshold:
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    Take Off Distance Avbl. (TODA):
    Actual Stop Dist. Avbl. (ASDA):
    Landing Dist. Avbl. (LDA):

    Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

    Maps & Diagrams

    KSDA Airport Sectional

    Flight Planning
    at skyvector.com

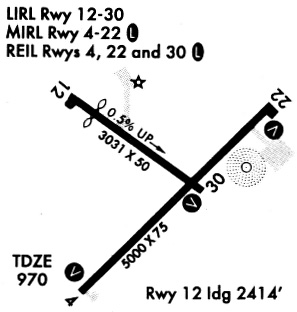

    KSDA Airport Diagram


    Do you have a better diagram of this Airport?
    Please share it with us.
