Airport Details

Directions to GFK Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×
  • Location

    Latitude:
    47-56-50.2000N (47.947278)
    Longitude:
    097-10-25.6000W (-97.173778)
    Elevation:
    844.6 feet MSL (257 m MSL)
    Magnetic Variation:
    3.1 E (as of September 2018 from WMM2015 model)
    Time Zone:
    UTC -6.0 (Standard Time)
    UTC -5.0 (Daylight Savings Time)
    From City:
    5 N.M. NW of Grand Forks, North Dakota
    Found On:
    Twin Cities Chart
    FAA Region:
    AGL
  • Airport Operations

    Airport Status:
    Operational
    Facility Use:
    Public
    Type:
    Airport
    Activation Date:
    12/1963
    Control tower:
    Yes
    Attendance (Months/Days/Hours):
    Months/Days/Hours
    ALL/ALL/ALL
    Boundary ARTCC:
    ZMP (Minneapolis)
    Lighting Schedule:
    SEE RMK
    Segmented Circle Indicator:
    No
    Beacon Color:
    White-Green (Lighted Land Airport)
    Traffic Pattern Altitude:
    1845 feet (562 m)
    NOTAMs Facility:
    GFK
    NOTAM-D Service:
    Yes
    International Airport of Entry:
    Yes
    Customs Landing Rights:
    Yes
    Military Landing Rights:
    Yes
    Civil/Military Joint Use:
    No
    Aircraft Rescue and Firefighting:
    Class I
    ARFF Index: B
    Air Carrier Service: Scheduled
    Certification Date: 05/1973

    Based Aircraft

    Single Engine:  102
    Multi Engine:  19
    Jet Engine:  2
    GA Helicopters:  8

    Annual Operations (as of 12/31/2017)

    Total Operations:  331885
    Commercial:  1029 0.3%
    Air Taxi:  105715 31.9%
    GA Local:  212325 64.0%
    GA Itinerant:  12634 3.8%
    Military Aircraft:  182 0.1%
  • Communications

    CTAF:  118.400
    Unicom:  122.950
    Tower:  GRAND FORKS
    118.4
    350.35

    120.55
    Hrs: 0600-2330
    Clearance Del.:  135.725
    Ground:  124.575
    Approach:  GRAND FORKS
    118.1
    MINNEAPOLIS ARTCC
    Departure:  GRAND FORKS
    118.1
    MINNEAPOLIS ARTCC
    ATIS:  119.4
    ASOS:  (701-772-3486)

    • WX AVBL ON ATIS WHEN ATCT CLSD.
    • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQ 132.15/269.6 (GRAND FORKS RCAG) WHEN GRAND FORKS (RDR) APCH CTL CLSD.
    • WHEN ATCT IS CLSD SNOW REMOVAL EQUIPMENT OPERATORS MONITOR CTAF.

  • Contacts

    Manager:
    Publicly owned:
    RYAN RIESINGER
    2301 AIRPORT DR
    GRAND FORKS, ND 58203
    701-795-6981
    GRAND FORKS REG ARPT AUTH
    2301 AIRPORT DRIVE
    GRAND FORKS, ND 58203
    701-795-6981
  • Fixed Based Operators (FBOs) & Fuel

    To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
    Click here to be taken to the FAA site where you can start the process to remove your name.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 701

    Business Name Frequency Phone Fuel Grade
    Avflight Grand Forks

    129.95 844-FUEL-GFK 100LL, Jet A, Jet A+
    GFK Flight Support

    Arinc 129.95 772-5504 100LL, Jet A
    To add, modify, or delete a business click here.

  • Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Grand Forks(GFK)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

  • Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 09/13/18 to 0901Z 10/11/18.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    APD AIRPORT DIAGRAM NC-1
    HOT HOT SPOT NC-1
    IAP ILS OR LOC RWY 35L NC-1
    IAP LOC BC RWY 17R NC-1
    IAP RNAV (GPS) RWY 09L NC-1
    IAP RNAV (GPS) RWY 17R NC-1
    IAP RNAV (GPS) RWY 27R NC-1
    IAP RNAV (GPS) RWY 35L NC-1
    IAP VOR RWY 17R NC-1
    IAP VOR RWY 35L NC-1
    LAH LAHSO NC-1
    MIN ALTERNATE MINIMUMS NC-1
    MIN TAKEOFF MINIMUMS NC-1
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
  • Maps

    Grand Forks - Grand Forks International (GFK) Airport Terminal Map

    Grand Forks - Grand Forks International (GFK) Airport Terminal Map - Overview
    To license this image, contact us.

    GFK Airport Sectional

    Flight Planning
    at skyvector.com

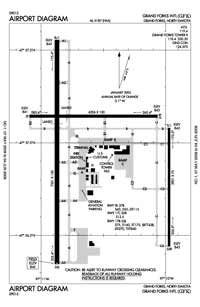

    GFK Airport Diagram

    Grand Forks International Airport (GFK) Diagram
    Do you have a better diagram of this Airport?
    Please share it with us.
  • METAR / TAF

    METAR

    TAF

  • Navigation Aids (Navaids) near GFK

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).
  • Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    23.1 Crookston Municipal Kirkwood Field Airport
    (CKN KCKN CKN)
    105 102 100LL, Jet A
    28.6 Hutson Field Airport
    (KGAF GAF)
    344 341 100LL, Jet A
    33.1 Stephen Municipal Airport
    (D41)
    21 18 100LL
    40.3 Thief River Falls Regional Airport
    (TVF KTVF TVF)
    79 77 100LL, Jet A, Jet A+
    53.4 Cavalier Municipal Airport
    (2C8)
    340 337 100LL, Jet A
    59.8 Pembina Municipal Airport
    (PMB KPMB PMB)
    357 354 100LL
    63.3 Hector International Airport
    (FAR KFAR FAR)
    166 163 100LL, Jet A, Jet A+, Jet A++, JP-8
    63.7 West Fargo Municipal Airport
    (D54)
    170 167 100LL
    66.3 Walhalla Municipal Airport
    (96D)
    334 330 100LL
    69.4 Barnes County Municipal Airport
    (KBAC BAC)
    209 205 100LL, Jet A
    69.6 Moorhead Municipal Airport
    (KJKJ JKJ)
    162 159 100LL, Jet A
    70.4 Devils Lake Regional Airport
    (DVL KDVL DVL)
    278 274 100LL, Jet A
    72.0 Hawley Municipal Airport
    (04Y)
    152 150 100LL
    78.9 Piney Pinecreek Border Airport
    (48Y)
    36 34 100LL
    80.2 Roseau Municipal/Rudy Billberg Field Airport
    (ROX KROX ROX)
    46 44 100LL, Jet A
    85.3 Detroit Lakes-Wething Field Airport
    (DTL KDTL DTL)
    141 139 100LL, Jet A
    86.3 Jamestown Regional Airport
    (JMS KJMS JMS)
    225 221 100LL, Jet A
    89.6 Pelican Rapids Municipal-Lyon's Field Airport
    (47Y)
    150 148 100LL, MOGAS
    93.9 Moberg Air Base Seaplane Base
    (96M)
    105 104 100LL, MOGAS
    94.0 Warroad International Memorial Airport
    (RRT KRRT RRT)
    49 48 100LL, Jet A
  • Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KGFK NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of KGFK

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:
  • Ratings & Reviews

    Grand Forks International Airport Ratings

    Category Aspect Rating
    Overall Rating for Grand Forks International Airport
    • 5.0/5 (1 vote cast)

    Flight Service Number of Flights
    • 5.0/5 (1 vote cast)

    Overall Number of Routes Served
    • 5.0/5 (1 vote cast)

    International Routes Served
    • 5.0/5 (1 vote cast)

    On-time Performance
    • 5.0/5 (1 vote cast)

    Business Services & Internet Airport Lounges
    • 5.0/5 (1 vote cast)

    Business Centers
    • 5.0/5 (1 vote cast)

    Airport Website (information & tools)
    • 3.5/5 (2 votes cast)

    Availability of Internet Connectivity
    • 3.5/5 (2 votes cast)

    Wireless Internet Access
    • 3.5/5 (2 votes cast)

    General Facilities ATM Locations
    • 5.0/5 (1 vote cast)

    Public Telephones
    • 5.0/5 (1 vote cast)

    Restrooms
    • 5.0/5 (1 vote cast)

    Architecture
    • 5.0/5 (1 vote cast)

    Terminal Layout
    • 3.5/5 (2 votes cast)

    Seating Areas
    • 5.0/5 (1 vote cast)

    Overall Cleanliness
    • 5.0/5 (1 vote cast)

    Children Play Areas
    • 3.5/5 (2 votes cast)

    Geographic Location
    • 3.5/5 (2 votes cast)

    Baggage Claim Locations
    • 5.0/5 (1 vote cast)

    Baggage Handling
    • 5.0/5 (1 vote cast)

    Overall Comfort
    • 5.0/5 (1 vote cast)

    Security Lines
    • 5.0/5 (1 vote cast)

    Transportation & Parking Parking Availability
    • 5.0/5 (1 vote cast)

    Parking Pricing
    • 4.0/5 (2 votes cast)

    Public Transport
    • 5.0/5 (1 vote cast)

    Car Rental
    • 5.0/5 (1 vote cast)

    Taxis
    • 5.0/5 (1 vote cast)

    Hotel Shuttles
    • 4.0/5 (2 votes cast)

    Proximity to City Center
    • 5.0/5 (1 vote cast)

    Amenities Shopping (variety and number)
    • 5.0/5 (1 vote cast)

    Restaurants & Bars (variety and number)
    • 5.0/5 (1 vote cast)

    Restaurants & Bars (price/value)
    • 3.5/5 (2 votes cast)

  • Remarks

    A110-1 HVY STUDENT TRNG ACTVTY WI 15 MI OF ARPT.
    A110-11 TWY G & TWY U CLSD TO FIXED WING ACFT 12,500 LBS & OVER.
    A110-12 WESTERN MOST 100 FT OF TWY C1 IS AN EXTENSION OF THE BRAVO APRON & NOT VSBL FR THE TWR.
    A110-15 RWYS 09R, 27L, 17L, 35R & TWY C, TWY E & TWY S NOT AVBL FOR UNSKED ACR WITH MORE THAN 30+ PAX SEATS.
    A110-16 RWYS 09R, 27L, 17L AND 35R CLOSED WHEN TWR CLSD.
    A110-17 RWY 09R, 27L, 17L, 35R AND TWY C NOT AVBL FOR SKEDD AIR CARRIER OPS WITH 10 OR MORE PAX SEATS.
    A110-2 BIRDS ON & INVOF ARPT.
    A110-4 LGTD ENTRANCE RD 1600' EAST OF RY 17R/35L.
    A110-5 CUSTOMS AVBL 24/7/365. YOU MUST SPEAK WITH AN OFFICER BEFORE ARRIVAL (USE PHONE OPTIONS) 701-772-3301 OR 701-772-6433.
    A110-8 PAEW 2330-0600 LOCAL
    A110-9 HVY STUDENT HELICOPTER TRAINING AT ARPT BTN PARALLEL TWYS.-
    A110-18 (CONTACT NAME) ARPT OPERATIONS & FACILITY MANAGER.
    A26 ARFF INDEX C SVCS AVBL WITH 24 HR PPR. CALL AMGR AT 701-795-6984.
    A81-APT ACTVT REIL RY 27R & RY 17R - CTAF. WHEN TWR CLSD ACTVT HIRL RY 17R/35L & MALSR RY 35L; MIRL RY 09L/27R - CTAF. VASI RY 27R, PAPI RY 9 L/R, 17L/R, 27L AND 35L/R OPR CONTINIOIUSLY.

  • Runways

    GFK Airport Runway Summary

    Runways: 09L/27R: 4206 ft (1282 m)
    09R/27L: 3300 ft (1006 m)
    17L/35R: 3901 ft (1189 m)
    17R/35L: 7351 ft (2241 m)
    H1: 60 ft (18 m)
    H10: 60 ft (18 m)
    H11: 60 ft (18 m)
    H12: 60 ft (18 m)
    H2: 60 ft (18 m)
    H3: 60 ft (18 m)
    H4: 60 ft (18 m)
    H5: 60 ft (18 m)
    H6: 60 ft (18 m)
    H7: 60 ft (18 m)
    H8: 60 ft (18 m)
    H9: 60 ft (18 m)
    Longest Runway: 17R/35L is 7351 ft (2241 m) long
    Runways with an Instrument Approach: 35L

    GFK Airport Runway Details

    Runway 09L/27R  4206 ft x 100 ft (1282 m x 30 m)
    Runway Length Source:  3RD PARTY SURVEY as of 03/03/2016
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:  24 /R/B/W/T
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  43.0
    Dual Wheel Landing Gear:  55.0
    Dual Tandem Wheel Landing Gear:  115.0
    Dual Dual Tandem Wheel Landing Gear:

    Runway 09L

    Runway 27R

    Elevation:
    841 843
    Latitude:
    47-57-08.6138N 47-57-08.6063N
    Longitude:
    097-11-05.7175W 097-10-03.9373W
    True Magnetic Hdg.:
    90 270
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Right
    Runway Markings Type:
    Basic Basic
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Box VASI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    39 45
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    4206 4206
    Take Off Distance Avbl. (TODA):
    4206 4206
    Actual Stop Dist. Avbl. (ASDA):
    4206 4206
    Landing Dist. Avbl. (LDA):
    4206 4206

    Runway 09R/27L  3300 ft x 60 ft (1006 m x 18 m)
    Runway Length Source:  3RD PARTY SURVEY as of 03/03/2016
    Surface:  Concrete - Good condition -
    Runway Pavement Class:  10 /R/C/W/T
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  12.5
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 09R

    Runway 27L

    Elevation:
    844 844
    Latitude:
    47-56-16.7743N 47-56-16.7492N
    Longitude:
    097-10-10.5298W 097-09-22.0631W
    True Magnetic Hdg.:
    90 270
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Right
    Runway Markings Type:
    None None
    Runway Markings Condition:
    Fair Fair
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    21 21
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    3300 3300
    Take Off Distance Avbl. (TODA):
    3300 3300
    Actual Stop Dist. Avbl. (ASDA):
    3300 3300
    Landing Dist. Avbl. (LDA):
    3300 3300

    Runway 17L/35R  3901 ft x 75 ft (1189 m x 23 m)
    Runway Length Source:  3RD PARTY SURVEY as of 03/03/2016
    Surface:  Concrete - Good condition -
    Runway Pavement Class:  9 /R/C/W/T
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  12.5
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 17L

    Runway 35R

    Elevation:
    842 843
    Latitude:
    47-57-04.8576N 47-56-26.3642N
    Longitude:
    097-09-58.3614W 097-09-58.4004W
    True Magnetic Hdg.:
    180 0
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Right
    Runway Markings Type:
    Basic Basic
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    21 21
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    3901 3901
    Take Off Distance Avbl. (TODA):
    3901 3901
    Actual Stop Dist. Avbl. (ASDA):
    3901 3901
    Landing Dist. Avbl. (LDA):
    3901 3901

    Runway 17R/35L  7351 ft x 150 ft (2241 m x 46 m)
    Runway Length Source:  3RD PARTY SURVEY as of 03/03/2016
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:  35 /R/C/W/T
    Runway Edge Lights:  High Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  75.0
    Dual Wheel Landing Gear:  160.
    Dual Tandem Wheel Landing Gear:  270.0
    Dual Dual Tandem Wheel Landing Gear:

    Runway 17R

    Runway 35L

    Elevation:
    843 845
    Latitude:
    47-57-33.2838N 47-56-20.7440N
    Longitude:
    097-10-52.4097W 097-10-52.4572W
    True Magnetic Hdg.:
    180 0
    ILS Type:
    ILS/DME
    Glide Path Angle:
    3.0 degrees 2.8 degrees
    Traffic Pattern:
    Right
    Runway Markings Type:
    Precision Instrument Precision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Rollout Touchdown
    Approach Light System:
    1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
    REIL:
    Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    53 61
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    7351 7351
    Take Off Distance Avbl. (TODA):
    7351 7351
    Actual Stop Dist. Avbl. (ASDA):
    7351 7351
    Landing Dist. Avbl. (LDA):
    7351 7351

    Helipad H1  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H1

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H10  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H10

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H11  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H11

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H12  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H12

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H2  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H2

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H3  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H3

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H4  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H4

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H5  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H5

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H6  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H6

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H7  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H7

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H8  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H8

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Helipad H9  60 ft x 60 ft (18 m x 18 m)
    Runway Length Source:  OWNER as of 08/06/2015
    Surface:  Concrete - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Helipad H9

    Elevation:
    0 0
    Latitude:
    Longitude:
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

  • Services

    Airframe Repair:
    None
    Powerplant Repair:
    None
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

© 1998-2018 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
