Hector International Airport

US Flag

METAR: KFAR 142353Z 15007KT 10SM CLR 29/07 A2994 RMK AO2 SLP135 T02890072 10300 20261 56013

TAF: KFAR 142324Z 1423/1524 VRB05KT P6SM SKC FM150600 13009KT P6SM VCSH BKN100 FM151200 14010G20KT P6SM BKN080 FM151600 17018G28KT P6SM BKN030 FM151900 16022G30KT P6SM BKN020

Reporting Station: KFAR (0.3 NM at True Heading of 36)
Visibility: 10+SM
Flight Category: VFR
Altimeter: 1014
Temperature: 28.9 C (84.02 F)
Dewpoint: 7.2 C (44.96 F)

Location

Latitude:
46-55-14.3000N (46.920639)
Longitude:
096-48-56.7000W (-96.81575)
Elevation:
901.3 feet MSL (275 m MSL)
Magnetic Variation:
2.6 E (as of June 2024 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
03 N.M. NW of Fargo, North Dakota
Found On:
Twin Cities Chart
FAA Region:
AGL

Contacts

Manager:
Publicly owned:
SHAWN DOBBERSTEIN
PO BOX 2845
FARGO, ND 58108
701-241-1501
MUNI ARPT AUTH OF THE CITY OF FARGO
PO BOX 2845
FARGO, ND 58108
701-241-1501

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
08/1937
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/ALL
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Segmented Circle Indicator:
No
Traffic Pattern Altitude (MSL):
1901 feet (579 m)
NOTAMs Facility:
FAR
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
Yes
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: C
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  128
Multi Engine:  49
Jet Engine:  28
GA Helicopters:  1
Military Aircraft:  11

Annual Operations (as of 08/31/2023)

Total Operations:  90450
Commercial:  11238 12.4%
Air Taxi:  24563 27.2%
GA Local:  25514 28.2%
GA Itinerant:  26161 28.9%
Military Aircraft:  2974 3.3%

Communications

Unicom:  122.950
Tower:  FARGO
133.8
290.4
Hrs: 24
Clearance Del.:  121.9
348.6
Ground:  121.9
348.6
Approach:  FARGO
120.4
377.15
Hrs: 24

125.125
370.85
Departure:  FARGO
120.4
377.15
Hrs: 24

125.125
370.85
ATIS:  124.5
379.2
Hrs: 24
ASOS:  (701-298-3877)
TRSA:  120.4
EMERG:  121.5
TRSA:  377.15
EMERG:  243.0



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 701

    Business Name Frequency Phone Fuel Grade
    Fargo Aero Tech
       Update FBO info
    237-5305
    Fargo Jet Center
       Update FBO info
    Unicom 122.95, Arinc 130.525 235-3600, 800-770-0538 100LL, Jet A
    Valley Aviation
       Update FBO info
    Unicom 122.95 237-6882, 800-279-8590 100LL, Jet A
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Grand Forks(GFK)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 06/13/24 to 0901Z 07/11/24.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    APD AIRPORT DIAGRAM NC-1
    HOT HOT SPOT NC-1
    IAP ILS OR LOC RWY 18 NC-1
    IAP ILS OR LOC RWY 36 NC-1
    IAP RNAV (GPS) RWY 09 NC-1
    IAP RNAV (GPS) RWY 18 NC-1
    IAP RNAV (GPS) RWY 27 NC-1
    IAP RNAV (GPS) RWY 36 NC-1
    IAP VOR RWY 36 NC-1
    LAH LAHSO NC-1
    MIN ALTERNATE MINIMUMS NC-1
    MIN TAKEOFF MINIMUMS NC-1
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near FAR

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KFAR NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KFAR

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KFAR

    Remarks

    A110-1 TWY B N OF TWY D RSTRD TO ACFT LESS THAN 130,000 LBS.
    A110-10 REMARKS: SEE FLIP AP/1 SUPPLEMENTARY ARPT INFO INCL BASH INFO.
    A110-13 CAUTION: USE EXTREME CAUTION FOR UAS OPS IN VCNTY.
    A110-14 ANG: BIRD HAZARD (BASH PHASE II) MAR-MAY, SEP-DEC.
    A110-3 FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE MON-FRI 0830-1700.
    A110-6 ANG-OFFL BUS ONLY CTC BASE OPS DSN 362-8508, C701-451-2508 OPR 1300-2230Z++ WKD, CLSD WKEND AND HOL EXC DUR SKED TRNG. OTHER TRAN ACFT CTC JET CNTR C701-235-3600; CSTMS AVBL 24 HR. RCR AVBL FR ANG OPS ON 262.0. RGT TFC RWY 18.
    A110-7 BIRDS ON AND INVOF ARPT.
    A26 INDEX E ARFF AVBL 2 HOURS PPR CTC 701-476-6790.
    A30-13/31 RWY 13/31 NOT AVBL FOR SKEDD ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKEDD ACR AT LEAST 31 PSGR SEATS.
    A38-18/36 AUW-847

    Runways

    Runway Summary

    Runways: 09/27
    13/31
    18/36
    Longest Runway: 18/36 is 9001 ft (2744 m) long
    Runways with an Instrument Approach: 18, 36

    FAR Seaplane Base Runway Details

    Runway 09/27  6302 ft x 100 ft (1921 m x 30 m)
    Runway Length Source:  3RD PARTY SURVEY as of 10/11/2015
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:  25 /R/C/W/T
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  60.0
    Dual Wheel Landing Gear:  100.0

    Runway 09

    Runway 27

    Elevation:
    896.2 898.6
    Latitude:
    46-55-37.6956N 46-55-37.1845N
    Longitude:
    096-49-38.3702W 096-48-07.5834W
    Runway True Alignment:
    090 270
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Good Good
    Object at End:
    POLE
    Object Height:
    25
    Object Marked/Lighted?:
    Lighted
    Distance from End:
    1086
    Object Centerline Offset:
    468 ft. left of centerline
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    REIL:
    Yes Yes
    Touchdown Lights:
    No
    Threshold Crossing Height:
    42 42
    Declared Distances
    Take Off Run Avbl. (TORA):
    6302 6302
    Take Off Distance Avbl. (TODA):
    6302 6302
    Actual Stop Dist. Avbl. (ASDA):
    6302 6302
    Landing Dist. Avbl. (LDA):
    6302 6302

    Runway 13/31  3801 ft x 75 ft (1159 m x 23 m)
    Runway Length Source:  3RD PARTY SURVEY as of 10/11/2015
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:  17 /R/D/W/T
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  26.0
    Dual Wheel Landing Gear:  35.0

    Runway 13

    Runway 31

    Elevation:
    901.3 898.5
    Latitude:
    46-54-50.8496N 46-54-23.2688N
    Longitude:
    096-49-17.3587W 096-48-40.2443W
    Runway True Alignment:
    137 317
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Basic Basic
    Runway Markings Condition:
    Good Good
    Object at End:
    ROAD ROAD
    Object Height:
    7 8
    Distance from End:
    550 432
    Object Centerline Offset:
    468 ft. left of centerline
    Visual Glide Slope Indicators:
    2-Light PAPI On Right Side Of Runway 2-Light PAPI On Left Side Of Runway
    Threshold Crossing Height:
    61 37
    Declared Distances
    Take Off Run Avbl. (TORA):
    3801 3801
    Take Off Distance Avbl. (TODA):
    3801 3801
    Actual Stop Dist. Avbl. (ASDA):
    3801 3801
    Landing Dist. Avbl. (LDA):
    3801 3801

    Runway 18/36  9001 ft x 150 ft (2744 m x 46 m)
    Runway Length Source:  3RD PARTY SURVEY as of 10/11/2015
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:  95 /R/C/W/T
    Runway Edge Lights:  High Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  100.0
    Dual Wheel Landing Gear:  200.0
    Dual Tandem Wheel Landing Gear:  400.0

    Runway 18

    Runway 36

    Elevation:
    899.8 899.3
    Latitude:
    46-55-58.3241N 46-54-29.4911N
    Longitude:
    096-48-57.9853W 096-48-59.0481W
    Runway True Alignment:
    180 000
    ILS Type:
    ILS ILS/DME
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Left
    Runway Markings Type:
    Precision Instrument Precision Instrument
    Runway Markings Condition:
    Good Good
    Object Centerline Offset:
    468 ft. left of centerline
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Right Side Of Runway
    Runway Visual Range (RVR):
    Touchdown, Rollout Touchdown, Rollout
    Approach Light System:
    1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights 1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
    Touchdown Lights:
    No No
    Threshold Crossing Height:
    68 71
    Declared Distances
    Take Off Run Avbl. (TORA):
    9001 9001
    Take Off Distance Avbl. (TODA):
    9001 9001
    Actual Stop Dist. Avbl. (ASDA):
    9001 9001
    Landing Dist. Avbl. (LDA):
    9001 9001

    Services

    Airframe Repair:
    None
    Powerplant Repair:
    None
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, MOGAS
    Landing Fees:
    No
    Parking:
    Tiedowns available

    Maps & Diagrams

    FAR Sectional

    Flight Planning
    at skyvector.com

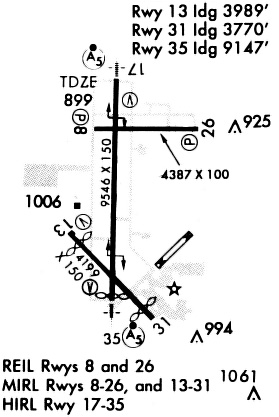

    FAR Diagram


    Do you have a better diagram of this ?
    Please share it with us.
