Directions to GLD Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
39-22-14.2590N (39.370628)
Longitude:
101-41-56.3450W (-101.698985)
Elevation:
3657.3 feet MSL (1115 m MSL)
Magnetic Variation:
6.2 E (as of December 2019 from WMM2015 model)
Time Zone:
UTC -7.0 (Standard Time)
UTC -6.0 (Daylight Savings Time)
From City:
2 N.M. N of Goodland, Kansas
Found On:
Wichita Chart
FAA Region:
ACE

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1940
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/DALGT
Boundary ARTCC:
ZDV (Denver)
Responsible ARTCC:
ZDV (Denver)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
4657 feet (1419 m)
NOTAMs Facility:
GLD
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  17
Multi Engine:  3
Jet Engine:  1

Annual Operations (as of 09/18/2022)

Total Operations:  43000
Air Taxi:  400 0.9%
GA Local:  10000 23.3%
GA Itinerant:  32000 74.4%
Military Aircraft:  600 1.4%

Communications

CTAF:  122.800
Unicom:  122.800
ASOS:  121.025 (785-899-6591)

  • APCH/DEP SVC PRVDD BY DENVER ARTCC ON FREQS 132.7/226.675 (GOODLAND RCAG).


Contacts

Manager:
Publicly owned:
SCOTT COLLETT
BUTTERFLY AVIATION, RENNER MUNICIPLE AIRPORT
GOODLAND, KS 67735
785-890-7531
CITY OF GOODLAND (WAYNE HILL)
P. O. BOX 57
GOODLAND, KS 67735
785-890-4500

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 785

Business Name Frequency Phone Fuel Grade
Butterfly Aviation, Inc.

Unicom 122.95 899-7531 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Wichita(ICT)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 12/05/19 to 0901Z 01/02/20.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM NC-2 Changed
IAP ILS OR LOC RWY 30 NC-2 Changed
IAP RNAV (GPS) RWY 12 NC-2 Changed
IAP RNAV (GPS) RWY 23 NC-2 Changed
IAP RNAV (GPS) RWY 30 NC-2 Changed
IAP VOR RWY 30 NC-2 Changed
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Goodland - Renner Field /Goodland Municipal/ (GLD) Airport Terminal Map

Terminal Map Not Available for this Airport

GLD Airport Sectional

Flight Planning
at skyvector.com

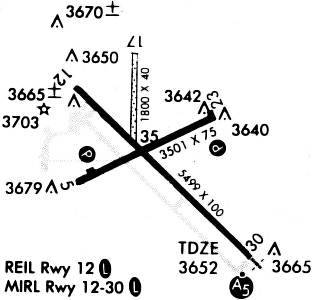

GLD Airport Diagram

Renner Field /Goodland Municipal/ Airport (GLD) Diagram
Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near GLD

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
0.0 Renner Field /Goodland Municipal/ Airport
(GLD KGLD GLD)
0 354 100LL, Jet A
23.7 Cheyenne County Municipal Airport
(KSYF SYF)
349 343 100LL
28.3 Kit Carson County Airport
(KITR ITR)
254 247 100LL, Jet A-1+
30.4 Shalz Field Airport
(CBK KCBK CBK)
83 77 100LL, Jet A-1
41.4 Atwood-Rawlins County City-County Airport
(KADT ADT)
46 40 100LL
43.9 Oakley Municipal Airport
(KOEL OEL)
110 104 100LL, Jet A
50.4 Wray Municipal Airport
(2V5)
330 323 100LL
57.1 Mark Hoard Memorial Airport
(3K7)
163 157 100LL
58.5 Hoxie-Sheridan County Airport
(1F5)
89 84 100LL
60.4 Oberlin Municipal Airport
(KOIN OIN)
62 56 100LL
64.3 Yuma Municipal Airport
(2V6)
313 306 100LL
65.8 Scott City Municipal Airport
(KTQK TQK)
144 138 100LL, Jet A
71.5 Mc Cook Ben Nelson Regional Airport
(MCK KMCK MCK)
45 39 100LL, Jet A
76.6 Holyoke Airport
(KHEQ HEQ)
340 333 100LL, Jet A
82.5 Holly Airport
(K08)
193 187 100LL
85.2 Colorado Plains Regional Airport
(AKO KAKO AKO)
305 298 100LL, Jet A-1
86.6 Hill City Municipal Airport
(HLC KHLC HLC)
89 84 100LL
90.0 Grant Municipal Airport
(KGGF GGF)
358 352 100LL
90.4 Cambridge Municipal Airport
(KCSB CSB)
51 46 100LL, Jet A
90.8 Lamar Municipal Airport
(LAA KLAA LAA)
210 203 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KGLD NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KGLD

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Renner Field /Goodland Municipal/ Airport Ratings

Category Aspect Rating
Overall Rating for Renner Field /Goodland Municipal/ Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 0.0/5 (0 votes cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 0.0/5 (0 votes cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 0.0/5 (0 votes cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 2.0/5 (1 vote cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 0.0/5 (0 votes cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 0.0/5 (0 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 0.0/5 (0 votes cast)

Security Lines
  • 0.0/5 (0 votes cast)

Transportation & Parking Parking Availability
  • 2.0/5 (1 vote cast)

Parking Pricing
  • 0.0/5 (0 votes cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 0.0/5 (0 votes cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Remarks

A110-1 TWY A2 ONLY AVBL FOR ACFT OVER 12500 LBS.
A110-2 FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A17 FOR SVC CALL 785-890-7531 (DAY) OR 785-443-1328 (NIGHT).
A30A-23 TURN-AROUND DOES NOT HAVE CLNC FOR HLDG.
A30A-30 CALM WIND RWY.
A42-17 17/35 YELLOW CONES MARKERS AT THR.
A43-05 PAPI UNUSBL BYD 8 DEGS L OF CNTRLN.
A58-23 4 FT FENCE CORNER 190 FT FROM THR 100 FT L CNTRLN.
A81-APT ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.

Runways

GLD Airport Runway Summary

Runways: 05/23
12/30
17/35
Longest Runway: 12/30 is 5499 ft (1676 m) long
Runways with an Instrument Approach: 30

GLD Airport Runway Details

Runway 05/23  3502 ft x 75 ft (1067 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2016
Surface:  Asphalt - Good condition -
Runway Pavement Class:  5 /F/C/Y/U
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  12.5
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 05

Runway 23

Elevation:
3657 3637
Latitude:
39-22-06.6642N 39-22-22.3417N
Longitude:
101-42-18.5970W 101-41-38.8569W
True Magnetic Hdg.:
63 243
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
ROAD
Object Height:
15 0
Object Marked/Lighted?:
Distance from End:
698 0
Object Centerline Offset:
0 ft. left and right of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
36 39
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Runway 12/30  5499 ft x 100 ft (1676 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2016
Surface:  Asphalt - Good condition -
Runway Pavement Class:  11 /R/C/X/U
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:  48.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 12

Runway 30

Elevation:
3646 3653
Latitude:
39-22-29.0003N 39-21-51.0024N
Longitude:
101-42-18.2835W 101-41-28.2339W
True Magnetic Hdg.:
134 314
ILS Type:
ILS/DME
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
BLDG
Object Height:
6 0
Object Marked/Lighted?:
Distance from End:
425 0
Object Centerline Offset:
0 ft. left and right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Runway 17/35  1754 ft x 40 ft (535 m x 12 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/17/2016
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
3640 3643
Latitude:
39-22-35.7818N 39-22-18.4477N
Longitude:
101-42-01.3382W 101-42-01.1998W
True Magnetic Hdg.:
180 360
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
TOWER
Object Height:
0 88
Object Marked/Lighted?:
Distance from End:
0 1746
Object Centerline Offset:
0 ft. left and right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
High Pressure
Bulk Oxygen:
High Pressure
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

© 1998-2019 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
