Arkansas International Airport

US Flag

IATA: BYH

ICAO: KBYH

FAA: BYH


View AFD

View Notices

Location

Latitude:
 35-57-51.6000N (35.964333)
Longitude:
 089-56-38.2000W (-89.943944)
Elevation:
 254.1 feet MSL (77 m MSL)
Magnetic Variation:
 2 W (as of October 2024 from WMM2020 model)
Time Zone:
 UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
 03 N.M. NW of Blytheville, Arkansas
Found On:
 Memphis Chart
FAA Region:
 ASW

Contacts

Manager:
Publicly owned:
TODD RILEY
4701 MEMORIAL DRIVE
BLYTHEVILLE, AR 72315
870-532-5628		 GOSNELL REG AIRPORT AUTHORITY
4701 MEMORIAL DRIVE
BLYTHEVILLE, AR 72315-0166
870-532-2100

Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Activation Date:
 10/1943
Control tower:
 No
Attendance (Months/Days/Hours):
 Months/Days/Hours
ALL/MON-FRI/0800-1700
Boundary ARTCC:
 ZME (Memphis)
Responsible ARTCC:
 ZME (Memphis)
Lighting Schedule:
 SEE RMK
Segmented Circle Indicator:
 Yes
Traffic Pattern Altitude (MSL):
 1254 feet (382 m)
NOTAMs Facility:
 BYH
NOTAM-D Service:
 Yes
Military Landing Rights:
 Yes
Civil/Military Joint Use:
 No

Based Aircraft

Annual Operations (as of )

Communications

CTAF:  122.700
Unicom:  122.700

  • APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 134.65/316.15 (MCKELLAR RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 870
Business Name Frequency Phone Fuel Grade
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Jonesboro(JBR)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 09/05/24 to 0901Z 10/03/24.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP ILS OR LOC RWY 18 SC-1
IAP RNAV (GPS) RWY 18 SC-1
IAP RNAV (GPS) RWY 36 SC-1
MIN TAKEOFF MINIMUMS SC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near BYH

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
5.7 Blytheville Municipal Airport
(HKA KHKA HKA)		 104 106 100LL, Jet A
11.1 Manila Municipal Airport
(MXA KMXA MXA)		 247 249 100LL
16.3 Kennett Meml Airport
(KNT KTKX TKX)		 344 346 100LL, Jet A
16.7 Osceola Municipal Airport
(7M4)		 191 193 100LL
18.8 Mid Continent Airport
(M28)		 33 35 100LL, Jet A
26.2 Dyersburg Regional Airport
(KDYR DYR)		 85 87 100LL, Jet A+
28.1 Kirk Field Airport
(PGR KPGR PGR)		 282 284 100LL, Jet A
28.7 Covington Municipal Airport
(M04)		 142 144 100LL, Jet A+
35.1 Jonesboro Municipal Airport
(JBR KJBR JBR)		 257 259 100LL, Jet A
36.6 Millington/Memphis Airport
(NQA KNQA NQA)		 174 176 100LL, Jet A+
38.1 County Meml Airport
(KEIW EIW)		 25 27 100LL
38.1 Malden Regional Airport
(MAW KMAW MAW)		 356 358 100LL, Jet A-1+
41.2 Charles W Baker Airport
(2M8)		 179 181 100LL, Jet A+
46.1 General Dewitt Spain Airport
(M01)		 186 188 100LL, Jet A+
48.6 Walnut Ridge Regional Airport
(ARG KARG ARG)		 281 282 100LL, Jet A
48.7 Dexter Municipal Airport
(KDXE DXE)		 0 2 100LL, Jet A
51.7 West Memphis Municipal Airport
(AWM KAWM AWM)		 195 197 100LL, Jet A
51.8 Pocahontas Municipal Airport
(M70)		 289 290 100LL, Jet A
51.9 Poplar Bluff Regional Business Airport
(POF KPOF POF)		 339 341 100LL, Jet A
52.7 Everett-Stewart Regional Airport
(UCY KUCY UCY)		 61 64 100LL, Jet A+

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KBYH NOTAMs
View KBYH NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KBYH

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KBYH

Remarks

A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1 NO FEE CHRGD FOR SVC AFT HRS CTC/LV MSG - 870-532-5628.
A110-2 FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-3 TWY A BTN TWY B AND TWY D TKOF AND LDG AVBL TO MIL ACFT.
A17 ARPT UNATNDD HOLS.
A40-18/36 NSTD HIRL; LCTD 77 FT FM RWY EDGE & NSTD DSTC FM CNTRLN. DPT PRECEPTION PROBLEMS MAY EXIST DURG PDS OF DARKNESS.
A43-36 RY 36 V4L OTS INDEFLY.
A70-FUEL-10 0LL FUEL AVBL 24 HRS SELF SERVE WITH CREDIT CARD (100 LL)
A81-APT DUSK-DAWN. ACTVT HIRL RY 18/36 - CTAF.

Runways

Runway Summary

Runways: 18/36
Longest Runway: 18/36 is 11602 ft (3536 m) long
Runways with an Instrument Approach: 18

BYH Airport Runway Details

Runway 18/36  11602 ft x 150 ft (3536 m x 46 m)
Runway Length Source:  NGS as of 07/24/2008
Surface:  Concrete - Good condition - No special surface treatment
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  155.0
Dual Wheel Landing Gear:  235.0
Dual Tandem Wheel Landing Gear:  455.0

Runway 18

Runway 36
Elevation:
 250.3 252.0
Latitude:
 35-58-49.0017N 35-56-54.2742N
Longitude:
 089-56-38.2330W 089-56-38.2376W
Runway True Alignment:
 180 360
ILS Type:
 ILS/DME
Glide Path Angle:
 0.0 degrees 3.0 degrees
Traffic Pattern:
 Left Left
Runway Markings Type:
 Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Visual Glide Slope Indicators:
 4-Box VASI On Left Side Of Runway
REIL:
 No No
Touchdown Lights:
 No No
Centerline Lights:
 No No
Threshold Crossing Height:
 51

Services

Airframe Repair:
 Major
Powerplant Repair:
 Major
Bottled Oxygen:
 High Pressure / Low Pressure
Bulk Oxygen:
 High Pressure / Low Pressure
Fuel Available:
 100LL, Jet A+
Landing Fees:
 No
Parking:
 Hangars and tiedowns available

Maps & Diagrams

BYH Sectional

Flight Planning
at skyvector.com

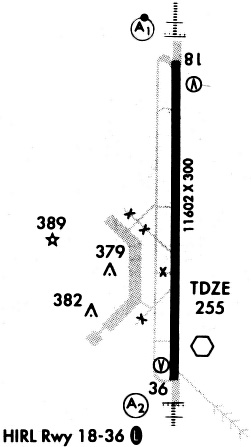

BYH Diagram


Do you have a better diagram of this ?
Please share it with us.
