Dothan Regional Airport

US Flag

Dothan Weather (°F)

KDHN (0.4 NM at True Heading of 118)
METAR: KDHN 241653Z 10009KT 10SM CLR 14/M06 A3039 RMK AO2 SLP289 T01391056
TAF: KDHN 241133Z 2412/2512 10005KT P6SM SKC FM251000 10003KT P6SM SCT035

Location

Latitude:
31-19-15.7000N (31.321028)
Longitude:
085-26-58.1000W (-85.449472)
Elevation:
400.8 feet MSL (122 m MSL)
Magnetic Variation:
4.3 W (as of November 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
05 N.M. NW of Dothan, Alabama
Found On:
New Orleans Chart
FAA Region:
ASO

Contacts

Manager:
Publicly owned:
ADAM HARTZOG
800 ARPT DR SUITE 15
DOTHAN, AL 36303
334-983-8100
DOTHAN-HOUSTON CO ARPT AUTH
800 ARPT DR SUITE 15
DOTHAN, AL 36303
334-983-8100

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
07/1942
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/ALL
Boundary ARTCC:
ZJX (Jacksonville)
Responsible ARTCC:
ZJX (Jacksonville)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1401 feet (427 m)
NOTAMs Facility:
DHN
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: B
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  22
Multi Engine:  36
Jet Engine:  8
Military Aircraft:  10

Annual Operations (as of 12/31/2020)

Total Operations:  77706
Commercial:  1555 2.0%
Air Taxi:  746 1.0%
GA Local:  11663 15.0%
GA Itinerant:  16431 21.1%
Military Aircraft:  47311 60.9%

Communications

CTAF:  118.400
Unicom:  122.950
Tower:  DOTHAN
118.4
257.6
Hrs: 0600-2100 MON-FRI; 0800-2000 SAT & SUN.
Ground:  121.7
348.6
Approach:  CAIRNS
125.4
125.4
JAX ARTCC
Departure:  CAIRNS
125.4
125.4
JAX ARTCC
ATIS:  135.725
Hrs: 24
ASOS:  (334-983-5999)
VFR ADZY:  118.4

  • APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 134.3/353.5 (DOTHAN RCAG) WHEN CAIRNS APCH/DEP CLSD.


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 334

Business Name Frequency Phone Fuel Grade
Aero-One

1-334-983-4541
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Anniston(ANB)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 11/04/21 to 0901Z 12/02/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM SE-4
IAP COPTER VOR RWY 36 SE-4
IAP ILS OR LOC RWY 14 SE-4
IAP ILS OR LOC RWY 32 SE-4
IAP RNAV (GPS) RWY 14 SE-4
IAP RNAV (GPS) RWY 18 SE-4
IAP RNAV (GPS) RWY 32 SE-4
IAP RNAV (GPS) RWY 36 SE-4
IAP VOR OR TACAN-A SE-4
IAP VOR RWY 14 SE-4
IAP VOR RWY 18 SE-4
MIN ALTERNATE MINIMUMS SE-4
MIN TAKEOFF MINIMUMS SE-4
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near DHN

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
11.0 Ozark-Blackwell Field Airport
(71J)
307 311 100LL, Jet A+
23.1 Enterprise Municipal Airport
(ETS KEDN EDN)
266 270 100LL, Jet A+
26.9 Geneva Municipal Airport
(33J)
233 237 100LL
32.1 Marianna Municipal Airport
(KMAI MAI)
154 159 100LL, Jet A
33.3 Carl Folsom Airport
(14J)
279 283 100LL
41.2 Weedon Field Airport
(EUF KEUF EUF)
23 28 100LL, Jet A+
46.7 Decatur County Industrial Air Park Airport
(BGE KBGE BGE)
116 121 100LL, Jet A+
47.3 Florala Municipal Airport
(0J4)
249 253 100LL, Jet A
48.3 South Alabama Regional At Bill Benton Field Airport
(79J)
269 273 100LL, Jet A+
50.6 Defuniak Springs Airport
(54J)
225 229 100LL, Jet A+
58.5 Dawson Municipal Airport
(16J)
64 69 100LL
60.5 Northwest Florida Beaches International Airport
(ECP KECP ECP)
197 201 100LL, Jet A
62.6 Camilla-Mitchell County Airport
(KCXU CXU)
95 100 100LL, Jet A+
64.0 Bob Sikes Airport
(CEW KCEW CEW)
239 243 100LL, Jet A, Jet A-1+
65.5 Southwest Georgia Regional Airport
(ABY KABY ABY)
78 83 100LL, Jet A
67.2 Mac Crenshaw Meml Airport
(KPRN PRN)
298 302 100LL
69.4 Moton Field Municipal Airport
(06A)
350 354 100LL, Jet A+
71.4 Cairo-Grady County Airport
(70J)
111 116 100LL
72.2 Tallahassee Commercial Airport
(68J)
129 134 100LL
76.0 Montgomery Regional (Dannelly Field) Airport
(MGM KMGM MGM)
320 324 100LL, Jet A, Jet A++

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KDHN NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KDHN

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KDHN

Remarks

A110-1 MAXI TWY WIDTH FOR RWY 14/32 IS 75 FT.
A110-2 RSTD: USAF NOT AUTH TO OPER C130 & C135 ACFT ON RWY 18/36.
A110-4 ARFF PSNL ON DUTY AT ARPT 24 HRS.
A110-5 FUEL A, A+ (C334 983 4541) (NC 100LL).
A110-6 LN OF SIGHT FROM DOTHAN ATC TO A PTN OF TXY BRAVO BTN TXY ALPHA AND THE APCH END OF RWY 36 OBSTD BY THE AP BLDG.
A110-7 FOR CD IF UNA TO CTC ON FSS FREQ, CTC CAIRNS APCH AT 334-255-8402, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A24 MISC: LDG FEE FOR ACFT OVER 12500 LBS.
A26 48 HR PPR FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS 2300-0600 CALL AMGR 334-983-8100.
A81-APT WHEN ATCT CLSD, ACTVT MALSR RWY 32; PAPI & REIL RWY 14 AND HIRL RWY 14/32 - CTAF. HIRL RWY 18/36 & PAPI RWY 18 AVBL BY PRIOR REQ DURG ATTENDED HRS CALL 334-983-8100/8103. REIL RWY 18 OPER BY ATCT WHEN RWY 18 IS ACTIVE.
E111 ARPT CONST BEFORE FAA ACT NO AIRSPACE ACTION ON FILE IN AREA OFFICE.

Runways

Runway Summary

Runways: 14/32
18/36
Longest Runway: 14/32 is 8499 ft (2590 m) long
Runways with an Instrument Approach: 14, 32

DHN Airport Runway Details

Runway 14/32  8499 ft x 150 ft (2590 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/30/2012
Surface:  Asphalt - Excellent condition - Saw-cut or plastic grooved
Runway Pavement Class:  34 /F/B/X/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  75.0
Dual Wheel Landing Gear:  105.0
Dual Tandem Wheel Landing Gear:  190.0
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
400.6 381.6
Latitude:
31-19-50.1212N 31-18-50.6966N
Longitude:
085-27-41.9248W 085-26-32.5791W
True Magnetic Hdg.:
135 315
ILS Type:
ILS/DME ILS
Glide Path Angle:
3.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Rollout Touchdown
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
40
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
8496 8496
Take Off Distance Avbl. (TODA):
8496 8496
Actual Stop Dist. Avbl. (ASDA):
8496 8496
Landing Dist. Avbl. (LDA):
8496 8496

Runway 18/36  5498 ft x 100 ft (1676 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/30/2012
Surface:  Asphalt - Excellent condition -
Runway Pavement Class:  30 /F/B/X/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  75.0
Dual Wheel Landing Gear:  105.0
Dual Tandem Wheel Landing Gear:  190.0
Dual Dual Tandem Wheel Landing Gear:

Runway 18

Runway 36

Elevation:
394.7 378.4
Latitude:
31-19-35.5493N 31-18-41.1362N
Longitude:
085-26-44.0162W 085-26-44.0072W
True Magnetic Hdg.:
180 360
ILS Type:
Glide Path Angle:
3.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES TREES
Object Height:
48 80
Object Marked/Lighted?:
Distance from End:
1400 2050
Object Centerline Offset:
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
40
Threshold Elevation:
393.1
Displaced Threshold:
499
Threshold Latitude:
31-19-30.6075N

Threshold Longitude:

085-26-44.0161W
Declared Distances
Take Off Run Avbl. (TORA):
5500 5000
Take Off Distance Avbl. (TODA):
5500 5000
Actual Stop Dist. Avbl. (ASDA):
5500 5000
Landing Dist. Avbl. (LDA):
5000 5000

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
High Pressure / Low Pressure
Fuel Available:
100LL, Jet A, Jet A++
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

DHN Airport Terminal Map

Dothan - Montgomery Regional (Dannelly Field) (DHN) Airport Terminal Map - Overview

To license this image, please contact us.

DHN Airport Sectional

Flight Planning
at skyvector.com

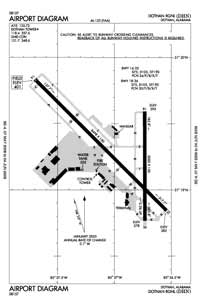

DHN Airport Diagram

Dothan Regional Airport (DHN) Diagram
Do you have a better diagram of this Airport?
Please share it with us.
