Directions to ABY Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
31-32-07.9000N (31.535528)
Longitude:
084-11-40.1000W (-84.194472)
Elevation:
196.2 feet MSL (60 m MSL)
Magnetic Variation:
5 W (as of June 2019 from WMM2015 model)
Time Zone:
UTC -5.0 (Standard Time)
UTC -4.0 (Daylight Savings Time)
From City:
3 N.M. SW of Albany, Georgia
Found On:
Jacksonville Chart
FAA Region:
ASO

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1940
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0500-2200
Boundary ARTCC:
ZJX (Jacksonville)
Responsible ARTCC:
ZJX (Jacksonville)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1196 feet (365 m)
NOTAMs Facility:
ABY
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: A
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  20
Multi Engine:  9
Jet Engine:  2

Annual Operations (as of 10/31/2018)

Total Operations:  21855
Commercial:  55 0.3%
Air Taxi:  2776 12.7%
GA Local:  4862 22.2%
GA Itinerant:  10722 49.1%
Military Aircraft:  3440 15.7%

Communications

CTAF:  120.250
Unicom:  122.950
Tower:  ALBANY
120.25
336.4
Hrs: 0800-2000
Ground:  121.9
348.6
Approach:  JAX ARTCC
Departure:  JAX ARTCC
ATIS:  133.05
Hrs: 24
ASOS:  (229-434-7494)

  • APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 125.75/226.8 (ALBANY RCAG).


Contacts

Manager:
Publicly owned:
MR. DAVID HAMILTON
3905 NEWTON RD., SUITE 100
ALBANY, GA 31701
229-430-5175
CITY OF ALBANY
3905 NEWTON ROAD, SUITE 100
ALBANY, GA 31701-7356
229-430-5175

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 912

Business Name Frequency Phone Fuel Grade
Albany Air Center

Unicom 122.95 434-8787
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Macon(MCN)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 06/20/19 to 0901Z 07/18/19.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM SE-4
IAP ILS OR LOC RWY 04 SE-4
IAP RNAV (GPS) RWY 04 SE-4
IAP RNAV (GPS) RWY 16 SE-4
IAP RNAV (GPS) RWY 22 SE-4
IAP RNAV (GPS) RWY 34 SE-4
IAP VOR RWY 16 SE-4
MIN ALTERNATE MINIMUMS SE-4
MIN TAKEOFF MINIMUMS SE-4
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Albany - Southwest Georgia Regional (ABY) Airport Terminal Map

Terminal Map Not Available for this Airport

ABY Airport Sectional

Flight Planning
at skyvector.com

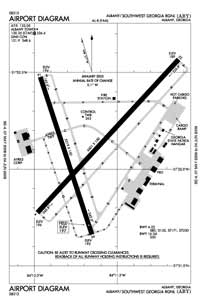

ABY Airport Diagram

Southwest Georgia Regional Airport (ABY) Diagram
Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near ABY

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
15.4 Sylvester Airport
(SYV KSYV SYV)
85 90 100LL
16.9 Dawson Municipal Airport
(16J)
317 322 100LL
19.5 Camilla-Mitchell County Airport
(KCXU CXU)
186 191 100LL, Jet A
33.7 Moultrie Municipal Airport
(MGR KMGR MGR)
143 148 100LL, Jet A-1
34.5 Jimmy Carter Regional Airport
(KACJ ACJ)
0 5 100LL, Jet A
34.6 Crisp County-Cordele Airport
(CKF KCKF CKF)
38 43 100LL, Jet A
34.7 Spence Airport
(MUL KMUL MUL)
133 138 100LL, Jet A
36.6 Henry Tift Myers Airport
(TMA KTMA TMA)
99 105 100LL, Jet A
38.9 Cairo-Grady County Airport
(70J)
176 181 100LL
40.7 Decatur County Industrial Air Park Airport
(BGE KBGE BGE)
213 218 100LL, Jet A-1+
41.3 Thomasville Regional Airport
(TVI KTVI TVI)
157 162 100LL, Jet A
48.0 Fitzgerald Municipal Airport
(KFZG FZG)
79 85 100LL, Jet A-1+
53.3 Berrien Co Airport
(4J2)
111 117 Jet A
53.7 Quitman Brooks County Airport
(4J5)
144 149 100LL
53.8 Weedon Field Airport
(EUF KEUF EUF)
297 301 100LL, Jet A+
60.0 Tallahassee Commercial Airport
(68J)
188 193 100LL
62.4 Perry-Houston County Airport
(KPXE PXE)
20 25 100LL, Jet A-1+
65.3 Valdosta Regional Airport
(VLD KVLD VLD)
133 139 100LL, Jet A-1+
65.5 Dothan Regional Airport
(DHN KDHN DHN)
259 263 100LL, Jet A
65.7 Marianna Municipal Airport
(KMAI MAI)
230 234 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KABY NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KABY

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Southwest Georgia Regional Airport Ratings

Category Aspect Rating
Overall Rating for Southwest Georgia Regional Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 4.0/5 (1 vote cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 2.0/5 (1 vote cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 2.0/5 (1 vote cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 0.0/5 (0 votes cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 4.0/5 (2 votes cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 4.0/5 (1 vote cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 3.0/5 (1 vote cast)

Security Lines
  • 5.0/5 (1 vote cast)

Transportation & Parking Parking Availability
  • 0.0/5 (0 votes cast)

Parking Pricing
  • 2.0/5 (1 vote cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 0.0/5 (0 votes cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Remarks

A11 ARPT OPERATED BY ALBANY-DOUGHERTY CO AVIATION COMMISSION.
A110-2 LOW FLYNG ACFT 3 MILES SOUTHEAST.
A110-4 ACFT BYD 3 NM AND BLO 2000 FT ON APCH TO RY 16 BRG 325-040 FROM ARPT NOT VISIBLE FM ATCT DUE TO TREES.
A110-5 NUMEROUS BIRDS ON & WITHIN 5 NM OF ARPT SEP-FEB.
A110-6 TWY H SOUTH OF CARGO RAMP OTS INDEFLY.
A110-7 PERSONNEL AND EQUIPMENT MOWING GRASS ADJACENT TO ALL RUNWAYS AND TAXIWAYS APRIL 1- OCTOBER 30TH.
A110-8 AIRCRAFT GREATER THAN 350,000LBS GROSS WEIGHT ARE RESTRICTED FROM USING RUNWAY 4-22 EXCEPT 24HR PPR CALL AMGR 229-430-5175.
A110-9 CTAF FREQ 120.25 UNREL FOR GROUND TO GROUND TWO WAY COM USE CAUTION ON CTAF.
A14 FBO FREQ 129.8
A26 CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP PPR CALL AMGR 229-430-5175.
A70 FUEL AVBL AFTER HOURS CALL 229-434-8787.
A81-APT WHEN ATCT CLSD, ACTVT HIRL RY 04/22, MIRL RY 16/34 & MALSR RY 04 - CTAF.

Runways

ABY Airport Runway Summary

Runways: 04/22
16/34
Longest Runway: 04/22 is 6601 ft (2012 m) long
Runways with an Instrument Approach: 04

ABY Airport Runway Details

Runway 04/22  6601 ft x 148 ft (2012 m x 45 m)
Runway Length Source:  3RD PARTY SURVEY as of 03/03/2007
Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
Runway Pavement Class:  57 /F/A/X/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  80.0
Dual Wheel Landing Gear:  135.
Dual Tandem Wheel Landing Gear:  230.0
Dual Dual Tandem Wheel Landing Gear:

Runway 04

Runway 22

Elevation:
196 189
Latitude:
31-31-46.5566N 31-32-35.0249N
Longitude:
084-11-59.0088W 084-11-07.8675W
True Magnetic Hdg.:
42 222
ILS Type:
ILS/DME
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Right Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES ANT
Object Height:
79 67
Object Marked/Lighted?:
Distance from End:
3175 2800
Object Centerline Offset:
550 ft. right of centerline 800 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Touchdown Rollout
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
55 54
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
6601 6601
Take Off Distance Avbl. (TODA):
6601 6601
Actual Stop Dist. Avbl. (ASDA):
6601 6601
Landing Dist. Avbl. (LDA):
6601 6601

Runway 16/34  5219 ft x 148 ft (1591 m x 45 m)
Runway Length Source:  3RD PARTY SURVEY as of 03/03/2007
Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
Runway Pavement Class:  29 /F/A/X/T
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 16

Runway 34

Elevation:
194 195
Latitude:
31-32-28.6693N 31-31-39.5960N
Longitude:
084-11-58.0363W 084-11-39.2174W
True Magnetic Hdg.:
162 342
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Right Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREE TREES
Object Height:
42 54
Object Marked/Lighted?:
Distance from End:
1200 1700
Object Centerline Offset:
550 ft. right of centerline 800 ft. left of centerline
Visual Glide Slope Indicators:
4-Box VASI On Left Side Of Runway 4-Box VASI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
52 44
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

© 1998-2019 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
