Directions to CGI Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
37-13-31.1000N (37.225306)
Longitude:
089-34-14.7000W (-89.570750)
Elevation:
341.6 feet MSL (104 m MSL)
Magnetic Variation:
2 W (as of February 2020 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
5 N.M. SW of Cape Girardeau, Missouri
Found On:
St Louis Chart
FAA Region:
ACE

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1943
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON-SAT/0500-2200
Boundary ARTCC:
ZME (Memphis)
Responsible ARTCC:
ZME (Memphis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1342 feet (409 m)
NOTAMs Facility:
CGI
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: A
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  43
Multi Engine:  8
Jet Engine:  4
GA Helicopters:  7

Annual Operations (as of 09/30/2018)

Total Operations:  29106
Commercial:  1434 4.9%
Air Taxi:  760 2.6%
GA Local:  12833 44.1%
GA Itinerant:  13676 47.0%
Military Aircraft:  403 1.4%

Communications

CTAF:  125.525
Unicom:  122.950
Tower:  CAPE GIRARDEAU
125.525
Hrs: 0700-1700
Ground:  121.6
Approach:  MEMPHIS ARTCC
Departure:  MEMPHIS ARTCC
ASOS:  120.55 (573-335-3811)

  • APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 133.65/292.15 (PADUCAH RCAG).
  • ATCT OPERATED BY CITY OF CAPE GIRARDEAU.


Contacts

Manager:
Publicly owned:
MR BRUCE W LOY
PO BOX 617
CAPE GIRARDEAU, MO 63702
573-334-6230
CITY OF CAPE GIRARDEAU
CITY HALL, 401 INDEPENDENCE
CAPE GIRARDEAU, MO 63701
573-334-1212

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 573

Business Name Frequency Phone Fuel Grade
Cape Avionics, Inc.

334-8599
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:
FSS Name (ID):  Saint Louis(STL)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 01/30/20 to 0901Z 02/27/20.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM NC-3
HOT HOT SPOT NC-3
IAP ILS OR LOC RWY 10 NC-3
IAP LOC/DME BC RWY 28 NC-3
IAP RNAV (GPS) RWY 02 NC-3
IAP RNAV (GPS) RWY 10 NC-3
IAP RNAV (GPS) RWY 20 NC-3
IAP RNAV (GPS) RWY 28 NC-3
IAP VOR RWY 02 NC-3
MIN ALTERNATE MINIMUMS NC-3
MIN TAKEOFF MINIMUMS NC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Cape Girardeau - Cape Girardeau Regional (CGI) Airport Terminal Map

Terminal Map Not Available for this Airport

CGI Airport Sectional

Flight Planning
at skyvector.com

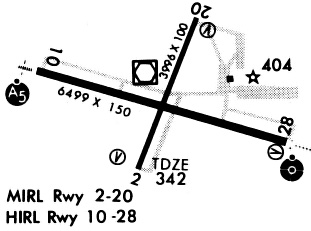

CGI Airport Diagram

Cape Girardeau Regional Airport (CGI) Diagram
Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near CGI

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
19.6 Sikeston Memorial Municipal Airport
(SIK KSIK SIK)
178 180 100LL, Jet A
32.3 Dexter Municipal Airport
(KDXE DXE)
213 215 100LL, Jet A
36.5 Southern Illinois Airport
(MDH KMDH MDH)
24 26 100LL, Jet A
39.3 Metropolis Municipal Airport
(M30)
93 96 100LL
39.4 Barkley Regional Airport
(PAH KPAH PAH)
104 107 100LL, Jet A
41.0 Perryville Regional Airport
(PCD)
340 342 100LL, Jet A
41.1 A Paul Vance Fredericktown Regional Airport
(H88)
303 305 100LL, Jet A
41.4 County Memorial Airport
(KEIW EIW)
181 183 100LL
41.5 Veterans Airport Of Southern Illinois Airport
(MWA KMWA MWA)
39 41 100LL, Jet A
42.7 Malden Regional Airport
(MAW KMAW MAW)
208 210 100LL, Jet A-1+
45.2 Poplar Bluff Municipal Airport
(POF KPOF POF)
233 234 100LL, Jet A
46.2 Pinckneyville-Du Quoin Airport
(KPJY PJY)
12 14 100LL
52.0 Farmington Regional Airport
(FAM KFAM FAM)
308 309 100LL, Jet A
54.6 Mayfield Graves County Airport
(M25)
119 122 100LL, Jet A+
55.0 Piedmont Municipal Airport
(KPYN PYN)
264 265 100LL
55.7 Sparta Community-Hunter Field Airport
(SAR KSAR SAR)
353 355 100LL, Jet A
55.9 Benton Municipal Airport
(H96)
32 35 100LL
58.0 Everett-Stewart Regional Airport
(UCY KUCY UCY)
150 152 100LL, Jet A+
60.0 Harrisburg-Raleigh Airport
(HSB KHSB HSB)
53 56 100LL, Jet A
60.5 Mid Continent Airport
(M28)
187 189 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KCGI NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KCGI

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Cape Girardeau Regional Airport Ratings

Category Aspect Rating
Overall Rating for Cape Girardeau Regional Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 0.0/5 (0 votes cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 0.0/5 (0 votes cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 0.0/5 (0 votes cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 0.0/5 (0 votes cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 0.0/5 (0 votes cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 0.0/5 (0 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 0.0/5 (0 votes cast)

Security Lines
  • 0.0/5 (0 votes cast)

Transportation & Parking Parking Availability
  • 0.0/5 (0 votes cast)

Parking Pricing
  • 0.0/5 (0 votes cast)

Public Transport
  • 3.0/5 (1 vote cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 0.0/5 (0 votes cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Remarks

A110-1 (E110) STANDBY GEN FOR FAA FAC ONLY
A110-2 NORTHERN 100 FT TWY 'C' NOT VISIBLE FM CONTROL TOWER.
A110-3 FOR CD IF UNA TO CTC ON FSS FREQ, CTC MEMPHIS ARTCC AT 901-368-8453.
A17 FOR SVC AFT HRS, CALL (573) 334-6632.
A81-APT ACTVT MIRL RY 02/20 & HIRL RY 10/28; MALSR RY 10 AND ODALS RY 28 - CTAF.

Runways

CGI Airport Runway Summary

Runways: 02/20
10/28
Longest Runway: 10/28 is 6500 ft (1981 m) long
Runways with an Instrument Approach: 10

CGI Airport Runway Details

Runway 02/20  3997 ft x 100 ft (1218 m x 30 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/12/2011
Surface:  Asphalt/Concrete - Fair condition -
Runway Pavement Class:  16 /R/D/W/T
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  45.0
Dual Wheel Landing Gear:  60.0
Dual Tandem Wheel Landing Gear:  100.0
Dual Dual Tandem Wheel Landing Gear:

Runway 02

Runway 20

Elevation:
342 336
Latitude:
37-13-14.8861N 37-13-51.7285N
Longitude:
089-34-22.2095W 089-34-04.3387W
True Magnetic Hdg.:
21 201
ILS Type:
Glide Path Angle:
4.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREE
Object Height:
70 0
Object Marked/Lighted?:
Distance from End:
1500 0
Object Centerline Offset:
450 ft. left of centerline
Visual Glide Slope Indicators:
4-Box VASI On Left Side Of Runway 4-Box VASI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
52 43
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
3996 3996
Take Off Distance Avbl. (TODA):
3996 3996
Actual Stop Dist. Avbl. (ASDA):
3996 3996
Landing Dist. Avbl. (LDA):
3996 3996

Runway 10/28  6500 ft x 150 ft (1981 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/12/2011
Surface:  Asphalt/Concrete - Fair condition - Saw-cut or plastic grooved
Runway Pavement Class:  30 /R/D/W/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  93.0
Dual Wheel Landing Gear:  125.
Dual Tandem Wheel Landing Gear:  215.0
Dual Dual Tandem Wheel Landing Gear:

Runway 10

Runway 28

Elevation:
337 341
Latitude:
37-13-38.5506N 37-13-21.0421N
Longitude:
089-34-54.2952W 089-33-36.9701W
True Magnetic Hdg.:
106 286
ILS Type:
ILS/DME
Glide Path Angle:
0.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREE
Object Height:
0 160
Object Marked/Lighted?:
Distance from End:
0 5600
Object Centerline Offset:
450 ft. left of centerline
Visual Glide Slope Indicators:
2-Box VASI On Left Side Of Runway
Runway Visual Range (RVR):
Touchdown Rollout
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights Omnidirectional Approach Lighting System
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
38
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
6499 6499
Take Off Distance Avbl. (TODA):
6499 6499
Actual Stop Dist. Avbl. (ASDA):
6499 6499
Landing Dist. Avbl. (LDA):
6499 6499

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Tiedowns available

© 1998-2020 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
