Directions to ADS Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
32-58-06.8000N (32.968556)
Longitude:
096-50-11.2000W (-96.836444)
Elevation:
644.6 feet MSL (196 m MSL)
Magnetic Variation:
3.2 E (as of December 2019 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
9 N.M. N of Dallas, Texas
Found On:
Dallas-Ft Worth Chart
FAA Region:
ASW

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
11/1956
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/ALL
Boundary ARTCC:
ZFW (Fort Worth)
Responsible ARTCC:
ZFW (Fort Worth)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1645 feet (501 m)
NOTAMs Facility:
ADS
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
Yes
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  279
Multi Engine:  111
Jet Engine:  137
GA Helicopters:  8

Annual Operations (as of 12/31/2015)

Total Operations:  96476
Commercial:  178 0.2%
Air Taxi:  6989 7.2%
GA Local:  85583 88.7%
GA Itinerant:  3465 3.6%
Military Aircraft:  261 0.3%

Communications

CTAF:  126.000
Unicom:  122.950
Tower:  ADDISON
126.0
239.0
Hrs: 0600-2200
Clearance Del.:  119.55
Ground:  121.6
Approach:  REGIONAL
Departure:  REGIONAL
ATIS:  133.4
Hrs: 24
AWOS-3:  (972-386-4855)



    Contacts

    Manager:
    Publicly owned:
    JOEL JENKINSON
    16051 ADDISON RD. SUITE 220
    ADDISON, TX 75001
    972-392-4850
    TOWN OF ADDISON
    P.O. BOX 9010
    ADDISON, TX 75001
    972-450-2800

    Fixed Based Operators (FBOs) & Fuel

    To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
    Click here to be taken to the FAA site where you can start the process to remove your name.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 972

    Business Name Frequency Phone Fuel Grade
    All American Aviation

    392-7555 100LL, Jet A
    Classic Aviation

    661-8086
    FlightStar Aviation

    701-8718, 800-253-9996
    Flite Electronics

    239-3791
    Henley's Aircraft Services

    934-0875
    Mercury Air Center

    Unicom 122.95, Arinc 131.6 930-0216 100LL, Jet A
    Millennium Air Dallas

    980-9339 100LL, Jet A
    Million Air Dallas

    Unicom 122.95, Arinc 129.02 248-1600 100LL, Jet A
    Monarch Air

    931-0345
    Omniflight Helicopters

    776-0130
    Pro Air Partners

    248-8298
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Fort Worth(FTW)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF


    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 12/05/19 to 0901Z 01/02/20.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    APD AIRPORT DIAGRAM SC-2
    DP DALLAS FOUR SC-2
    DP DALLAS FOUR[DELIMITER] CONT.1 SC-2
    DP GARLAND SIX SC-2
    DP GARLAND SIX[DELIMITER] CONT.1 SC-2
    DP HUBBARD NINE SC-2
    DP HUBBARD NINE[DELIMITER] CONT.1 SC-2
    DP JOE POOL ONE SC-2
    DP JOE POOL ONE[DELIMITER] CONT.1 SC-2
    DP KINGDOM FIVE SC-2
    DP KINGDOM FIVE[DELIMITER] CONT.1 SC-2
    DP KUSSO FIVE (RNAV) SC-2
    DP KUSSO FIVE (RNAV)[DELIMITER] CONT.1 SC-2
    DP SWABR FIVE (RNAV) SC-2
    DP SWABR FIVE (RNAV)[DELIMITER] CONT.1 SC-2
    DP TEXOMA SEVEN SC-2 Changed
    DP TEXOMA SEVEN[DELIMITER] CONT.1 SC-2 Changed
    DP WORTH THREE SC-2 Changed
    DP WORTH THREE[DELIMITER] CONT.1 SC-2 Changed
    HOT HOT SPOT SC-2
    IAP ILS OR LOC RWY 15 SC-2
    IAP ILS OR LOC RWY 33 SC-2
    IAP RNAV (GPS) RWY 15 SC-2
    IAP RNAV (GPS) RWY 33 SC-2
    MIN ALTERNATE MINIMUMS SC-2
    MIN TAKEOFF MINIMUMS SC-2
    STAR EESAT THREE (RNAV) SC-2
    STAR FINGR SIX SC-2 Changed
    STAR FINGR SIX[DELIMITER] CONT.1 SC-2 Changed
    STAR GREGS NINE SC-2
    STAR GREGS NINE[DELIMITER] CONT.1 SC-2
    STAR JFRYE THREE (RNAV) SC-2
    STAR KNEAD EIGHT SC-2
    STAR KNEAD EIGHT[DELIMITER] CONT.1 SC-2
    STAR LOADS THREE (RNAV) SC-2
    STAR SASIE SIX SC-2 Changed
    STAR SASIE SIX[DELIMITER] CONT.1 SC-2 Changed
    STAR SLANT THREE (RNAV) SC-2
    STAR SWVAY FOUR (RNAV) SC-2
    STAR YEAGR THREE SC-2
    STAR YEAGR THREE[DELIMITER] CONT.1 SC-2
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Maps

    Dallas - Addison (ADS) Airport Terminal Map

    Terminal Map Not Available for this Airport

    ADS Airport Sectional

    Flight Planning
    at skyvector.com

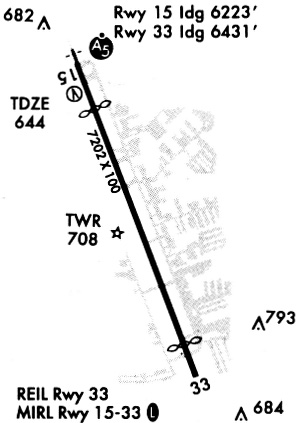

    ADS Airport Diagram

    Addison Airport (ADS) Diagram
    Do you have a better diagram of this Airport?
    Please share it with us.

    METAR / TAF

    METAR

    TAF

    Navigation Aids (Navaids) near ADS

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    3.3 Air Park-Dallas Airport
    (F69)
    359 356 100LL
    7.4 Dallas Love Field Airport
    (DAL KDAL DAL)
    185 182 100LL, Jet A
    9.1 Garland/Dfw Heloplex Heliport
    (T57)
    122 119 100LL, Jet A
    11.0 Dallas-Fort Worth International Airport
    (DFW KDFW DFW)
    247 244 100LL, Jet A
    17.3 Dallas Executive Airport
    (RBD KRBD RBD)
    185 182 100LL, Jet A
    19.4 Grand Prairie Municipal Airport
    (KGPM GPM)
    213 210 100LL, Jet A
    20.3 Ralph M Hall/Rockwall Municipal Airport
    (F46)
    96 93 100LL, Jet A
    20.4 Mesquite Metro Airport
    (KHQZ HQZ)
    130 127 100LL, Jet A
    20.5 Northwest Regional Airport
    (52F)
    283 280 100LL
    22.4 Arlington Municipal Airport
    (KGKY GKY)
    215 212 100LL, Jet A
    22.9 Denton Enterprise Airport
    (KDTO DTO)
    307 304 100LL, Jet A
    24.2 Lancaster Regional Airport
    (KLNC LNC)
    165 162 100LL, Jet A+
    24.3 Fort Worth Alliance Airport
    (AFW KAFW AFW)
    273 270 100LL, Jet A-1+
    26.1 Airpark East Airport
    (1F7)
    110 107 100LL
    28.0 Fort Worth Meacham International Airport
    (FTW KFTW FTW)
    251 248 100LL, Jet A, Jet A-1+
    29.0 Hicks Airfield Airport
    (T67)
    265 262 100LL
    30.9 Mid-Way Regional Airport
    (KJWY JWY)
    187 184 100LL, Jet A
    32.7 Terrell Municipal Airport
    (TRL KTRL TRL)
    118 115 100LL, Jet A
    33.2 Sycamore Strip Airport
    (9F9)
    232 229 100LL
    33.9 Fort Worth Spinks Airport
    (KFWS FWS)
    224 221 100LL, Jet A

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KADS NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of KADS

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:

    Ratings & Reviews

    Addison Airport Ratings

    Category Aspect Rating
    Overall Rating for Addison Airport
    • 0.0/5 (0 votes cast)

    Flight Service Number of Flights
    • 1.0/5 (1 vote cast)

    Overall Number of Routes Served
    • 0.0/5 (0 votes cast)

    International Routes Served
    • 0.0/5 (0 votes cast)

    On-time Performance
    • 4.0/5 (1 vote cast)

    Business Services & Internet Airport Lounges
    • 0.0/5 (0 votes cast)

    Business Centers
    • 0.0/5 (0 votes cast)

    Airport Website (information & tools)
    • 0.0/5 (0 votes cast)

    Availability of Internet Connectivity
    • 0.0/5 (0 votes cast)

    Wireless Internet Access
    • 0.0/5 (0 votes cast)

    General Facilities ATM Locations
    • 0.0/5 (0 votes cast)

    Public Telephones
    • 0.0/5 (0 votes cast)

    Restrooms
    • 0.0/5 (0 votes cast)

    Architecture
    • 0.0/5 (0 votes cast)

    Terminal Layout
    • 0.0/5 (0 votes cast)

    Seating Areas
    • 5.0/5 (1 vote cast)

    Overall Cleanliness
    • 1.0/5 (1 vote cast)

    Children Play Areas
    • 0.0/5 (0 votes cast)

    Geographic Location
    • 0.0/5 (0 votes cast)

    Baggage Claim Locations
    • 0.0/5 (0 votes cast)

    Baggage Handling
    • 3.0/5 (1 vote cast)

    Overall Comfort
    • 3.0/5 (1 vote cast)

    Security Lines
    • 0.0/5 (0 votes cast)

    Transportation & Parking Parking Availability
    • 2.5/5 (2 votes cast)

    Parking Pricing
    • 0.0/5 (0 votes cast)

    Public Transport
    • 0.0/5 (0 votes cast)

    Car Rental
    • 0.0/5 (0 votes cast)

    Taxis
    • 0.0/5 (0 votes cast)

    Hotel Shuttles
    • 0.0/5 (0 votes cast)

    Proximity to City Center
    • 0.0/5 (0 votes cast)

    Amenities Shopping (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (price/value)
    • 4.0/5 (1 vote cast)

    Remarks

    A110-1 NUMEROUS 200 FT BLDGS WITHIN 1 MILE EAST AND SOUTH OF ARPT; TRANSMISSION TOWERS AND WATER TANKS WEST OF ARPT.
    A110-2 NO TGL WITHOUT AMGR APPROVAL.
    A110-3 FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
    A110-6 BIRDS ON & INVOF ARPT.
    A110-8 BE ALERT: RY HOLDING POSITION MARKINGS LCTD AT THE WEST EDGE OF TWY A.
    A110-9 NOISE SENSITIVE AREAS SURROUND ARPT. PILOTS REQUESTED TO USE NBAA STD NOISE ABATEMENT PROCEDURES.
    A52-33 ANTENNA ON TOP OF BLDG.
    A57-15 APCH RATIO 11:1 TO DSPLCD THR; +40 FT TREE 440 FT FM DSPLCD THR 480 FT L OF CNTRLN.
    A57-33 APCH RATIO 22:1 TO DSPLCD THLD; +15 FT HGR 330 FT FM DSPLCD THLD 549 FT R OF CNTRLN.
    A58-15 +6 FT GROUND 190 FT FM RY END 450 FT L; +10 FT FENCE 480 FT L AT THR.
    A81-APT ACTVT HIRL RY 15/33 & MALSR RY 15 - CTAF.
    E147 TPA: 956 FT AGL LIGHT ACFT, 1356 FT AGL LRG ACFT.
    E60-15 EMAS NON-STD ARRESTING GEAR/SYTEM: ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 387 FT IN LENGTH BY 100 FT WIDTH LCTD 35 FT SETBACK FM DER 15.
    E80 US CUSTOMS USER FEE ARPT.

    Runways

    ADS Airport Runway Summary

    Runways: 15/33
    Longest Runway: 15/33 is 7203 ft (2195 m) long
    Runways with an Instrument Approach: 15, 33

    ADS Airport Runway Details

    Runway 15/33  7203 ft x 100 ft (2195 m x 30 m)
    Runway Length Source:  3RD PARTY SURVEY as of 09/13/2011
    Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
    Runway Pavement Class:
    Runway Edge Lights:  High Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  60.0
    Dual Wheel Landing Gear:  120.
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 15

    Runway 33

    Elevation:
    637 636
    Latitude:
    32-58-40.2276N 32-57-33.3629N
    Longitude:
    096-50-25.8484W 096-49-56.6190W
    True Magnetic Hdg.:
    160 340
    ILS Type:
    ILS/DME ILS/DME
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Precision Instrument Precision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    EMAS
    Object at End:
    TREE BLDG
    Object Height:
    56 131
    Object Marked/Lighted?:
    Distance from End:
    980 225
    Object Centerline Offset:
    500 ft. right of centerline 845 ft. right of centerline
    Visual Glide Slope Indicators:
    4-Light PAPI On Right Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
    REIL:
    Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    60 60
    Threshold Elevation:
    634 639
    Displaced Threshold:
    979 772
    Threshold Latitude:
    32-58-31.1388N 32-57-40.5252N

    Threshold Longitude:

    096-50-21.8750W 096-49-59.7494W
    Declared Distances
    Take Off Run Avbl. (TORA):
    7203 7203
    Take Off Distance Avbl. (TODA):
    7203 7203
    Actual Stop Dist. Avbl. (ASDA):
    7203 7203
    Landing Dist. Avbl. (LDA):
    6224 6431

    Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Fuel Available:
    100LL, Jet A
    Parking:
    Hangars and tiedowns available

    © 1998-2019 AirportGuide.com. All rights reserved.

    AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
    NOT to be used as an official source for flight planning, navigation, or use in flight.
