Location

Latitude:
38-21-08.8000N (38.352444)
Longitude:
097-41-28.7000W (-97.691306)
Elevation:
1498.1 feet MSL (457 m MSL)
Magnetic Variation:
3.8 E (as of July 2019 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
1 N.M. SW of Mc Pherson, Kansas
Found On:
Wichita Chart
FAA Region:
ACE

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
09/1946
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/SAT/0800-1200
Boundary ARTCC:
ZKC (Kansas City)
Responsible ARTCC:
ZKC (Kansas City)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2498 feet (761 m)
NOTAMs Facility:
ICT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  28
Multi Engine:  3
Ultralights:  2

Annual Operations (as of 09/24/2018)

Total Operations:  14500
GA Local:  10000 69.0%
GA Itinerant:  4000 27.6%
Military Aircraft:  500 3.4%

Communications

CTAF:  122.800
Unicom:  122.800
Approach:  WICHITA
125.5
Departure:  WICHITA
125.5
AWOS-3:  119.025 (620-241-2498)



    Contacts

    Manager:
    Publicly owned:
    CYNTHIA PETERSON
    1000 S. 81 BYPASS
    MC PHERSON, KS 67460
    620-241-0684
    COUNTY & CITY OF MC PHERSON
    400 EAST KANSAS
    MC PHERSON, KS 67460
    (620) 245-2535

    Fixed Based Operators (FBOs) & Fuel

    To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
    Click here to be taken to the FAA site where you can start the process to remove your name.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 620

    Business Name Frequency Phone Fuel Grade
    Mac Air Corp

    Unicom 122.8 241-0684 100LL, Jet A, MOGAS
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Wichita(ICT)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF


    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 07/18/19 to 0901Z 08/15/19.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP RNAV (GPS) RWY 18 NC-2
    IAP RNAV (GPS) RWY 36 NC-2
    IAP VOR RWY 36 NC-2
    MIN TAKEOFF MINIMUMS NC-2
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Maps

    Mc Pherson - Mc Pherson (MPR) Airport Terminal Map

    Terminal Map Not Available for this Airport

    MPR Airport Sectional

    Flight Planning
    at skyvector.com

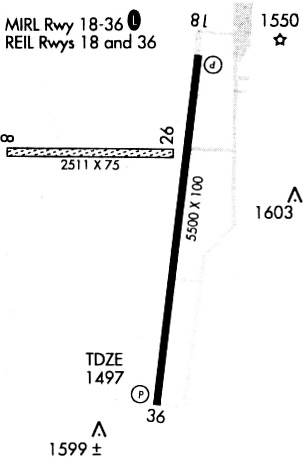

    MPR Airport Diagram


    Do you have a better diagram of this Airport?
    Please share it with us.

    METAR / TAF

    METAR

    TAF

    Navigation Aids (Navaids) near MPR

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    12.4 Moundridge Municipal Airport
    (47K)
    134 130 100LL, MOGAS
    18.9 Hutchinson Regional Airport
    (HUT KHUT HUT)
    204 200 100LL, Jet A
    22.5 Alfred Schroeder Field Airport
    (M66)
    91 88 100LL
    25.3 Lyons-Rice County Municipal Airport
    (LYO KLYO LYO)
    268 264 100LL, MOGAS
    26.4 Salina Regional Airport
    (SLN KSLN SLN)
    3 359 100LL, Jet A
    26.4 Newton-City-County Airport
    (EWK KEWK EWK)
    131 128 100LL, Jet A, MOGAS
    34.8 Ellsworth Municipal Airport
    (9K7)
    313 309 100LL
    39.4 Abilene Municipal Airport
    (K78)
    32 29 100LL, Jet A
    42.4 Prichard Airstrip Airport
    (1KS4)
    39 36 100LL, MOGAS
    42.6 Colonel James Jabara Airport
    (KAAO AAO)
    148 145 100LL, Jet A
    42.7 Ellinwood Municipal Airport
    (1K6)
    271 267 100LL
    43.9 Wichita Dwight D Eisenhower National Airport
    (ICT KICT ICT)
    163 159 100LL, Jet A
    44.1 Lloyd Stearman Field Airport
    (1K1)
    141 138 100LL, Jet A
    44.7 Westport Airport
    (71K)
    160 156 100LL
    45.8 Kingman Airport - Clyde Cessna Field Airport
    (9K8)
    206 202 100LL
    50.1 Augusta Municipal Airport
    (3AU)
    144 141 100LL, Jet A
    53.1 Cook Airfield Airport
    (K50)
    152 149 100LL
    53.9 El Dorado/Captain Jack Thomas Memorial Airport
    (EDK KEQA EQA)
    129 126 100LL, Jet A, MOGAS
    55.0 Great Bend Municipal Airport
    (GBD KGBD GBD)
    269 265 100LL, Jet A
    57.4 Freeman Field Airport
    (3JC)
    43 40 100LL, Jet A

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KMPR NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of KMPR

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:

    Ratings & Reviews

    Mc Pherson Airport Ratings

    Category Aspect Rating
    Overall Rating for Mc Pherson Airport
    • 0.0/5 (0 votes cast)

    Flight Service Number of Flights
    • 3.0/5 (1 vote cast)

    Overall Number of Routes Served
    • 0.0/5 (0 votes cast)

    International Routes Served
    • 0.0/5 (0 votes cast)

    On-time Performance
    • 0.0/5 (0 votes cast)

    Business Services & Internet Airport Lounges
    • 0.0/5 (0 votes cast)

    Business Centers
    • 0.0/5 (0 votes cast)

    Airport Website (information & tools)
    • 0.0/5 (0 votes cast)

    Availability of Internet Connectivity
    • 0.0/5 (0 votes cast)

    Wireless Internet Access
    • 0.0/5 (0 votes cast)

    General Facilities ATM Locations
    • 0.0/5 (0 votes cast)

    Public Telephones
    • 0.0/5 (0 votes cast)

    Restrooms
    • 0.0/5 (0 votes cast)

    Architecture
    • 0.0/5 (0 votes cast)

    Terminal Layout
    • 0.0/5 (0 votes cast)

    Seating Areas
    • 0.0/5 (0 votes cast)

    Overall Cleanliness
    • 0.0/5 (0 votes cast)

    Children Play Areas
    • 0.0/5 (0 votes cast)

    Geographic Location
    • 0.0/5 (0 votes cast)

    Baggage Claim Locations
    • 0.0/5 (0 votes cast)

    Baggage Handling
    • 2.0/5 (1 vote cast)

    Overall Comfort
    • 0.0/5 (0 votes cast)

    Security Lines
    • 0.0/5 (0 votes cast)

    Transportation & Parking Parking Availability
    • 0.0/5 (0 votes cast)

    Parking Pricing
    • 0.0/5 (0 votes cast)

    Public Transport
    • 0.0/5 (0 votes cast)

    Car Rental
    • 0.0/5 (0 votes cast)

    Taxis
    • 0.0/5 (0 votes cast)

    Hotel Shuttles
    • 0.0/5 (0 votes cast)

    Proximity to City Center
    • 0.0/5 (0 votes cast)

    Amenities Shopping (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (price/value)
    • 0.0/5 (0 votes cast)

    Remarks

    A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
    A110-1 PHONE AVBL 24 HRS.
    A110-2 +300 FOOT CONSTRUCTION CRANES OCCASIONALLY AT REFINERY .9 MILES EAST SOUTHEAST OF AIRPORT
    A110-3 AWOS (620) 241-2498 FREQ. 119.025
    A33-18/36 PORTIONS OF TWYS & TIE DOWN AREAS ARE A COMBINATION OF CONCRETE & ASPHALT.
    A42-08 RWY 08 THLD AND EDGE DELINEATED BY YELLOW CONES.
    A42-26 RWY 26 THLD AND EDGE DELINEATED WITH YELLOW CONES.
    A70 100LL IS AVBL BY USE OF CREDIT CARD. JET A AND MO GAS AFTER HOURS CALL MANAGER 620-755-8901
    A81-APT MIRL RY 18/36 PRESET ON LOW INTST TO INCREASE INTST ACTVT - CTAF.

    Runways

    MPR Airport Runway Summary

    Runways: 08/26
    18/36
    Longest Runway: 18/36 is 5502 ft (1677 m) long
    Runways with an Instrument Approach:

    MPR Airport Runway Details

    Runway 08/26  2511 ft x 75 ft (765 m x 23 m)
    Runway Length Source:  as of
    Surface:  Turf - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 08

    Runway 26

    Elevation:
    1494 1493
    Latitude:
    38-21-17.8140N 38-21-18.0070N
    Longitude:
    097-41-55.5160W 097-41-23.9960W
    True Magnetic Hdg.:
    90 270
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Right
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    PLINE PLINE
    Object Height:
    90 54
    Object Marked/Lighted?:
    Marked
    Distance from End:
    3000 1340
    Object Centerline Offset:
    0 ft. left and right of centerline 0 ft. left and right of centerline
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    No No
    Touchdown Lights:
    No No
    Centerline Lights:
    No No
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 18/36  5502 ft x 100 ft (1677 m x 30 m)
    Runway Length Source:  NGS as of 11/13/2006
    Surface:  Turf - Good condition -
    Runway Pavement Class:
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  30.0
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 18

    Runway 36

    Elevation:
    1494 1495
    Latitude:
    38-21-31.6320N 38-20-37.5066N
    Longitude:
    097-41-20.2906W 097-41-27.0245W
    True Magnetic Hdg.:
    186 6
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Right Left
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    0 ft. left and right of centerline 0 ft. left and right of centerline
    Visual Glide Slope Indicators:
    2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    No No
    Centerline Lights:
    No No
    Threshold Crossing Height:
    40 40
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available
