Freeman Field Airport

US Flag

Junction City Weather (°F)

Location

Latitude:
39-02-36.0000N (39.043333)
Longitude:
096-50-35.8000W (-96.843278)
Elevation:
1101.6 feet MSL (336 m MSL)
Magnetic Variation:
3 E (as of July 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
01 N.M. NW of Junction City, Kansas
Found On:
Kansas City Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
MARVIN HORNBOSTEL
RAVEN AREO SERVICES
JUNCTION CITY, KS 66441
(785) 761-7692
CITY OF JUNCTION CITY
PO BOX 287
JUNCTION CITY, KS 66441
785-238-3103

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
09/1949
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0800-1700
Boundary ARTCC:
ZKC (Kansas City)
Responsible ARTCC:
ZKC (Kansas City)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2102 feet (641 m)
NOTAMs Facility:
ICT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  16
Multi Engine:  2

Annual Operations (as of 09/11/2019)

Total Operations:  2700
GA Local:  1350 50.0%
GA Itinerant:  1350 50.0%

Communications

CTAF:  122.800
Unicom:  122.800
Approach:  MARSHALL AAF GCA
121.25
KANSAS CITY ARTCC
Departure:  MARSHALL AAF GCA
121.25
KANSAS CITY ARTCC

  • APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 127.35/257.975 (MANHATTAN RCAG) WHEN MARSHALL APCH CTL (FRI) CLSD.


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 785

Business Name Frequency Phone Fuel Grade
Kansas Air Center

238-1991 100LL, MOGAS
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Wichita(ICT)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 07/15/21 to 0901Z 08/12/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 36 NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near 3JC

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
9.9 Manhattan Regional Airport
(MHK KMHK MHK)
53 50 100LL, Jet A, MOGAS
15.4 Prichard Airstrip Airport
(1KS4)
235 232 100LL, MOGAS
20.1 Abilene Municipal Airport
(K78)
245 242 100LL, Jet A
25.3 Clay Center Municipal Airport
(KCYW CYW)
324 321 100LL
40.7 Salina Regional Airport
(SLN KSLN SLN)
248 245 100LL, Jet A
45.5 Alfred Schroeder Field Airport
(M66)
202 199 100LL
48.3 Blosser Municipal Airport
(CNK KCNK CNK)
309 306 100LL, Jet A+
52.6 Emporia Municipal Airport
(EMP KEMP EMP)
144 142 100LL, Jet A, MOGAS
54.5 Osage City Municipal Airport
(53K)
116 114 100LL (phillips), MOGAS (Conoco)
55.3 Topeka Regional Airport
(FOE KFOE FOE)
95 93 100LL, Jet A
56.9 Philip Billard Municipal Airport
(TOP KTOP TOP)
88 86 100LL, Jet A
57.4 Mc Pherson Airport
(MPR KMPR MPR)
224 221 100LL, Jet A, MOGAS
58.8 Moundridge Municipal Airport
(47K)
211 208 100LL, MOGAS
62.5 Newton-City-County Airport
(EWK KEWK EWK)
199 196 100LL, Jet A, MOGAS
65.0 Moritz Meml Airport
(K61)
293 289 100LL, Jet A
67.1 Ellsworth Municipal Airport
(9K7)
255 251 100LL
68.7 Coffey County Airport
(KUKL UKL)
129 127 100LL, Jet A
69.9 Fairbury Municipal Airport
(FBY KFBY FBY)
347 344 100LL
71.4 Sabetha Municipal Airport
(K83)
43 41 100LL
75.6 Beatrice Municipal Airport
(BIE KBIE BIE)
3 0 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL 3JC NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 3JC

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 3JC

Remarks

A110-1 ARPT SFC CONDS: RWY, TWY & APRON FAIR. TURF SOFT WHEN WET.
A110-3 NON-STD ATC MINIMA APPLIED IFR ARVLS WITH RESPECT TO HI-PERFORMANCE-ACFT OPNS CONDUCTED WITHIN CFNS OF R-3602.
A110-5 WATERFOWL ON & INVOF ARPT.
A110-6 FOR CD CTC MARSHALL APCH AT 785-239-2118. WHEN MARSHALL APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A110-7 COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -23C.
A110-8 BASEBALL FIELD LGT POLES 918 FT TO 1303 FT FM RWY END, 338 FT TO 672 FT RIGHT, 1175 FT AMSL.
A14 FBO PHONE (785) 761-7692
A40-18/36 RYS 18 & 36 NSTD THLD LGTS: COLOR AND SIX LGT DELINEATION.
A42-05 APCH END RWY 05/23 MKD WITH BLUE & WHITE PLASTIC BARRELS.
A42-13 APCH END OF RWY 13 IS DELINEATED WITH BLUE & WHITE PLASTIC BARRELS & YELLOW PAINTED TIRES.
A42-31 RWY 31 APCH END RWY 31 IS DELIN WITH BLUE & WHITE BARRELS
A81-APT ACTVT MIRL RWY 18/36 - CTAF.

Runways

Runway Summary

Runways: 05/23
13/31
18/36
Longest Runway: 18/36 is 3498 ft (1066 m) long
Runways with an Instrument Approach:

3JC Airport Runway Details

Runway 05/23  1834 ft x 200 ft (559 m x 61 m)
Runway Length Source:  3RD PARTY SURVEY as of 12/01/2010
Surface:  Turf - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 05

Runway 23

Elevation:
1097.4 1088.1
Latitude:
39-02-29.0349N 39-02-39.0853N
Longitude:
096-50-41.5455W 096-50-22.2056W
True Magnetic Hdg.:
057 237
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
TREES POLE
Object Height:
44 37
Object Marked/Lighted?:
Distance from End:
873 396
Object Centerline Offset:
0 ft. left and right of centerline 125 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 13/31  1903 ft x 140 ft (580 m x 43 m)
Runway Length Source:  3RD PARTY SURVEY as of 12/01/2010
Surface:  Turf - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 13

Runway 31

Elevation:
1093.5 1094.1
Latitude:
39-02-37.5343N 39-02-23.1258N
Longitude:
096-50-39.0275W 096-50-23.5288W
True Magnetic Hdg.:
140 320
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
TREES TREES
Object Height:
36 55
Object Marked/Lighted?:
Distance from End:
518 1410
Object Centerline Offset:
0 ft. left and right of centerline 125 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 18/36  3498 ft x 75 ft (1066 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 12/01/2010
Surface:  Turf - Good condition -
Runway Pavement Class:  5 /F/C/Y/U
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  10.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 18

Runway 36

Elevation:
1086.2 1101.6
Latitude:
39-02-56.8357N 39-02-23.2412N
Longitude:
096-50-35.0879W 096-50-45.5524W
True Magnetic Hdg.:
194 014
ILS Type:
Glide Path Angle:
3.0 degrees 3.5 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Nonprecision Instrument
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
POLE POLE
Object Height:
14 30
Object Marked/Lighted?:
Lighted Lighted
Distance from End:
565 988
Object Centerline Offset:
0 ft. left and right of centerline 125 ft. left of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
43 43
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Minor
Powerplant Repair:
Minor
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

3JC Airport Sectional

Flight Planning
at skyvector.com

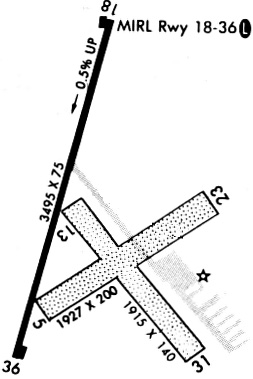

3JC Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
