Malvern Municipal Airport

US Flag

Malvern Weather (°F)

Location

Latitude:
34-19-59.9370N (34.333316)
Longitude:
092-45-41.3980W (-92.761499)
Elevation:
538.0 feet MSL (164 m MSL)
Magnetic Variation:
0.3 E (as of September 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
03 N.M. SE of Malvern, Arkansas
Found On:
Memphis Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
JOHN NEELY
115 AIRPORT ROAD
MALVERN, AR 72104
501-337-9939
CITY OF MALVERN
305 LOCUST
MALVERN, AR 72104
501-332-3638

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
01/1964
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/MON-FRI/0730-1630
Boundary ARTCC:
ZME (Memphis)
Responsible ARTCC:
ZME (Memphis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1538 feet (469 m)
NOTAMs Facility:
JBR
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  18
Multi Engine:  3
GA Helicopters:  2

Annual Operations (as of 03/31/2019)

Total Operations:  12000
GA Local:  9500 79.2%
GA Itinerant:  2350 19.6%
Military Aircraft:  150 1.2%

Communications

CTAF:  122.800
Unicom:  122.800

  • APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 128.475/377.15 (HOT SPRINGS RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 870

Business Name Frequency Phone Fuel Grade
D-1 Aviation

Unicom 122.8 332-6376 100LL
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Jonesboro(JBR)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 09/09/21 to 0901Z 10/07/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 22 SC-1
MIN TAKEOFF MINIMUMS SC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near M78

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Notices to Airmen (NOTAMS)

NOTAMs

List ALL M78 NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of M78

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of M78

Remarks

A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1 FOR CD CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911.
A57-22 APCH RATIO 25:1 FM DSPLCD THLD.
A58-04 +5 FT POST 150 FT RIGHT FM RY END.
A58-22 ROAD & 4 FT FENCE 28 FT FM THLD.
A70-FUEL-10 0LL FOR SVC AFT HRS CALL 501-337-9939
A81-APT ACTVT MIRL RY 04/22 - CTAF.

Runways

Runway Summary

Runways: 04/22
Longest Runway: 04/22 is 3188 ft (972 m) long
Runways with an Instrument Approach:

M78 Airport Runway Details

Runway 04/22  3188 ft x 60 ft (972 m x 18 m)
Runway Length Source:  as of
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  10.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 04

Runway 22

Elevation:
538.0 533.0
Latitude:
34-19-47.4830N 34-20-12.4000N
Longitude:
092-45-53.0460W 092-45-29.7390W
True Magnetic Hdg.:
038 218
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
TREES
Object Height:
41
Object Marked/Lighted?:
Distance from End:
725
Object Centerline Offset:
325 ft. right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
533.4
Displaced Threshold:
376
Threshold Latitude:
34-20-09.4600N

Threshold Longitude:

092-45-32.4900W
Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL
Landing Fees:
No
Parking:
Tiedowns available

Maps & Diagrams

M78 Airport Sectional

Flight Planning
at skyvector.com

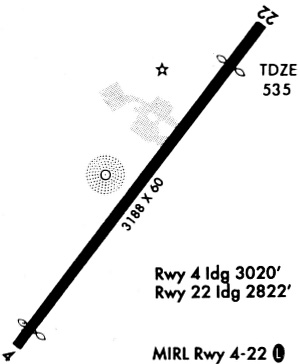

M78 Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
