Hebron Municipal Airport

US Flag

ICAO: KHJH

FAA: HJH


View AFD

View Notices
METAR: KHJH 301635Z AUTO 32005KT 10SM -RA OVC044 05/03 A2959 RMK AO2 T00530032

TAF: N/A

Reporting Station: KHJH (0.2 NM at True Heading of 217)
Visibility: 10+SM
Flight Category: VFR
Altimeter: 1002.1
Temperature: 5.3 C (41.54 F)
Dewpoint: 3.2 C (37.76 F)

Location

Latitude:
 40-09-07.0000N (40.151944)
Longitude:
 097-35-04.3000W (-97.584528)
Elevation:
 1468.2 feet MSL (448 m MSL)
Magnetic Variation:
 3.2 E (as of December 2024 from WMM2020 model)
Time Zone:
 UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
 01 N.M. S of Hebron, Nebraska
Found On:
 Omaha Chart
FAA Region:
 ACE

Contacts

Manager:
Publicly owned:
WILLIAM LINTON
1115 OLIVE AVE
HEBRON, NE 68370-1317
(402) 768-6597		 HEBRON ARPT AUTHORITY
P.O. BOX 256
HEBRON, NE 68370-0256
(402) 768-6597

Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Activation Date:
 03/1941
Control tower:
 No
Attendance (Months/Days/Hours):
 Months/Days/Hours
Unattended
Boundary ARTCC:
 ZMP (Minneapolis)
Responsible ARTCC:
 ZMP (Minneapolis)
Lighting Schedule:
 SEE RMK
Segmented Circle Indicator:
 Yes
Traffic Pattern Altitude (MSL):
 2468 feet (752 m)
NOTAMs Facility:
 HJH
NOTAM-D Service:
 Yes
International Airport of Entry:
 No
Customs Landing Rights:
 No
Military Landing Rights:
 No
Civil/Military Joint Use:
 No

Based Aircraft

Annual Operations (as of )

Communications

CTAF:  122.900
AWOS-3:  118.525 (402-768-2501)

  • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 126.4/317.7 (MARYSVILLE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 402
Business Name Frequency Phone Fuel Grade
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 10/03/24 to 0901Z 10/31/24.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP GPS RWY 30 NC-2
IAP RNAV (GPS) RWY 12 NC-2
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KHJH

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
19.2 Fairbury Municipal Airport
(FBY KFBY FBY)		 84 81 100LL
22.8 Superior Municipal Airport
(12K)		 253 250 100LL
26.1 Fairmont State Airport
(KFMZ FMZ)		 1 358 100LL
36.3 Blosser Municipal Airport
(CNK KCNK CNK)		 184 181 100LL, Jet A+
37.6 Harvard State Airport
(08K)		 323 320 100LL
39.1 Beatrice Municipal Airport
(BIE KBIE BIE)		 76 73 100LL, Jet A
41.1 Crete Municipal Airport
(KCEK CEK)		 46 43 100LL, Jet A
44.7 York Municipal Airport
(KJYR JYR)		 357 354 100LL, Jet A
47.2 Hastings Municipal Airport
(HSI KHSI HSI)		 305 301 100LL, Jet A
47.9 Moritz Meml Airport
(K61)		 211 208 100LL, Jet A
48.3 Aurora Municipal/Al Potter Field Airport
(KAUH AUH)		 337 334 100LL
49.9 Clay Center Municipal Airport
(KCYW CYW)		 156 153 100LL
56.4 Lincoln Airport
(LNK KLNK LNK)		 41 38 100LL, Jet A
59.1 Central Nebraska Regional Airport
(GRI KGRI GRI)		 326 322 100LL, Jet A
66.0 Pioneer Village Field Airport
(0V3)		 289 285 100LL
66.4 Osborne Municipal Airport
(K75)		 229 225 100LL
68.0 David City Municipal Airport
(93Y)		 17 14 100LL
73.5 Kearney Regional Airport
(EAR KEAR EAR)		 298 294 100LL, Jet A
73.9 Manhattan Regional Airport
(MHK KMHK MHK)		 144 141 100LL, Jet A, MOGAS
74.8 Freeman Field Airport
(3JC)		 152 149 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KHJH NOTAMs
View KHJH NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KHJH

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KHJH

Remarks

A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1 APCHS PROTECTED BY STRUCTURE CTL ORDINANCE.
A110-2 FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-03 MKD WITH REFLECTORS & YELLOW CONES.
A42-21 MKD WITH REFLECTORS & YELLOW CONES.
A54-03 RWY 21 8 FT TALL CORN IN SUMMER CAN CREATE 22:1.
A54-21 RWY 21 8 FT TALL CORN IN SUMMER CAN CREATE 22:1.
A70-FUEL-10 0LL FUEL AVBL H24 VIA CREDIT CARD. IF UNAVBL CALL (402) 768-6597.
A71 AIRFRAME RPRS BY APNTMT ONLY.
A72 PWR PLANT RPRS BY APNTMT ONLY.
A75 TNST HNGR SPACE CALL FOR AVBLTY (402) 765-5697.
A81-APT ACTVT MIRL RY 12/30; PAPI & REIL RYS 12 & 30 - CTAF.

Runways

Runway Summary

Runways: 03/21
12/30
Longest Runway: 12/30 is 3600 ft (1097 m) long
Runways with an Instrument Approach:

KHJH Airport Runway Details

Runway 03/21  2513 ft x 150 ft (766 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 12/07/2011
Surface:  Turf - Fair condition - No special surface treatment

Runway 03

Runway 21
Elevation:
 1468.2 1451.8
Latitude:
 40-08-56.2314N 40-09-14.7520N
Longitude:
 097-35-02.3551W 097-34-40.8044W
Runway True Alignment:
 042 222
Glide Path Angle:
 0.0 degrees 0.0 degrees
Traffic Pattern:
 Left Left
Object at End:
 TREES
Object Height:
 54
Distance from End:
 1085
Object Centerline Offset:
 222 ft. right of centerline

Runway 12/30  3600 ft x 60 ft (1097 m x 18 m)
Runway Length Source:  3RD PARTY SURVEY as of 12/07/2011
Surface:  Turf - Fair condition - No special surface treatment
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0

Runway 12

Runway 30
Elevation:
 1462.2 1465.6
Latitude:
 40-09-19.1814N 40-08-57.0820N
Longitude:
 097-35-31.2895W 097-34-54.9570W
Runway True Alignment:
 128 308
Glide Path Angle:
 3.9 degrees 3.0 degrees
Traffic Pattern:
 Left Left
Runway Markings Type:
 Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Object at End:
 TREE ROAD
Object Height:
 61 27
Distance from End:
 1428 743
Object Centerline Offset:
 222 ft. right of centerline
Visual Glide Slope Indicators:
 2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
REIL:
 Yes Yes
Threshold Crossing Height:
 52 40

Services

Airframe Repair:
 Major
Powerplant Repair:
 Major
Bottled Oxygen:
 None
Bulk Oxygen:
 None
Fuel Available:
 100LL, Jet A
Landing Fees:
 No
Parking:
 Hangars and tiedowns available

Maps & Diagrams

KHJH Sectional

Flight Planning
at skyvector.com

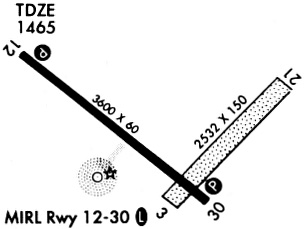

KHJH Diagram
