Fairbury Municipal Airport

US Flag

Fairbury Weather (°F)

Location

Latitude:
40-10-55.1000N (40.181972)
Longitude:
097-10-04.4000W (-97.167889)
Elevation:
1478.6 feet MSL (451 m MSL)
Magnetic Variation:
3.2 E (as of June 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
03 N.M. NE of Fairbury, Nebraska
Found On:
Omaha Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
SANDI DECKER
56869 714 ROAD
FAIRBURY, NE 68352-4039
402-729-7161
FAIRBURY AIRPORT AUTHORITY
56869 714 ROAD
FAIRBURY, NE 68352-4039
(402) 729-2250

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
04/1940
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
Unattended
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2479 feet (756 m)
NOTAMs Facility:
OLU
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  17
Multi Engine:  2

Annual Operations (as of 08/01/2018)

Total Operations:  6700
Air Taxi:  100 1.5%
GA Local:  5000 74.6%
GA Itinerant:  1500 22.4%
Military Aircraft:  100 1.5%

Communications

CTAF:  122.700
Unicom:  122.700

  • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 126.4/317.7 (MARYSVILLE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 402

Business Name Frequency Phone Fuel Grade
Engels Aircraft

Unicom 122.7 729-3248 100LL
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Columbus(OLU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 06/17/21 to 0901Z 07/15/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP NDB-A NC-2
IAP RNAV (GPS) RWY 17 NC-2
IAP RNAV (GPS) RWY 35 NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near FBY

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
20.3 Beatrice Municipal Airport
(BIE KBIE BIE)
69 66 100LL, Jet A
28.4 Crete Municipal Airport
(KCEK CEK)
22 19 100LL, Jet A, MOGAS
30.5 Fairmont State Airfield Airport
(KFMZ FMZ)
322 319 100LL
41.8 Superior Municipal Airport
(12K)
259 255 100LL
44.0 Blosser Municipal Airport
(CNK KCNK CNK)
210 207 100LL, Jet A+
44.3 Lincoln Airport
(LNK KLNK LNK)
24 21 100LL, Jet A
47.6 York Municipal Airport
(KJYR JYR)
334 331 100LL, Jet A
47.7 Clay Center Municipal Airport
(KCYW CYW)
179 176 100LL
50.3 Harvard State Airport
(08K)
304 300 100LL
57.0 Aurora Municipal - Al Potter Field Airport
(KAUH AUH)
318 314 100LL
61.5 Moritz Meml Airport
(K61)
226 222 100LL, Jet A
62.9 Hastings Municipal Airport
(HSI KHSI HSI)
294 290 100LL, Jet A
62.9 David City Municipal Airport
(93Y)
1 358 100LL, MOGAS
63.4 Browns Airport
(EPG NE69)
49 47 100LL
64.3 Farington Field Airport
(K01)
78 76 100LL
64.7 Nebraska City Municipal Airport
(KAFK AFK)
66 64 100LL, Jet A
65.9 Sabetha Municipal Airport
(K83)
104 102 100LL
66.5 Manhattan Regional Airport
(MHK KMHK MHK)
159 156 100LL, Jet A, MOGAS
68.7 Wahoo Municipal Airport
(KAHQ AHQ)
22 19 100LL, Jet A
69.9 Freeman Field Airport
(3JC)
167 164 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KFBY NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KFBY

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KFBY

Remarks

A110-1 FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A70 24 HR SELF SVC FUEL AVBL VIA CREDIT CARD SYSTEM.
A81-APT ACTVT MIRL RY 17/35; PAPI AND REIL RYS 17 & 35 - CTAF.

Runways

Runway Summary

Runways: 11/29
17/35
Longest Runway: 17/35 is 3700 ft (1128 m) long
Runways with an Instrument Approach:

FBY Airport Runway Details

Runway 11/29  2487 ft x 150 ft (758 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/04/2013
Surface:  Turf - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 11

Runway 29

Elevation:
1471.7 1456.8
Latitude:
40-10-55.9236N 40-10-43.4272N
Longitude:
097-10-10.8987W 097-09-43.3055W
True Magnetic Hdg.:
120 300
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
ROAD
Object Height:
11
Object Marked/Lighted?:
Distance from End:
291
Object Centerline Offset:
154 ft. right of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 17/35  3700 ft x 75 ft (1128 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/04/2013
Surface:  Turf - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  12.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
1478.6 1463.8
Latitude:
40-11-16.9644N 40-10-40.4042N
Longitude:
097-10-09.1619W 097-10-09.5334W
True Magnetic Hdg.:
180 000
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
ROAD
Object Height:
14
Object Marked/Lighted?:
Distance from End:
824
Object Centerline Offset:
154 ft. right of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
40 40
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

FBY Airport Sectional

Flight Planning
at skyvector.com

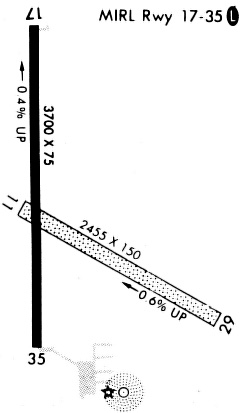

FBY Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
