Location

Latitude:
39-40-43.4000N (39.678722)
Longitude:
075-36-23.9000W (-75.606639)
Elevation:
79.9 feet MSL (24 m MSL)
Magnetic Variation:
11.7 W (as of November 2019 from WMM2015 model)
Time Zone:
UTC -5.0 (Standard Time)
UTC -4.0 (Daylight Savings Time)
From City:
4 N.M. S of Wilmington, Delaware
Found On:
Washington Chart
FAA Region:
AEA

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
05/1943
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/ALL
Boundary ARTCC:
ZDC (Washington)
Responsible ARTCC:
ZNY (New York)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1080 feet (329 m)
NOTAMs Facility:
ILG
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
Yes
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: B
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  85
Multi Engine:  21
Jet Engine:  68
GA Helicopters:  4
Military Aircraft:  20

Annual Operations (as of 12/31/2018)

Total Operations:  41576
Commercial:  21 0.1%
Air Taxi:  3855 9.3%
GA Local:  11175 26.9%
GA Itinerant:  22071 53.1%
Military Aircraft:  4454 10.7%

Communications

CTAF:  126.000
Unicom:  122.950
Tower:  WILMINGTON
126.0
352.05
Hrs: 0630-2300
Clearance Del.:  119.95
Ground:  121.7
275.8
Approach:  PHILADELPHIA
118.35
Departure:  PHILADELPHIA
118.35
ATIS:  123.95
Hrs: 24
ASOS:  (302-328-1536)
EMERG:  121.5
EMERG:  243.0
ARNG OPS:  46.9FM

  • CLEARANCE DELIVERY PHILADELPHIA APCH TF 800-354-9884.


Contacts

Manager:
Publicly owned:
BENJAMIN CLENDANIEL
151 N. DUPONT HIGHWAY
NEW CASTLE, DE 19720-0071
(302) 229-6315
DELAWARE RIVER & BAY AUTHORITY
151 N. DUPONT HIGHWAY
NEW CASTLE, DE 19720-0071
(302) 571-6445

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 302

Business Name Frequency Phone Fuel Grade
Aero Taxi

328-3430, 800-551-8555 100LL, Jet A
Dassault Falcon Jet

Unicom 122.95 322-7363, 800-441-9390 100LL, Jet A
Delaware Skyways

328-8090
FBO AvCenter

Unicom 122.95 328-9695 100LL, Jet A
Avfuel aviation fuel
Avfuel
100LL - 2.88 USD per gallon
on 10/1/01
24 Hour Self Serve Credit Card Pumps
Avfuel aviation fuel
Avfuel
Jet A - 2.73 USD per gallon
on 10/1/01
24 Hour Self Serve Credit Card Pumps
FlightSafety International

328-7548, 800-733-7548
Hangar 6 Aero Service

Unicom 123.3 325-2703
J Harris Aviation

521-9924, 838-0533
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Millville(MIV)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 11/07/19 to 0901Z 12/05/19.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM NE-3
HOT HOT SPOT NE-3
IAP ILS OR LOC RWY 01 NE-3
IAP RNAV (GPS) RWY 01 NE-3
IAP RNAV (GPS) RWY 09 NE-3
IAP RNAV (GPS) RWY 19 NE-3
IAP RNAV (GPS) RWY 27 NE-3
IAP VOR RWY 09 NE-3
IAP VOR RWY 27 NE-3
LAH LAHSO NE-3
MIN ALTERNATE MINIMUMS NE-3
MIN TAKEOFF MINIMUMS NE-3
STAR BUNTS TWO NE-3
STAR CEDAR LAKE NINE NE-3
STAR JIIMS THREE (RNAV) NE-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Wilmington - New Castle (ILG) Airport Terminal Map

Terminal Map Not Available for this Airport

ILG Airport Sectional

Flight Planning
at skyvector.com

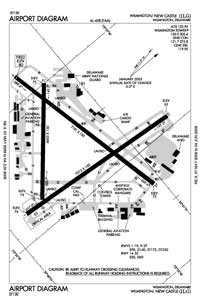

ILG Airport Diagram

New Castle Airport (ILG) Diagram
Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near ILG

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
10.9 Summit Airport
(EVY KEVY EVY)
209 221 100LL, Jet A
11.8 New Garden Airport
(N57)
320 332 100LL
13.7 Claremont Airport
(58M)
242 254 100LL
17.8 Philadelphia Seaplane Base
(PSQ 9N2)
52 64 80
18.7 Brandywine Regional Airport
(KOQN OQN)
3 15 100LL, Jet A
20.5 Philadelphia International Airport
(PHL KPHL PHL)
55 67 100LL, Jet A
20.7 Ransome Heliport
(42PA)
2 14 Jet A
21.6 Chester County G O Carlson Airport
(CTH KMQS MQS)
326 338 100LL, Jet A
22.5 Smyrna Airport
(38N)
177 189 100LL, MOGAS
26.5 Cross Keys Airport
(17N)
86 98 100LL, Jet A
27.6 Delaware Airpark Airport
(33N)
179 191 100LL
28.3 Harford County Airport
(0W3)
256 267 100LL, Jet A
29.1 Chandelle Estates Airport
(0N4)
168 180 100LL, MOGAS
30.7 Vineland-Downstown Airport
(28N)
105 117 100LL, Jet A
31.0 Millville Municipal Airport
(MIV KMIV MIV)
126 138 100LL, Jet A
31.0 Camden County Airport
(19N)
78 90 100LL, Jet A
31.2 Morgantown Airport
(O03)
337 349 100LL
31.7 Wings Field Airport
(BBX KLOM LOM)
29 41 100LL, Jet A
33.7 Heritage Field Airport
(PTW KPTW PTW)
3 15 100LL, Jet A
35.0 Smoketown Airport
(S37)
308 320 100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KILG NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KILG

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

New Castle Airport Ratings

Category Aspect Rating
Overall Rating for New Castle Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 0.0/5 (0 votes cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 0.0/5 (0 votes cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 0.0/5 (0 votes cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 0.0/5 (0 votes cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 1.0/5 (1 vote cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 0.0/5 (0 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 0.0/5 (0 votes cast)

Security Lines
  • 0.0/5 (0 votes cast)

Transportation & Parking Parking Availability
  • 0.0/5 (0 votes cast)

Parking Pricing
  • 0.0/5 (0 votes cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 4.0/5 (1 vote cast)

Hotel Shuttles
  • 0.0/5 (0 votes cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Remarks

A11 LEASEE. PROPERTY OWNED BY NEW CASTLE COUNTY 87 READS WAY NEW CASTLE, DE 19720. TEL 302-395-5990.
A110-1 RWY 14/32 CLSD TO AIR CARRIER OPS.
A110-11 WHEN ATCT CLSD, PILOTS MUST ANNOUNCE INTENTIONS OVER CTAF BEFORE LDGS; TKOFS OR GND TRAVEL ON RYS & TWYS.
A110-12 PVT GND VEHICLES CROSS TWY A BTN TWYS A4 & C.
A110-14 WHEN ATCT CLSD ANNOUNCE EMERGENCIES ON CTAF DIRECTLY TO ARFF STATION.
A110-15 ANG: EXPECT INCR BIRD ACT (INCL WATERFOWL) DUR BASH PHASE II (OCT - MAR). CTC ANG OPS FOR CURRENT BIRD WATCH COND.
A110-16 TERMINAL APRON CLSD EXCEPT AIR CARRIER.
A110-18 ARNG - OPR 1200-2130Z++ WKD (OPEN ADDN HR FOR SKED TRNG), CLSD SAT, SUN AND HOL. PPR ONLY DSN 440-7205, C302-326-7205. LTD TRAN MAINT, SVC, PRK. CTC GRIFFIN OPS 46.90 10 MIN OUT.
A110-2 BIRDS ON & INVOF ARPT.
A110-20 FOR CD WHEN ATCT IS CLSD CTC PHL APCH AT (800) 354-9884.
A110-21 TRML APRON FENCE LINE 118 FT E OF TWY A CNTRLN.
A110-3 RWY 09/27 NO TGL FOR TURBO JET 2300-0700.
A110-4 TAXILANE 'G' NORTHWEST OF TWY 'H' LTD TO ACFT WITH WINGSPAN OF 79 FT OR LESS. TAXILANE 'G' SECTION BTW TWY 'H' & TWY 'G1' LTD TO ACFT WITH WINGSPAN OF 49 FT OR LESS.
A24 LNDG FEE FOR ALL ACFT OVER 7500 LBS EXCEPT FEDERAL GOVT; MILITARY.
A40-14/32 RWY 14/32 NON-STANDARD MILITARY ASSAULT LANDING ZONE (ALZ) LIGHTING.
A81-APT WHEN TWR CLSD ACTVT MALSR RWY 01; REIL RWY 09, 27 & 19; HIRL RWY 01/19 & 09/27; MIRL RWY 14/32 - CTAF.
E60-19 ENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 303 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT DER 19.

Runways

ILG Airport Runway Summary

Runways: 01/19
09/27
14/32
Longest Runway: 09/27 is 7275 ft (2217 m) long
Runways with an Instrument Approach: 01, 09

ILG Airport Runway Details

Runway 01/19  7012 ft x 150 ft (2137 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 07/12/2016
Surface:  Asphalt - Fair condition - Saw-cut or plastic grooved
Runway Pavement Class:  59 /F/A/W/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  90.0
Dual Wheel Landing Gear:  140.
Dual Tandem Wheel Landing Gear:  250.0
Dual Dual Tandem Wheel Landing Gear:

Runway 01

Runway 19

Elevation:
75 61
Latitude:
39-40-09.4512N 39-41-18.4759N
Longitude:
075-36-13.7635W 075-36-05.8278W
True Magnetic Hdg.:
5 185
ILS Type:
ILS
Glide Path Angle:
0.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
EMAS
Object at End:
ROAD TREES
Object Height:
8 72
Object Marked/Lighted?:
Distance from End:
500 1240
Object Centerline Offset:
0 ft. left and right of centerline 500 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Touchdown Rollout
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
55
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
7012 7012
Take Off Distance Avbl. (TODA):
7012 7012
Actual Stop Dist. Avbl. (ASDA):
7012 7012
Landing Dist. Avbl. (LDA):
7012 7012

Runway 09/27  7275 ft x 150 ft (2217 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 07/12/2016
Surface:  Asphalt - Fair condition - Saw-cut or plastic grooved
Runway Pavement Class:  55 /F/A/W/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  90.0
Dual Wheel Landing Gear:  140.
Dual Tandem Wheel Landing Gear:  250.0
Dual Dual Tandem Wheel Landing Gear:

Runway 09

Runway 27

Elevation:
80 71
Latitude:
39-40-41.0333N 39-40-56.2963N
Longitude:
075-37-14.1125W 075-35-43.1884W
True Magnetic Hdg.:
78 258
ILS Type:
MLS
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES TREES
Object Height:
49 64
Object Marked/Lighted?:
Distance from End:
1125 1000
Object Centerline Offset:
0 ft. left and right of centerline 500 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
61 54
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
7275 7275
Take Off Distance Avbl. (TODA):
7275 7275
Actual Stop Dist. Avbl. (ASDA):
7000 7000
Landing Dist. Avbl. (LDA):
7000 7000

Runway 14/32  4602 ft x 150 ft (1403 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 07/12/2016
Surface:  Asphalt - Fair condition -
Runway Pavement Class:  45 /F/A/X/T
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  50.0
Dual Wheel Landing Gear:  60.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
75 74
Latitude:
39-40-48.8977N 39-40-19.1573N
Longitude:
075-37-00.0848W 075-36-15.5571W
True Magnetic Hdg.:
131 311
ILS Type:
Glide Path Angle:
0.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES
Object Height:
43 0
Object Marked/Lighted?:
Distance from End:
720 0
Object Centerline Offset:
0 ft. left and right of centerline 500 ft. left of centerline
Visual Glide Slope Indicators:
4-Box VASI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
28
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
4602 4602
Take Off Distance Avbl. (TODA):
4602 4602
Actual Stop Dist. Avbl. (ASDA):
4602 4602
Landing Dist. Avbl. (LDA):
4602 4602

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Fuel Available:
100LL
Landing Fees:
No
Parking:
Tiedowns available

© 1998-2019 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
