  • Location

    Latitude:
    31-04-02.1000N (31.067250)
    Longitude:
    097-49-44.1000W (-97.828917)
    Elevation:
    1015.3 feet MSL (309 m MSL)
    Magnetic Variation:
    3.8 E (as of August 2018 from WMM2015 model)
    Time Zone:
    UTC -6.0 (Standard Time)
    UTC -5.0 (Daylight Savings Time)
    From City:
    6 N.M. SW of Fort Hood/Killeen, Texas
    Found On:
    San Antonio Chart
    FAA Region:
    ASW
  • Airport Operations

    Airport Status:
    Operational
    Facility Use:
    Public
    Type:
    Airport
    Control tower:
    Yes
    Attendance (Months/Days/Hours):
    Months/Days/Hours
    ALL/ALL/ALL
    Boundary ARTCC:
    ZHU (Houston)
    Responsible ARTCC:
    ZFW (Fort Worth)
    Lighting Schedule:
    SS-SR
    Segmented Circle Indicator:
    No
    Beacon Color:
    Split-White-Green (Lighted Military Airport)
    Traffic Pattern Altitude:
    2015 feet (614 m)
    NOTAMs Facility:
    GRK
    NOTAM-D Service:
    Yes
    Military Landing Rights:
    No
    Civil/Military Joint Use:
    Yes
    Aircraft Rescue and Firefighting:
    Class I
    ARFF Index: E
    Air Carrier Service: Scheduled
    Certification Date: 08/1990

    Based Aircraft

    Military Aircraft:  40

    Annual Operations (as of 04/30/2018)

    Total Operations:  25343
    Commercial:  7176 28.3%
    GA Itinerant:  60 0.2%
    Military Aircraft:  18107 71.4%
  • Communications

    CTAF:  120.750
    Tower:  GRAY
    120.75
    285.5
    Hrs: 24
    Clearance Del.:  126.2
    251.1
    Ground:  121.8
    279.5
    Approach:  GRAY
    120.075
    323.15
    Hrs: 24
    Departure:  GRAY
    120.075
    323.15
    Hrs: 24
    ATIS:  124.9
    Hrs: 24
    RDR:  118.95
    EMERG:  243.0
    RANGE CTL:  38.3FM
    PMSV GRAY METRO:  41.2
    EMERG:  121.5
    RANGE CTL:  30.45
    PTD:  305.15
    PTD:  125.05
    PMSV:  306.5
    FT HOOD FLT FLW:  141.175
    FT HOOD FLT FLW:  357.9

    • PAR RWYS 15-33 LOCATED AT LAT 31-04-06.94N LONG 097-49-40.47W. ELEV 1012.2.
    • FREQ 241.0 UNMTO.
    • PMSV GRAY METRO: 3RD WS, ROBERT GRAY AAF, DSN 738-9400/9620 C254-288-9400/9620. FULL SVC AVBL H24 OR REMOTE BRIEFING SVC AVBL 26 OWS BARKSDALE AFB, DSN 331-2651 C318-529-2651.
    • ASR ELEV 1171.1 PER NGS.
    • ATCT-ARAC.

  • Contacts

    Manager:
    Army owned:
    MATTHEW VAN VALKENBURGH, A.A.E
    8101 S CLEAR CREEK RD, BOX C
    KILLEEN, TX 76549
    254-501-8700
    US ARMY AERONAUTICAL SVCS AGENCY

    FT BELVOIR, VA 22060
  • Fixed Based Operators (FBOs) & Fuel

    If you are in the EU then you may be asked to comply with the cookie and privacy policy of our partner web sites offering these travel products. Don't be concerned as they want to be doubly sure you know how your data is being used.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 254

    Business Name Frequency Phone Fuel Grade
    To add, modify, or delete a business click here.

  • Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  San Angelo(SJT)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

  • Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 08/16/18 to 0901Z 09/13/18.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    APD AIRPORT DIAGRAM SC-3
    DP CONRA TWO SC-3
    DP LAMPS SIX SC-3
    DP LAMPS SIX[DELIMITER] CONT.1 SC-3
    IAP COPTER VOR RWY 33 SC-3
    IAP ILS OR LOC RWY 15 SC-3
    IAP ILS OR LOC RWY 33 SC-3
    IAP RNAV (GPS) RWY 15 SC-3
    IAP RNAV (GPS) RWY 33 SC-3
    IAP VOR-A SC-3
    IAP VOR/DME RWY 15 SC-3
    MIN ALTERNATE MINIMUMS SC-3
    MIN RADAR MINIMUMS SC-3
    MIN TAKEOFF MINIMUMS SC-3
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
  • Maps

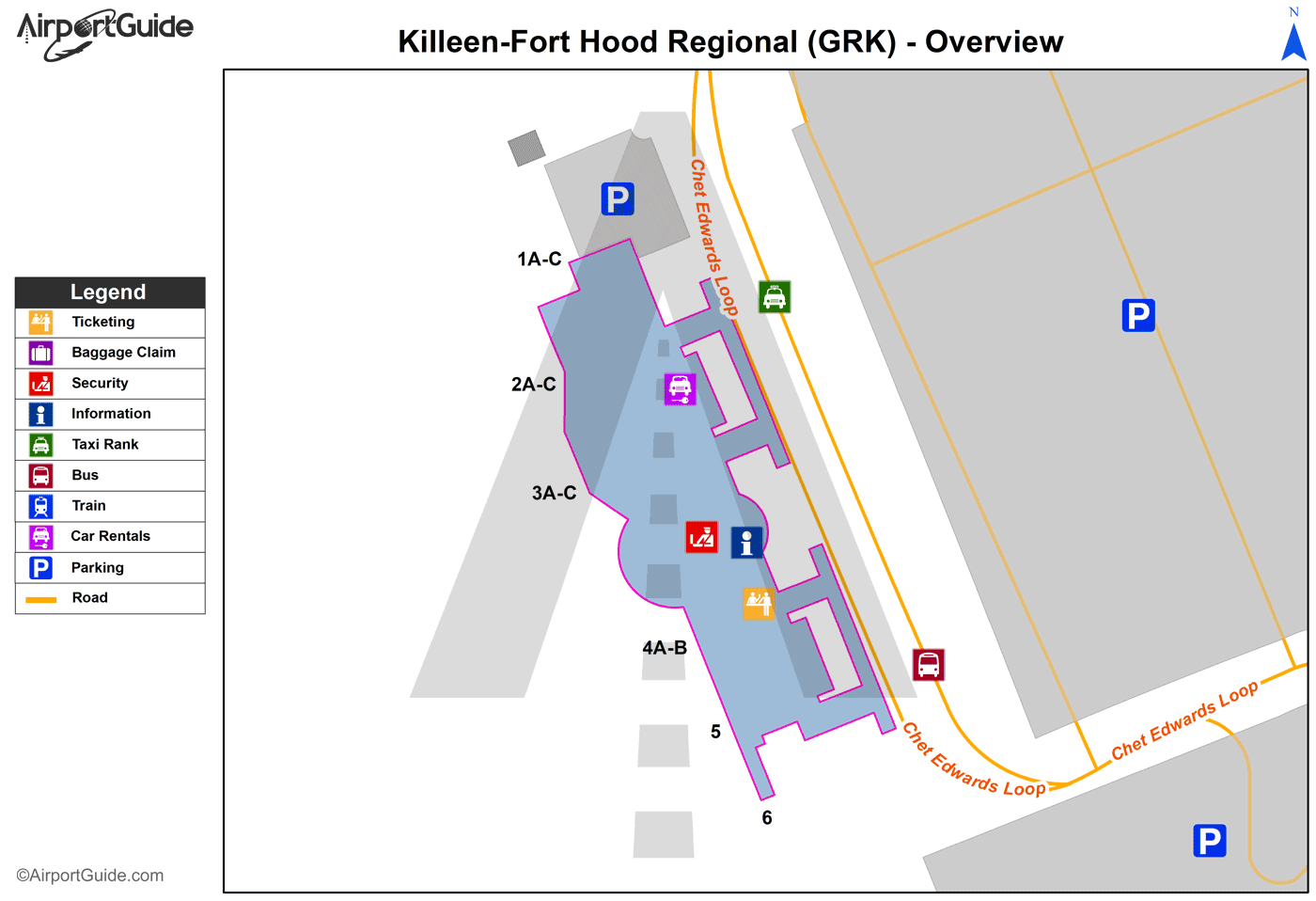

    Fort Hood/Killeen - Robert Gray AAF (GRK) Airport Terminal Map

    Fort Hood/Killeen - Robert Gray AAF (GRK) Airport Terminal Map - Overview
    To license this image, contact us.

    GRK Airport Sectional

    Flight Planning
    at skyvector.com

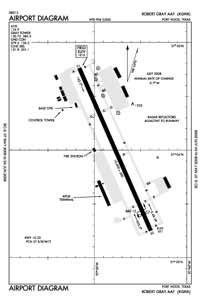

    GRK Airport Diagram

    Robert Gray AAF Airport (GRK) Diagram
    Do you have a better diagram of this Airport?
    Please share it with us.
  • METAR / TAF

    METAR

    TAF

  • Navigation Aids (Navaids) near GRK

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).
  • Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    7.4 Skylark Field Airport
    (ILE KILE ILE)
    81 77 100LL, Jet A
    19.0 Lampasas Airport
    (KLZZ LZZ)
    277 273 100LL
    21.3 Gatesville Municipal Airport
    (KGOP GOP)
    4 0 100LL
    22.2 Draughon-Miller Central Texas Regional Airport
    (TPL KTPL TPL)
    76 72 100LL, Jet A, Jet A-1+
    24.5 Georgetown Municipal Airport
    (KGTU GTU)
    161 157 100LL, Jet A-1+
    28.9 Burnet Municipal Kate Craddock Field Airport
    (KBMQ BMQ)
    227 223 100LL, Jet A
    35.7 Taylor Municipal Airport
    (T74)
    146 142 100LL, Jet A
    36.3 Mc Gregor Executive Airport
    (KPWG PWG)
    46 42 100LL, Jet A-1+
    39.5 Hamilton Municipal Airport
    (KMNZ MNZ)
    335 331 100LL, Jet A
    44.8 Waco Regional Airport
    (ACT KACT ACT)
    43 40 100LL, Jet A
    46.0 Llano Municipal Airport
    (KAQO AQO)
    248 244 100LL, Jet A
    46.7 San Saba County Municipal Airport
    (81R)
    282 278 100LL
    46.9 Clifton Municipal/Isenhower Field Airport
    (7F7)
    16 12 100LL
    51.6 TSTC Waco Airport
    (CNW KCNW CNW)
    48 45 100LL, Jet A
    53.0 Austin-Bergstrom International Airport
    (AUS KAUS AUS)
    171 167 100LL, Jet A
    63.2 Hearne Municipal Airport
    (KLHB LHB)
    100 97 100LL, Jet A
    64.6 Comanche County-City Airport
    (KMKN MKN)
    322 318 100LL, Jet A
    70.5 San Marcos Regional Airport
    (KHYI HYI)
    181 177 100LL, Jet A
    71.1 Smithville Crawford Municipal Airport
    (84R)
    151 148 100LL
    71.2 Stephenville Clark Regional Airport
    (SEP KSEP SEP)
    345 341 100LL, Jet A
  • Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KGRK NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of KGRK

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:
  • Ratings & Reviews

    Robert Gray AAF Airport Ratings

    Category Aspect Rating
    Overall Rating for Robert Gray AAF Airport
    • 0.0/5 (0 votes cast)

    Flight Service Number of Flights
    • 0.0/5 (0 votes cast)

    Overall Number of Routes Served
    • 0.0/5 (0 votes cast)

    International Routes Served
    • 0.0/5 (0 votes cast)

    On-time Performance
    • 0.0/5 (0 votes cast)

    Business Services & Internet Airport Lounges
    • 0.0/5 (0 votes cast)

    Business Centers
    • 0.0/5 (0 votes cast)

    Airport Website (information & tools)
    • 0.0/5 (0 votes cast)

    Availability of Internet Connectivity
    • 0.0/5 (0 votes cast)

    Wireless Internet Access
    • 0.0/5 (0 votes cast)

    General Facilities ATM Locations
    • 0.0/5 (0 votes cast)

    Public Telephones
    • 0.0/5 (0 votes cast)

    Restrooms
    • 0.0/5 (0 votes cast)

    Architecture
    • 0.0/5 (0 votes cast)

    Terminal Layout
    • 0.0/5 (0 votes cast)

    Seating Areas
    • 0.0/5 (0 votes cast)

    Overall Cleanliness
    • 0.0/5 (0 votes cast)

    Children Play Areas
    • 0.0/5 (0 votes cast)

    Geographic Location
    • 0.0/5 (0 votes cast)

    Baggage Claim Locations
    • 0.0/5 (0 votes cast)

    Baggage Handling
    • 0.0/5 (0 votes cast)

    Overall Comfort
    • 0.0/5 (0 votes cast)

    Security Lines
    • 0.0/5 (0 votes cast)

    Transportation & Parking Parking Availability
    • 0.0/5 (0 votes cast)

    Parking Pricing
    • 0.0/5 (0 votes cast)

    Public Transport
    • 0.0/5 (0 votes cast)

    Car Rental
    • 0.0/5 (0 votes cast)

    Taxis
    • 2.5/5 (2 votes cast)

    Hotel Shuttles
    • 0.0/5 (0 votes cast)

    Proximity to City Center
    • 0.0/5 (0 votes cast)

    Amenities Shopping (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (price/value)
    • 0.0/5 (0 votes cast)

  • Remarks

    A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
    A110-10 TFC PAT: TFC PAT ALT LEFT AND RGT. ROTARY WING 1500 FT, UAS 2000 FT WEST TFC ONLY, FIXED WING 2500 FT, PURE JET/OVERHEAD 3000 FT.
    A110-11 MISC: CLSD CIRCUIT TV OPR.
    A110-12 MIL-MISC: ALL INBD VIP ACFT CTC PTD 20 MIN PRIOR TO LDG. BASE OPS FAX DSN 738-1930, C254-288-1930.
    A110-14 CIV: PPR ALL CIVIL ACFT CTC AMGR.
    A110-15 MIL-RSTD: PPR RQR DSN 738-9200/9209, C254-288-9200/9209.
    A110-17 RSTD: TWY B FR TWY C TO E RSTD TO ACFT WITH WINGSPAN 200' OR LESS.
    A110-18 MIL-MISC: PAR NOT AVBL (EXC EMERGENCY) FROM 0500-1300Z++.
    A110-19 MIL-MISC: BASE OPS APVL FOR RAMP ACCESS.
    A110-2 CAUTION: EXTV COPTER OPR VCNTY FORT HOOD, SOME WO CONSPICUOUS MRK AND BLEND WITH TERRAIN.
    A110-20 MIL-CSTMS/AG/IMG: CSTMS AVBL 72 HR PN RQR. DUR NML DUTY HR CTC PMO CSTMS DSN 737-3535/3508, C254-287-3535/3508, OT CTC BASE OPS DSN 738-9200, C254-288-9200.
    A110-21 CAUTION: EXTV COPTER SOD OPS.
    A110-22 MIL-CSTMS/AG/IMG: USDA AG INSPECTION NOT AVBL.
    A110-23 MIL-RSTD: TWY B FROM TWY C TO AER 15 RSTD TO ACFT WITH AN ACN OF 24 OR LESS.
    A110-24 MIL-MISC: 24 HR NOTICE RQR FOR LAV AND WATER SVC.
    A110-25 MIL: BASE OPS FX DSN 738-1930, COM 254-288-1930.
    A110-26 CIV: ARPT UNICOM FREQ 122.825 (KILLEEN RADIO).
    A110-27 MIL-MISC: SPACE A PAX OPS PROHIBITED, INBOUND AND OUTBOUND.
    A110-28 MIL-MISC: NO OFF AFLD TRANSIENT AIRCREW TRANSPORTATION AVBL.
    A110-29 MIL-MISC: 50 FT FUEL SERVICE SAFETY ZONE ENFORCED DURING ALL REFUEL OPS.
    A110-3 MIL-MISC: LTD PRK.
    A110-30 RSTD: TWY D AND TWY B FR C TO APCH END RWY 33 NOT AUTH FOR DOD ACFT RQR CLASS B RWY.
    A110-31 CAUTION: EXTV UAS ACFT WITHIN CLASS D AIRSPACE AND BTN CLASS D AIRSPACE AND R6302.
    A110-32 TFC PAT: UAS 2000' (WEST TFC ONLY).
    A110-33 MISC - 50' FUEL SVC SAFETY ZONE ENFORCED DURING ALL REFUEL OPS. SPACE A PAX OPS PROH, INBD AND OUTBD. NO OFF AFLD TRAN AIRCREW TRANSPORTATION AVBL. WIDE BODY ACFT 180 DEG TURNS PROH ON RWY 15/33. WIDE BODY ACFT MOVEMENT ON THE SOUTH RAMP AUTH ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERS.
    A110-34 WIDE BODY AIRCRAFT 180 DEGREE TURNS PROHIBITED ON RUNWAY 15/33. WIDE BODY AIRCRAFT MOVEMENT ON THE SOUTH RAMP AUTHORIZED ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERSONNEL.
    A110-35 WATER TOWER 1182' E SIDE OF AIRFIELD.
    A110-36 MIL-MISC: NO DE-ICE CAPABILITY.
    A110-5 MISC: WX VIS OBST RSTD S THRU NW.
    A110-7 BEARING STRENGTH RWY 15/33: ST175 SBTT593 TRT840 TRT585.
    A110-8 MIL-JASU: 1(AM32-95) LASS 1(TUG TMD-250) 1(ESSEX B809).
    A110-9 MIL-FUEL: A++ PPR ONLY.
    A14 CIVILIAN ARPT MANAGER. MIL CTC AFLD MGR, TRACY CRAWFORD, 254-289-5628.
    A33-15/33 RY 33 FIRST 1000 FT PEM REMAINING 9000 FT GRVD.
    A70 CIV: JET A AVBL 0400-2030. FOR SVC AFT HRS CALL 254-501-8750.

  • Runways

    GRK Airport Runway Summary

    Longest Runway: 15/33 is 10000 ft (3048 m) long
    Runways with an Instrument Approach: 15, 33

    GRK Airport Runway Details

    Runway 15/33  10000 ft x 200 ft (3048 m x 61 m)
    Runway Length Source:  NGS as of 03/09/2006
    Surface:  Asphalt/Concrete - Excellent condition -
    Runway Pavement Class:  57 /R/B/W/T
    Runway Edge Lights:  High Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 15

    Runway 33

    Elevation:
    1015 972
    Latitude:
    31-04-47.7210N 31-03-16.3957N
    Longitude:
    097-50-06.2815W 097-49-22.0050W
    True Magnetic Hdg.:
    157 337
    ILS Type:
    ILS ILS/DME
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Precision Instrument Precision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights 1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    53 50
    Threshold Elevation:
    0 974
    Displaced Threshold:
    0 194
    Threshold Latitude:
    31-03-18.1702N

    Threshold Longitude:

    097-49-22.8651W
    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 15/33  10000 ft x 200 ft (3048 m x 61 m)
    Runway Length Source:  as of
    Surface:  PEM -
    Runway Pavement Class:
    Runway Edge Lights:  Yes Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 15

    Runway 33

    Elevation:
    1019 970
    Latitude:
    31.0799 31.0546
    Longitude:
    -97.8351 -97.8228
    True Magnetic Hdg.:
    157 337
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    1019 970
    Displaced Threshold:
    0 194
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

  • Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

© 1998-2018 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
