Waco Regional Airport

US Flag

Location

Latitude:
31-36-43.9000N (31.612194)
Longitude:
097-13-49.1000W (-97.230306)
Elevation:
516.1 feet MSL (157 m MSL)
Magnetic Variation:
3.2 E (as of May 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
05 N.M. NW of Waco, Texas
Found On:
San Antonio Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
JOEL C. MARTINEZ
7909 KARL MAY DRIVE
WACO, TX 76708
254-750-8657
CITY OF WACO
PO BOX 2570
WACO, TX 76702-2570
254-750-5640

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
07/1943
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0430-2400
Boundary ARTCC:
ZFW (Fort Worth)
Responsible ARTCC:
ZFW (Fort Worth)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1516 feet (462 m)
NOTAMs Facility:
ACT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: B
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  42
Multi Engine:  10
GA Helicopters:  4

Annual Operations (as of 12/31/2019)

Total Operations:  52852
Commercial:  314 0.6%
Air Taxi:  4450 8.4%
GA Local:  11123 21.0%
GA Itinerant:  27296 51.6%
Military Aircraft:  9669 18.3%

Communications

CTAF:  119.300
Unicom:  122.950
Tower:  WACO
119.3
257.8
Hrs: 0600-0000
Ground:  121.9
Approach:  WACO
127.65
227.125
Hrs: 0600-0000

FORT WORTH ARTCC
Hrs: 0000-0600
Departure:  WACO
127.65
227.125
Hrs: 0600-0000

FORT WORTH ARTCC
Hrs: 0000-0600
ATIS:  123.85
Hrs: 24
ASOS:  (254-759-3065)
EMERG:  121.5
EMERG:  243.0

  • APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.3/269.5 (WACO RCAG) WHEN WACO APCH CTL (ACT) CLSD.


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 254

Business Name Frequency Phone Fuel Grade
Texas Aero

Unicom 122.95 752-9731 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Fort Worth(FTW)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 04/22/21 to 0901Z 05/20/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM SC-3
IAP ILS OR LOC RWY 19 SC-3
IAP RNAV (GPS) RWY 01 SC-3
IAP RNAV (GPS) RWY 14 SC-3
IAP RNAV (GPS) RWY 19 SC-3
IAP RNAV (GPS) RWY 32 SC-3
IAP VOR RWY 14 SC-3
IAP VOR/DME RWY 32 SC-3
MIN ALTERNATE MINIMUMS SC-3
MIN RADAR MINIMUMS SC-3
MIN TAKEOFF MINIMUMS SC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near ACT

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
8.1 TSTC Waco Airport
(CNW KCNW CNW)
79 76 100LL, Jet A
8.8 Mc Gregor Exec Airport
(KPWG PWG)
210 207 100LL, Jet A-1+
21.2 Clifton Municipal/Isenhower Field Airport
(7F7)
305 302 100LL
29.1 Draughon-Miller Central Texas Regional Airport
(TPL KTPL TPL)
198 195 100LL, Jet A, Jet A-1+
31.2 Gatesville Municipal Airport
(KGOP GOP)
248 244 100LL
36.6 Mexia-Limestone County Airport
(KLXY LXY)
87 84 100LL, Jet A
39.3 Skylark Field Airport
(ILE KILE ILE)
216 213 100LL, Jet A
45.7 Cleburne Regional Airport
(KCPT CPT)
346 343 100LL, Jet A
47.0 Hamilton Municipal Airport
(KMNZ MNZ)
274 270 100LL, Jet A
49.1 C David Campbell Field-Corsicana Municipal Airport
(CRS KCRS CRS)
59 56 100LL, Jet A
53.3 Mid-Way Regional Airport
(KJWY JWY)
17 14 100LL, Jet A
54.3 Hearne Municipal Airport
(KLHB LHB)
144 141 100LL
57.3 Fort Worth Spinks Airport
(KFWS FWS)
356 353 100LL, Jet A
58.0 Lampasas Airport
(KLZZ LZZ)
238 234 100LL
58.2 Granbury Regional Airport
(KGDJ GDJ)
329 325 100LL, Jet A
60.3 Stephenville Clark Regional Airport
(SEP KSEP SEP)
307 303 100LL, Jet A
60.6 Georgetown Municipal Airport
(KGTU GTU)
202 199 100LL, Jet A-1+
61.0 Bourland Field Airport
(50F)
342 339 100LL, Jet A
61.2 Sycamore Strip Airport
(9F9)
354 351 100LL
63.3 Taylor Municipal Airport
(T74)
190 187 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KACT NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KACT

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KACT

Remarks

A110-1 FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A26 PPR FOR UNSKED ACR OPNS CALL AMGR 254-750-8657.
A81-APT WHEN ATCT CLSD: HIRL RY 01/19 & MALSR RY 19 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. MIRL RY 14/32; REIL RY 14 & TWY LGTS PRESET LOW INTST WHEN WIND FAVORS; OTHERWISE NOT AVBL.

Runways

Runway Summary

Runways: 01/19
14/32
Longest Runway: 01/19 is 7107 ft (2166 m) long
Runways with an Instrument Approach: 19

ACT Airport Runway Details

Runway 01/19  7107 ft x 150 ft (2166 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/22/2016
Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
Runway Pavement Class:
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  50.0
Dual Wheel Landing Gear:  82.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 01

Runway 19

Elevation:
508.4 502.3
Latitude:
31-36-12.7215N 31-37-20.8931N
Longitude:
097-13-47.8349W 097-13-27.6358W
True Magnetic Hdg.:
014 194
ILS Type:
ILS/DME
Glide Path Angle:
3.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
ROAD
Object Height:
10
Object Marked/Lighted?:
Distance from End:
650
Object Centerline Offset:
0 ft. left and right of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Right Side Of Runway
Runway Visual Range (RVR):
Rollout Touchdown
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
55
Threshold Elevation:
508.6
Displaced Threshold:
102
Threshold Latitude:
31-36-13.6974N

Threshold Longitude:

097-13-47.5417W
Declared Distances
Take Off Run Avbl. (TORA):
7107 7107
Take Off Distance Avbl. (TODA):
7107 7107
Actual Stop Dist. Avbl. (ASDA):
7107 6605
Landing Dist. Avbl. (LDA):
7005 6605

Runway 14/32  5103 ft x 150 ft (1555 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 09/22/2016
Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  50.0
Dual Wheel Landing Gear:  82.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
508.6 511.7
Latitude:
31-37-01.5365N 31-36-18.1441N
Longitude:
097-14-20.0615W 097-13-49.8783W
True Magnetic Hdg.:
149 329
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
ROAD
Object Height:
10
Object Marked/Lighted?:
Distance from End:
550
Object Centerline Offset:
0 ft. left and right of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
58 58
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
5103 5103
Take Off Distance Avbl. (TODA):
5103 5103
Actual Stop Dist. Avbl. (ASDA):
5103 5103
Landing Dist. Avbl. (LDA):
5103 5103

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Tiedowns available

Maps & Diagrams

ACT Airport Terminal Map

Waco - Taylor Municipal (ACT) Airport Terminal Map - Overview

To license this image, please contact us.

ACT Airport Sectional

Flight Planning
at skyvector.com

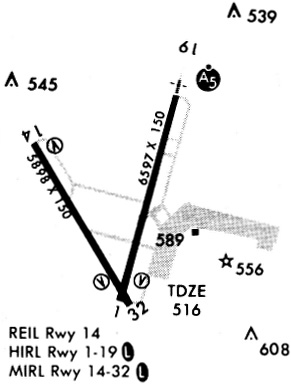

ACT Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
