Cox Field Airport

US Flag

Paris Weather (°F)

KPRX (0.0 NM at True Heading of 198)
METAR: KPRX 141144Z AUTO 09003KT 1/2SM FG OVC002 21/21 A3000 RMK AO2
TAF: N/A

Location

Latitude:
33-38-11.8000N (33.636611)
Longitude:
095-27-02.7000W (-95.45075)
Elevation:
547.6 feet MSL (167 m MSL)
Magnetic Variation:
2.1 E (as of September 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
06 N.M. E of Paris, Texas
Found On:
Dallas-Ft Worth Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
JERRY RICHEY
6780 COLLIER DR
PARIS, TX 75462
903-784-4648
CITY OF PARIS
BOX 9037
PARIS, TX 75461
903-785-7511

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
08/1943
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0800-1800
Boundary ARTCC:
ZFW (Fort Worth)
Responsible ARTCC:
ZFW (Fort Worth)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1548 feet (472 m)
NOTAMs Facility:
PRX
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  17
Multi Engine:  1
Jet Engine:  1

Annual Operations (as of 04/09/2019)

Total Operations:  18612
Air Taxi:  312 1.7%
GA Local:  12775 68.6%
GA Itinerant:  5475 29.4%
Military Aircraft:  50 0.3%

Communications

CTAF:  122.975
Unicom:  122.975
AWOS-3PT:  119.675 (903-737-8784)

  • APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQ 124.875 (PARIS RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 903

Business Name Frequency Phone Fuel Grade
JR Aviation

Unicom 122.97 784-4648 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Fort Worth(FTW)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 09/09/21 to 0901Z 10/07/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 17 SC-2
IAP RNAV (GPS) RWY 35 SC-2
IAP VOR RWY 35 SC-2 Changed
MIN ALTERNATE MINIMUMS SC-2
MIN TAKEOFF MINIMUMS SC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near PRX

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
29.9 Sulphur Springs Municipal Airport
(SLR KSLR SLR)
196 194 100LL, Jet A
40.6 Mount Pleasant Regional Airport
(KOSA OSA)
142 140 100LL, Jet A
46.0 Majors Airport
(GVT KGVT GVT)
222 220 100LL, Jet A
50.5 Durant Regional - Eaker Field Airport
(DUA KDUA DUA)
291 288 100LL, Jet A
53.7 Wood County - Collins Field Airport
(KJDD JDD)
182 180 100LL, Jet A
56.7 Sherman Municipal Airport
(KSWI SWI)
269 266 100LL
57.4 Atoka Municipal Airport
(KAQR AQR)
323 321 100LL
57.7 Mineola Wisener Field Airport
(3F9)
183 181 100LL
57.9 J Lynn Helms Sevier County Airport
(KDEQ DEQ)
64 63 100LL, Jet A
61.3 North Texas Regional/Perrin Field Airport
(PNX KGYI GYI)
274 271 100LL, Jet A
65.1 Ralph M Hall/Rockwall Municipal Airport
(F46)
229 226 100LL, Jet A
67.0 Airpark East Airport
(1F7)
222 219 100LL
69.2 Terrell Municipal Airport
(TRL KTRL TRL)
216 213 100LL, Jet A
70.7 Gladewater Municipal Airport
(07F)
159 157 100LL
73.8 Texarkana Regional-Webb Field Airport
(TXK KTXK TXK)
98 97 100LL, Jet A
76.1 Mesquite Metro Airport
(KHQZ HQZ)
225 222 100LL, Jet A
76.5 Garland/Dfw Heloplex Heliport
(T57)
234 231 100LL, Jet A
76.5 Mc Alester Regional Airport
(MLC KMLC MLC)
347 345 100LL, Jet A
77.0 Tyler Pounds Regional Airport
(TYR KTYR TYR)
178 176 100LL, Jet A
78.6 Air Park-Dallas Airport
(F69)
242 239 100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KPRX NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KPRX

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KPRX

Remarks

A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1 RYS 03/21 & 14/32 NOT AVBL FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS.
A110-3 (E81) TWY LIGHTS FROM TERMINAL APRON TO RWY 17/35 ON MIDFIELD TWY ONLY.
A110-4 RY 14/32 NO LINE OF SIGHT BTN RY ENDS.
A110-5 FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A14 FBO MANAGER. JERRY RICHEY, CITY AIRPORT DIRECTOR
A17 FOR ARPT ATTENDANT DURG BUSINESS HRS CALL 903-784-4648. ARPT ATTENDED 0800-1900 DURG DALGT SAVINGS TIME.
A33-03/21 NOT MAINTAINED.
A52-H1 APPROACH RATIO 7:1; 22 FT TREES 170 FT WEST
A58-14 13 FT SCATTERED BRUSH FM THLD TO 200 FT FM THLD - 250 FT L
A58-17 6 FT SCATTERED BRUSH 32 FT FM THLD TO 200 FT FM THLD - 297 FT L.
A58-21 8 FT TREE 83 FT FM THLD - 250 FT L
A58-35 26 FT TREES FM THLD TO 200 FT FM THLD - 273 FT L.
A70-FUEL-10 0LL JET A FUEL AVBL AT NIGHTS CALL 903-784-1071. 100LL AVBL 24 HR SELF SERVE WITH CREDIT CARD.
A81-APT MIRL RY 17/35 PRESET LOW INTST DUSK-DAWN; TO INCR INTST ACTVT - CTAF. PAPI RYS 17 & 35 OPERS CONTINUOUSLY.

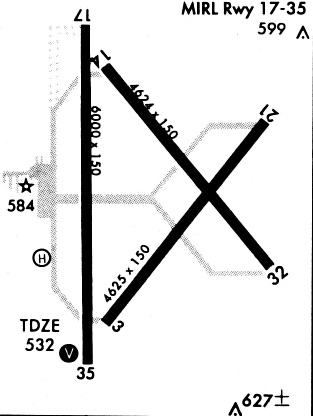

Runways

Runway Summary

Runways: 03/21
14/32
17/35
H1
Longest Runway: 17/35 is 6002 ft (1829 m) long
Runways with an Instrument Approach:

PRX Airport Runway Details

Runway 03/21  4624 ft x 150 ft (1409 m x 46 m)
Runway Length Source:  NGS as of 05/01/2002
Surface:  Concrete - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  26.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 03

Runway 21

Elevation:
530.3 546.2
Latitude:
33-37-49.0036N 33-38-25.4568N
Longitude:
095-27-10.8544W 095-26-37.8124W
True Magnetic Hdg.:
037 217
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
TREES TREES
Object Height:
25 10
Object Marked/Lighted?:
Distance from End:
868 200
Object Centerline Offset:
0 ft. left and right of centerline 250 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
4624 4624
Take Off Distance Avbl. (TODA):
4624 4624
Actual Stop Dist. Avbl. (ASDA):
4624 4624
Landing Dist. Avbl. (LDA):
4624 4624

Runway 14/32  4624 ft x 150 ft (1409 m x 46 m)
Runway Length Source:  NGS as of 05/01/2002
Surface:  Concrete - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  26.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 14

Runway 32

Elevation:
539.5 547.3
Latitude:
33-38-34.4312N 33-37-58.7933N
Longitude:
095-27-11.6404W 095-26-37.3483W
True Magnetic Hdg.:
141 321
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Basic Basic
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
BRUSH
Object Height:
13
Object Marked/Lighted?:
Distance from End:
200
Object Centerline Offset:
0 ft. left and right of centerline 250 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
4624 4624
Take Off Distance Avbl. (TODA):
4624 4624
Actual Stop Dist. Avbl. (ASDA):
4624 4624
Landing Dist. Avbl. (LDA):
4624 4624

Runway 17/35  6002 ft x 100 ft (1829 m x 30 m)
Runway Length Source:  NGS as of 05/01/2002
Surface:  Concrete - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  30.0
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
541.0 526.3
Latitude:
33-38-41.3526N 33-37-41.9870N
Longitude:
095-27-15.9519W 095-27-14.9310W
True Magnetic Hdg.:
179 359
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREES TREE
Object Height:
33 30
Object Marked/Lighted?:
Distance from End:
201 328
Object Centerline Offset:
0 ft. left and right of centerline 250 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
40 40
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
6002 6002
Take Off Distance Avbl. (TODA):
6002 6002
Actual Stop Dist. Avbl. (ASDA):
6002 6002
Landing Dist. Avbl. (LDA):
6002 6002

Helipad H1  40 ft x 40 ft (12 m x 12 m)
Runway Length Source:  OWNER as of
Surface:  Concrete - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Helipad H1

Elevation:
547.6
Latitude:
33-38-04.2800N
Longitude:
095-27-23.6200W
True Magnetic Hdg.:
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
None
Runway Markings Condition:
Fair
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
0 ft. left and right of centerline 250 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Fuel Available:
100LL
Parking:
Tiedowns available

Maps & Diagrams

PRX Airport Sectional

Flight Planning
at skyvector.com

PRX Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
