Stuttgart Municipal Carl Humphrey Field Airport

US Flag

Stuttgart Weather (°F)

METAR: KSGT 180556Z AUTO 36009KT 10SM CLR 09/03 A3008 RMK AO2 SLP185 T00890028 10144 20089 401670089 53019 $

TAF: N/A

Reporting Station: KSGT (0.1 NM at True Heading of 286)
Visibility: 10+SM
Flight Category: VFR
Altimeter: 1018.7
Temperature: 8.9 C (48.02 F)
Dewpoint: 2.8 C (37.04 F)

Location

Latitude:
34-35-58.1227N (34.599478)
Longitude:
091-34-30.0010W (-91.575)
Elevation:
224.4 feet MSL (68 m MSL)
Magnetic Variation:
0.7 W (as of March 2024 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
07 N.M. N of Stuttgart, Arkansas
Found On:
Memphis Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
STEPHEN HANDY
2000 AIRPORT RD TERMINAL BLD
STUTTGART, AR 72160
870-673-2960
CITY OF STUTTGART
304 S. MAPLE
STUTTGART, AR 72160
870-673-3535

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
10/1943
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
NOV-JAN/ALL/0800-2000
Boundary ARTCC:
ZME (Memphis)
Responsible ARTCC:
ZME (Memphis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Traffic Pattern Altitude (MSL):
1224 feet (373 m)
NOTAMs Facility:
SGT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  20
Multi Engine:  1
Jet Engine:  1
GA Helicopters:  1

Annual Operations (as of 12/31/2021)

Total Operations:  60700
Air Taxi:  2200 3.6%
GA Local:  20000 32.9%
GA Itinerant:  35000 57.7%
Military Aircraft:  3500 5.8%

Communications

CTAF:  122.800
Unicom:  122.800
Clearance Del.:  123.7
123.7
123.7
Approach:  LITTLE ROCK
Departure:  LITTLE ROCK
AWOS-3PT:  119.025 (870-673-1884)



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 870

    Business Name Frequency Phone Fuel Grade
    Stuttgart Municipal
       Update FBO info
    Unicom 122.8 637-2960 100LL, Jet A
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Jonesboro(JBR)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 02/22/24 to 0901Z 03/21/24.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP ILS OR LOC RWY 36 SC-1 Changed
    IAP RNAV (GPS) RWY 09 SC-1 Changed
    IAP RNAV (GPS) RWY 18 SC-1 Changed
    IAP RNAV (GPS) RWY 27 SC-1 Changed
    IAP RNAV (GPS) RWY 36 SC-1
    MIN ALTERNATE MINIMUMS SC-1
    MIN TAKEOFF MINIMUMS SC-1
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near SGT

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL KSGT NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KSGT

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of KSGT

    Remarks

    A110-1 MIGRATORY BIRDS ON & INVOF ARPT NOV-FEB.
    A110-2 NUMEROUS AGRICULTURAL ACFT OPNS FROM FEB-SEP 500 FT AGL AND BELOW.
    A110-3 FOR CD WHEN UNA VIA FREQ CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911
    A110-4 FOR SVC AFT HRS CALL 870-672-2005.
    A70-FUEL-10 0LL 100LL AVBL 24 HRS SELF-SERVE WITH CREDIT CARD. FOR FUEL NIGHTS CALL 870-672-2005.
    A81-APT ACTVT MALSF RWY 36; REIL RWY 18 & 27; MIRL RWYS 09/27 & 18/36 - CTAF.

    Runways

    Runway Summary

    Runways: 09/27
    18/36
    Longest Runway: 18/36 is 6015 ft (1833 m) long
    Runways with an Instrument Approach: 36

    SGT Airport Runway Details

    Runway 09/27  5002 ft x 150 ft (1525 m x 46 m)
    Runway Length Source:  3RD PARTY SURVEY as of 11/14/2005
    Surface:  Concrete - Good condition - No special surface treatment
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  25.0
    Dual Wheel Landing Gear:  65.0
    Dual Tandem Wheel Landing Gear:  120.0

    Runway 09

    Runway 27

    Elevation:
    219.6 218.6
    Latitude:
    34-36-14.3478N 34-36-12.7246N
    Longitude:
    091-34-43.4470W 091-33-43.6453W
    Runway True Alignment:
    092 272
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Basic Basic
    Runway Markings Condition:
    Fair Fair
    REIL:
    Yes

    Runway 18/36  6015 ft x 100 ft (1833 m x 30 m)
    Runway Length Source:  3RD PARTY SURVEY as of 02/22/2005
    Surface:  Concrete - Good condition - Saw-cut or plastic grooved
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  75.0
    Dual Wheel Landing Gear:  150.0
    Dual Tandem Wheel Landing Gear:  200.0
    Dual Dual Tandem Wheel Landing Gear:  300.0

    Runway 18

    Runway 36

    Elevation:
    220.1 222.8
    Latitude:
    34-36-15.0504N 34-35-15.5847N
    Longitude:
    091-34-42.5210W 091-34-44.8486W
    Runway True Alignment:
    182 002
    ILS Type:
    ILS/DME
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Precision Instrument Precision Instrument
    Runway Markings Condition:
    Good Good
    Approach Light System:
    1,400 Foot Medium Intensity Approach Lighting System With Sequenced Flashers
    REIL:
    Yes No

    Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

    Maps & Diagrams

    SGT Sectional

    Flight Planning
    at skyvector.com

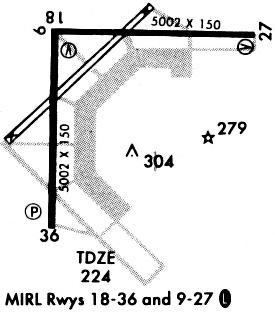

    SGT Diagram


    Do you have a better diagram of this ?
    Please share it with us.
