Albert J Ellis Airport

US Flag

Jacksonville Weather (°F)

KOAJ (0.4 NM at True Heading of 233)
METAR: KOAJ 050656Z AUTO 02007KT 10SM CLR 10/08 A3020 RMK AO2 SLP229 T01000083
TAF: KOAJ 050548Z 0506/0606 05005KT P6SM BKN200 FM051500 05008G14KT P6SM SCT250 FM051800 06008G14KT P6SM BKN025 FM052300 04004KT P6SM SCT030 FM060100 00000KT P6SM SCT150 AMD LTD TO CLD VIS AND WIND

Location

Latitude:
34-49-45.0000N (34.829167)
Longitude:
077-36-43.7000W (-77.612139)
Elevation:
92.9 feet MSL (28 m MSL)
Magnetic Variation:
9.8 W (as of December 2021 from WMM2020 model)
Time Zone:
UTC -5.0 (Standard Time)
UTC -4.0 (Daylight Savings Time)
From City:
10 N.M. NW of Jacksonville, North Carolina
Found On:
Charlotte Chart
FAA Region:
ASO

Contacts

Manager:
Publicly owned:
CHRISTOPHER WHITE
264 ELLIS AIRPORT RD
RICHLANDS, NC 28574
910-324-1100
ONSLOW COUNTY
234 NW CORRIDOR BLVD
JACKSONVILLE, NC 28540
910-347-4717

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
02/1971
Control tower:
Yes
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0500-2400
Boundary ARTCC:
ZDC (Washington)
Responsible ARTCC:
ZDC (Washington)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
1093 feet (333 m)
NOTAMs Facility:
OAJ
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: B
Air Carrier Service: Scheduled
Certification Date: 05/1973

Based Aircraft

Single Engine:  22
Multi Engine:  1
GA Helicopters:  3

Annual Operations (as of 05/31/2020)

Total Operations:  29544
Commercial:  6722 22.8%
Air Taxi:  2797 9.5%
GA Local:  4218 14.3%
GA Itinerant:  5478 18.5%
Military Aircraft:  10329 35.0%

Communications

CTAF:  132.650
Unicom:  122.950
Tower:  ELLIS TOWER
132.65
Hrs: 0700-2200
Clearance Del.:  125.4

121.4 ;WHEN TWR CLSD
121.4 ;WHEN TWR CLSD
121.4 ;WHEN TWR CLSD
121.4 ;WHEN TWR CLSD
Ground:  125.4
Approach:  WILMINGTON

WASHINGTON ARTCC
Departure:  WILMINGTON

WASHINGTON ARTCC
ATIS:  124.475
Hrs: 24
AWOS-3PT:  (910-324-5233)

  • APCH/DEP SVC PRVDD BY WASHINGTON ARTCC ON FREQS 135.75/269.15 (WILMINGTON RCAG) WHEN WILMINGTON APCH CTL CLSD.


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 910

Business Name Frequency Phone Fuel Grade
Tar Heel Aviation, Inc.

Unicom 123.0 324-2500 100LL, Jet A
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Raleigh(RDU)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 12/02/21 to 0901Z 12/30/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
APD AIRPORT DIAGRAM SE-2
IAP ILS OR LOC RWY 05 SE-2
IAP RNAV (GPS) RWY 05 SE-2
IAP RNAV (GPS) RWY 23 SE-2
MIN ALTERNATE MINIMUMS SE-2
MIN TAKEOFF MINIMUMS SE-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near OAJ

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
20.4 Henderson Field Airport
(KACZ ACZ)
251 261 100LL, Jet A-1+
20.9 Duplin County Airport
(KDPL DPL)
299 309 100LL, Jet A-1+
30.1 Kinston Regional Jetport At Stallings Field Airport
(ISO KISO ISO)
0 10 100LL, Jet A
31.5 Mount Olive Municipal Airport
(W40)
318 328 100LL, Jet A-1+
31.6 Coastal Carolina Regional Airport
(EWN KEWN EWN)
62 72 100LL, Jet A
36.4 Wilmington International Airport
(ILM KILM ILM)
203 213 100LL, Jet A, Jet A+
38.1 Clinton-Sampson County Airport
(CTZ KCTZ CTZ)
283 292 100LL, Jet A-1+
41.6 Wayne Exec Jetport Airport
(KGWW GWW)
335 345 100LL, Jet A-1+
47.3 Michael J Smith Field Airport
(KMRH MRH)
96 106 100LL, Jet A-1+
49.7 Pitt-Greenville Airport
(PGV KPGV PGV)
12 22 100LL, Jet A
57.3 Johnston Regional Airport
(KJNX JNX)
318 327 100LL, Jet A-1+
58.5 Cape Fear Regional Jetport/Howie Franklin Field Airport
(KSUT SUT)
203 212 100LL, Jet A-1+
59.1 Wilson Industrial Air Center Airport
(W03)
342 352 100LL, Jet A-1+
60.7 Grays Creek Airport
(2GC)
274 283 100LL
63.1 Rocky Mount/Wilson Regional Airport
(RWI KRWI RWI)
347 357 100LL, Jet A
63.1 Fayetteville Regional/Grannis Field Airport
(FAY KFAY FAY)
279 288 100LL, Jet A
63.9 Columbus County Municipal Airport
(KCPC CPC)
238 247 100LL, Jet A-1+
64.2 Harnett Regional Jetport Airport
(KHRJ HRJ)
301 310 100LL, Jet A-1+
71.4 Triple W Airport
(5W5)
311 320 100LL
72.6 Lumberton Regional Airport
(LBT KLBT LBT)
259 268 100LL, Jet A-1+

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KOAJ NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KOAJ

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of KOAJ

Remarks

A110-1 180 DEG TURNS ON RWY 05/23 NA FOR ACFT 60000 LBS AND OVER.
A110-3 CLSD TO ALL MIL ACFT OVER 17000 LBS FOR ACR RAMP OPNS EXCP 24 HR PPR. CALL AMGR 910-324-1100 OR 910-989-3168.
A110-5 INDEX B ARFF COVERAGE PROVIDED DURING COMMERCIAL AIR TRC OPS. INDEX C AVAILABLE UPON REQ.
A110-6 FIELD CONDITIONS NOT MONITORED 0000LCL-0500LCL DAILY
A110-7 FOR CD WHEN ATCT CLSD, CTC WILMINGTON APCH AT 910-815-4676, OR WHEN APCH CLSD CTC WASHINGTON ARTCC AT 703-771-3587.
A26 CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP PPR CALL AMGR 910-324-1100 OR 910-989-3168.
A70-FUEL-10 0LL FOR FUEL OTHER HRS CALL 910-347-8366.
A81-APT ACTVT MALSR RWY 05; REIL RWY 23; HIRL RWY 05/23; PAPI RWY 05 & 23 - CTAF.

Runways

Runway Summary

Runways: 05/23
Longest Runway: 05/23 is 7100 ft (2164 m) long
Runways with an Instrument Approach: 05

OAJ Airport Runway Details

Runway 05/23  7100 ft x 150 ft (2164 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 01/30/2018
Surface:  Asphalt - Good condition - Saw-cut or plastic grooved
Runway Pavement Class:  51 /F/A/W/T
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  120.0
Dual Wheel Landing Gear:  211.0
Dual Tandem Wheel Landing Gear:  388.0
Dual Dual Tandem Wheel Landing Gear:

Runway 05

Runway 23

Elevation:
88.9 90.4
Latitude:
34-49-19.8871N 34-50-10.0619N
Longitude:
077-37-13.4680W 077-36-13.8877W
True Magnetic Hdg.:
044 224
ILS Type:
ILS/DME
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Precision Instrument Precision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System With Runway Alignment Indicator Lights
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
55 47
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A-1+
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

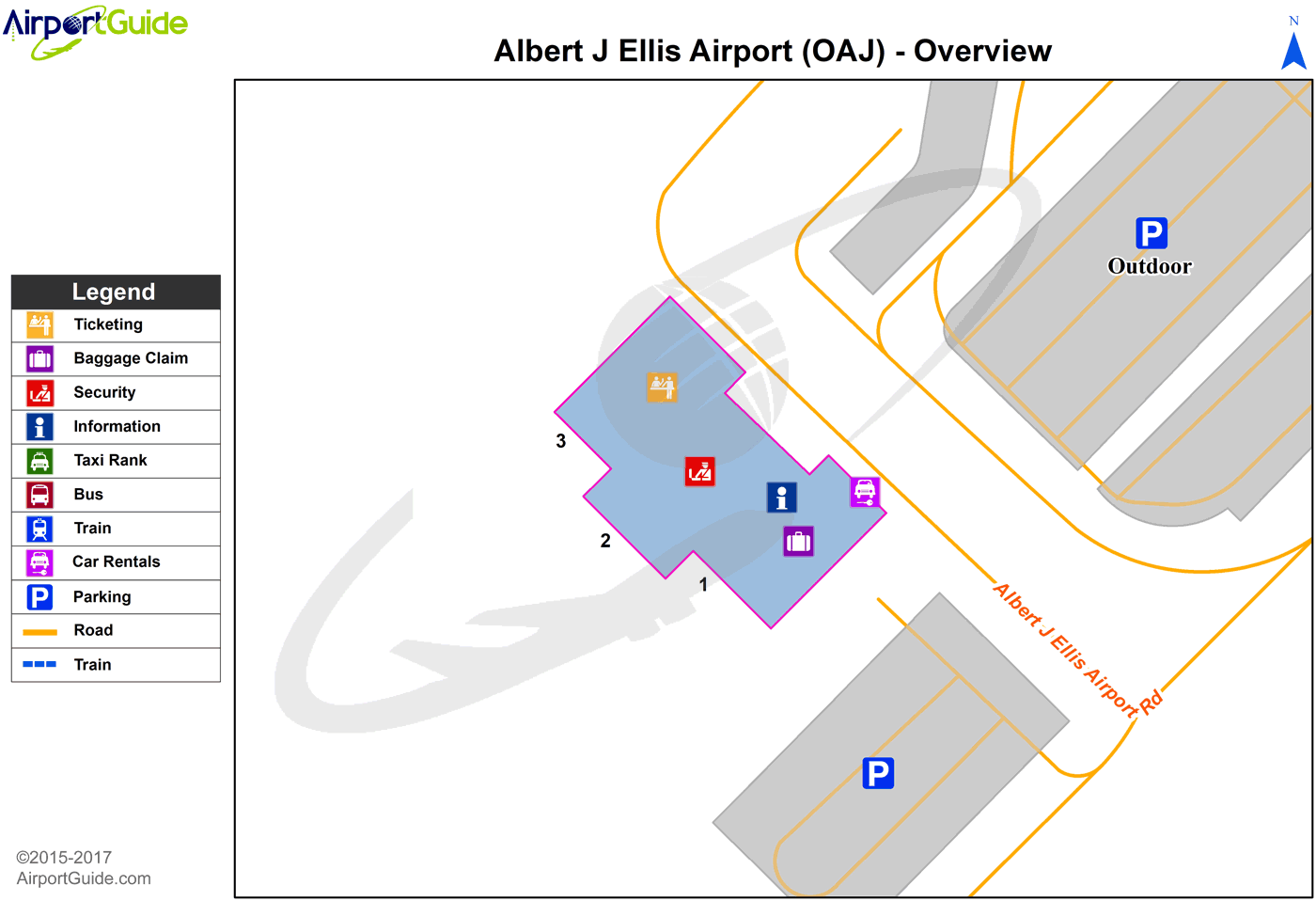

OAJ Airport Terminal Map

Jacksonville - Lumberton Regional (OAJ) Airport Terminal Map - Overview

To license this image, please contact us.

OAJ Airport Sectional

Flight Planning
at skyvector.com

OAJ Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
