Directions to DRT Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
29-22-27.1450N (29.374207)
Longitude:
100-55-37.7650W (-100.927157)
Elevation:
1002.2 feet MSL (305 m MSL)
Magnetic Variation:
5.4 E (as of June 2019 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
2 N.M. NW of Del Rio, Texas
Found On:
San Antonio Chart
FAA Region:
ASW

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
11/1937
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0700-1900
Boundary ARTCC:
ZHU (Houston)
Responsible ARTCC:
ZHU (Houston)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2002 feet (610 m)
NOTAMs Facility:
DRT
NOTAM-D Service:
Yes
International Airport of Entry:
Yes
Customs Landing Rights:
Yes
Military Landing Rights:
Yes
Civil/Military Joint Use:
No
Aircraft Rescue and Firefighting:
Class I
ARFF Index: A
Air Carrier Service: Scheduled
Certification Date: 02/2005

Based Aircraft

Single Engine:  27
Multi Engine:  1
Jet Engine:  1
GA Helicopters:  4

Annual Operations (as of 07/31/2018)

Total Operations:  20631
Commercial:  225 1.1%
Air Taxi:  2190 10.6%
GA Local:  12650 61.3%
GA Itinerant:  716 3.5%
Military Aircraft:  4850 23.5%

Communications

CTAF:  122.800
Unicom:  122.800
Clearance Del.:  120.5
Approach:  DEL RIO
119.6
HOUSTON ARTCC
Departure:  DEL RIO
119.6
HOUSTON ARTCC
ASOS:  118.525 (830-774-6251)

  • APCH/DEP SERVICE PROVIDED BY HOUSTON ARTCC ON FREQS 125.75/346.4 (ROCK SPRINGS RCAG) WHEN DEL RIO APCH CTL CLSD.


Contacts

Manager:
Publicly owned:
JUAN C. ONOFRE
1104 WEST 10TH STREET
DEL RIO, TX 78840
(830) 734-4857
DEL RIO/VAL VERDE CTY
109 W BROADWAY STREET
DEL RIO, TX 78840
(830) 774-8610

Fixed Based Operators (FBOs) & Fuel

To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
Click here to be taken to the FAA site where you can start the process to remove your name.
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 830

Business Name Frequency Phone Fuel Grade
Pico Aviation

Unicom 122.8 501-940-4016 100LL, Jet A
AvFuel 100LL - 4.71 USD per gallon
on 11/18/14
Trucks
AvFuel 100LL - 4.30 USD per gallon
on 11/18/14
Self Serve Pumps
AvFuel Jet A - 3.99 USD per gallon
on 11/18/14
Self Serve Pumps
with Prist
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  San Angelo(SJT)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 06/20/19 to 0901Z 07/18/19.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP ILS OR LOC RWY 13 SC-3 Changed
IAP RNAV (GPS) RWY 13 SC-3
IAP VOR-A SC-3
MIN ALTERNATE MINIMUMS SC-3
MIN TAKEOFF MINIMUMS SC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps

Del Rio - Del Rio International (DRT) Airport Terminal Map

Terminal Map Not Available for this Airport

DRT Airport Sectional

Flight Planning
at skyvector.com

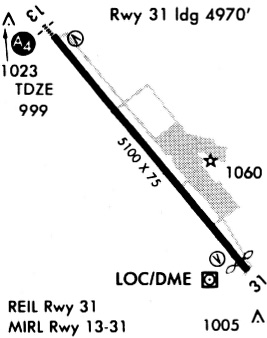

DRT Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF

METAR

TAF

Navigation Aids (Navaids) near DRT

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
62.7 Garner Field Airport
(UVA KUVA UVA)
98 93 100LL, Jet A
74.1 Sonora Municipal Airport
(KSOA SOA)
11 6 100LL
77.3 Dimmit County Airport
(CZT KCZT CZT)
131 126 100LL, Jet A
78.2 Terrell County Airport
(6R6)
301 295 100LL
82.9 Ozona Municipal Airport
(OZA KOZA OZA)
350 344 100LL, Jet A
90.8 Eldorado Airport
(27R)
10 5 100LL
91.2 Kimble County Airport
(JCT KJCT JCT)
41 36 100LL, Jet A+
91.5 South Texas Regional At Hondo Airport
(KHDO HDO)
90 86 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KDRT NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KDRT

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Del Rio International Airport Ratings

Category Aspect Rating
Overall Rating for Del Rio International Airport
  • 5.0/5 (1 vote cast)

Flight Service Number of Flights
  • 5.0/5 (1 vote cast)

Overall Number of Routes Served
  • 5.0/5 (1 vote cast)

International Routes Served
  • 5.0/5 (1 vote cast)

On-time Performance
  • 4.0/5 (2 votes cast)

Business Services & Internet Airport Lounges
  • 5.0/5 (1 vote cast)

Business Centers
  • 5.0/5 (1 vote cast)

Airport Website (information & tools)
  • 5.0/5 (1 vote cast)

Availability of Internet Connectivity
  • 5.0/5 (1 vote cast)

Wireless Internet Access
  • 5.0/5 (1 vote cast)

General Facilities ATM Locations
  • 5.0/5 (1 vote cast)

Public Telephones
  • 5.0/5 (1 vote cast)

Restrooms
  • 5.0/5 (1 vote cast)

Architecture
  • 5.0/5 (1 vote cast)

Terminal Layout
  • 5.0/5 (1 vote cast)

Seating Areas
  • 5.0/5 (1 vote cast)

Overall Cleanliness
  • 5.0/5 (1 vote cast)

Children Play Areas
  • 5.0/5 (1 vote cast)

Geographic Location
  • 5.0/5 (1 vote cast)

Baggage Claim Locations
  • 5.0/5 (1 vote cast)

Baggage Handling
  • 5.0/5 (1 vote cast)

Overall Comfort
  • 5.0/5 (1 vote cast)

Security Lines
  • 5.0/5 (1 vote cast)

Transportation & Parking Parking Availability
  • 5.0/5 (1 vote cast)

Parking Pricing
  • 5.0/5 (1 vote cast)

Public Transport
  • 5.0/5 (1 vote cast)

Car Rental
  • 5.0/5 (1 vote cast)

Taxis
  • 3.0/5 (3 votes cast)

Hotel Shuttles
  • 5.0/5 (1 vote cast)

Proximity to City Center
  • 5.0/5 (1 vote cast)

Amenities Shopping (variety and number)
  • 5.0/5 (1 vote cast)

Restaurants & Bars (variety and number)
  • 5.0/5 (1 vote cast)

Restaurants & Bars (price/value)
  • 5.0/5 (1 vote cast)

Remarks

A110-1 HELIPAD H1 & H2 LOCATED SOUTH END OF MAIN PARKING RAMP.
A17 AFT HRS CALL 830-768-0898.
A57-13 50:1 SLOPE TO THE DSPLCD THLD.
A81-APT ACTVT MALS RY 13 - CTAF.

Runways

DRT Airport Runway Summary

Runways: 13/31
H1
H2
Longest Runway: 13/31 is 6300 ft (1920 m) long
Runways with an Instrument Approach: 13

DRT Airport Runway Details

Runway 13/31  6300 ft x 100 ft (1920 m x 30 m)
Runway Length Source:  FAA as of 09/21/2005
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  High Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  35.0
Dual Wheel Landing Gear:  65.0
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 13

Runway 31

Elevation:
1002 995
Latitude:
29-22-51.1100N 29-22-03.1800N
Longitude:
100-56-00.5400W 100-55-14.9900W
True Magnetic Hdg.:
140 320
ILS Type:
ILS/DME
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Right Left
Runway Markings Type:
Precision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Arresting Device:
Object at End:
TREE TREE
Object Height:
31 52
Object Marked/Lighted?:
Distance from End:
922 2105
Object Centerline Offset:
369 ft. left of centerline 460 ft. left of centerline
Visual Glide Slope Indicators:
4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
1,400 Foot Medium Intensity Approach Lighting System
REIL:
Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
47 62
Threshold Elevation:
1002 0
Displaced Threshold:
300 0
Threshold Latitude:
29-22-48.8300N

Threshold Longitude:

100-55-58.3700W
Declared Distances
Take Off Run Avbl. (TORA):
6300 6000
Take Off Distance Avbl. (TODA):
6300 6300
Actual Stop Dist. Avbl. (ASDA):
6300 6300
Landing Dist. Avbl. (LDA):
6000 6000

Helipad H1  46 ft x 46 ft (14 m x 14 m)
Runway Length Source:  STATE as of 05/27/2014
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Helipad H1

Elevation:
1002 0
Latitude:
29-22-07.1900N
Longitude:
100-55-09.1000W
True Magnetic Hdg.:
0 0
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
None
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
0 0
Object Marked/Lighted?:
Distance from End:
0 0
Object Centerline Offset:
369 ft. left of centerline 460 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Helipad H2  46 ft x 46 ft (14 m x 14 m)
Runway Length Source:  STATE as of 05/27/2014
Surface:  Asphalt - Good condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Helipad H2

Elevation:
1002 0
Latitude:
29-22-08.0000N
Longitude:
100-55-08.0300W
True Magnetic Hdg.:
0 0
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
None
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
0 0
Object Marked/Lighted?:
Distance from End:
0 0
Object Centerline Offset:
369 ft. left of centerline 460 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
0 0
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Services

Airframe Repair:
Minor
Powerplant Repair:
Minor
Bottled Oxygen:
High Pressure
Bulk Oxygen:
High Pressure
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

© 1998-2019 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
