Chamberlain Municipal Airport

US Flag

Chamberlain Weather (°F)

K9V9 (0.1 NM at True Heading of 175)
METAR: K9V9 262135Z AUTO 19019G26KT 10SM CLR 33/21 A2989 RMK AO2 T03320210
TAF: N/A

Location

Latitude:
43-45-58.0935N (43.766137)
Longitude:
099-19-16.4251W (-99.321229)
Elevation:
1696.3 feet MSL (517 m MSL)
Magnetic Variation:
4.7 E (as of July 2021 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
03 N.M. S of Chamberlain, South Dakota
Found On:
Omaha Chart
FAA Region:
AGL

Contacts

Manager:
Publicly owned:
DUSTEN HRABE
101 AIRPORT ROAD
CHAMBERLAIN, SD 57325
605-680-9935
CITY OF CHAMBERLAIN
715 N. MAIN ST.
CHAMBERLAIN, SD 57325
(605) 680-9935

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
05/1981
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/ALL
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
2696 feet (822 m)
NOTAMs Facility:
9V9
NOTAM-D Service:
Yes

Based Aircraft

Single Engine:  17

Annual Operations (as of 09/04/2019)

Total Operations:  7512
Air Taxi:  6 0.1%
GA Local:  6500 86.5%
GA Itinerant:  1000 13.3%
Military Aircraft:  6 0.1%

Communications

CTAF:  122.800
Unicom:  122.800
AWOS-3P:  118.025 (605-234-1437)

  • APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 125.1/269.1 (PIERRE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 605

Business Name Frequency Phone Fuel Grade
Agri Air

734-5881, -5401 80, 100LL
Creamer Aviation

734-5365 100LL, MOGAS
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Huron(HON)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 07/15/21 to 0901Z 08/12/21.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 13 NC-1
IAP RNAV (GPS) RWY 31 NC-1
MIN TAKEOFF MINIMUMS NC-1
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near 9V9

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
30.4 Platte Municipal Airport
(1D3)
135 131 100LL
32.9 Gregory Municipal - Flynn Field Airport
(9D1)
186 181 100LL, Jet A
48.2 Miller Municipal Airport
(KMKA MKA)
18 14 100LL, Jet A
55.6 Mitchell Municipal Airport
(MHE KMHE MHE)
89 85 100LL, Jet A
55.7 Pierre Regional Airport
(PIR KPIR PIR)
311 306 100LL, Jet A
60.0 Huron Regional Airport
(HON KHON HON)
51 47 100LL, Jet A
61.4 Wagner Municipal Airport
(KAGZ AGZ)
132 128 100LL
76.4 Faulkton Municipal Airport
(3FU)
6 1 100LL
76.5 Miller Field Airport
(VTN KVTN VTN)
224 219 100LL, Jet A
77.0 Ainsworth Regional Airport
(ANW KANW ANW)
202 197 100LL, Jet A
78.1 Gettysburg Municipal Airport
(0D8)
339 334 100LL, Jet A
82.6 The O'neill Municipal-John L Baker Field Airport
(ONL KONL ONL)
160 156 100LL, Jet A+
96.8 Clark County Airport
(8D7)
45 42 100LL, Jet A
97.8 Madison Municipal Airport
(XMD KMDS MDS)
80 77 100LL, Jet A
98.6 Chan Gurney Municipal Airport
(YKN KYKN YKN)
120 117 100LL, Jet A
99.9 Philip Airport
(PHP KPHP PHP)
280 274 100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL 9V9 NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 9V9

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 9V9

Remarks

A110-1 WATERFOWL ON & INVOF ARPT.
A110-3 GCO AVBL ON FREQ 121.725 ( 4 CLICKS TO MINNEAPOLIS CENTER AND 6 CLIKCS TO FLIGHT SERVICES)
A110-4 FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A42-18 A-FRAME MARKINGS - BLACK & YELLOW.
A42-36 A-FRAME MARKINGS - BLACK & YELLOW.
A70-FUEL-10 0LL FUEL AVBL 24 HRS WITH CREDIT CARD.
A81-APT MIRL RY 13/31 PRESET ON LOW INTST, TO INCR INTST & ACTVT PAPI RYS 13 & 31 - CTAF.

Runways

Runway Summary

Runways: 13/31
18/36
Longest Runway: 13/31 is 4299 ft (1310 m) long
Runways with an Instrument Approach:

9V9 Airport Runway Details

Runway 13/31  4299 ft x 75 ft (1310 m x 23 m)
Runway Length Source:  3RD PARTY SURVEY as of 02/09/2009
Surface:  Asphalt - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  12.5
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 13

Runway 31

Elevation:
1696.3 1678.1
Latitude:
43-46-13.0298N 43-45-40.0588N
Longitude:
099-19-35.0766W 099-18-58.1807W
True Magnetic Hdg.:
141 321
ILS Type:
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Fair Fair
Arresting Device:
Object at End:
TREE
Object Height:
64
Object Marked/Lighted?:
Distance from End:
1539
Object Centerline Offset:
415 ft. left of centerline
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Runway Visual Range (RVR):
Approach Light System:
REIL:
No No
Touchdown Lights:
No No
Centerline Lights:
No No
Threshold Crossing Height:
40 40
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 18/36  3403 ft x 150 ft (1037 m x 46 m)
Runway Length Source:  3RD PARTY SURVEY as of 02/09/2009
Surface:  Asphalt - Fair condition -
Runway Pavement Class:
Runway Edge Lights:  Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 18

Runway 36

Elevation:
1696.0 1680.0
Latitude:
43-46-16.7251N 43-45-43.3761N
Longitude:
099-19-13.3041W 099-19-19.0319W
True Magnetic Hdg.:
187 007
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
POLE
Object Height:
46
Object Marked/Lighted?:
Distance from End:
1000
Object Centerline Offset:
415 ft. left of centerline
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Airframe Repair:
None
Powerplant Repair:
None
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

9V9 Airport Sectional

Flight Planning
at skyvector.com

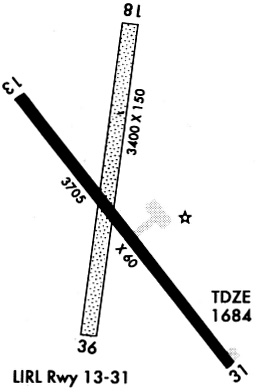

9V9 Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
