Keflavik International Airport

IS Flag

Reykjavík Weather (°C)

BIKF (0.3 NM at True Heading of 298)
METAR: BIKF 280800Z 14015KT 9999 -RA FEW018 SCT024 OVC032 01/00 Q1008
TAF: TAF BIKF 280407Z 2806/2906 15015KT 9999 -RA BKN020 OVC035 TX07/2818Z TN02/2806Z PROB40 TEMPO 2806/2808 3000 RA BR OVC010 BECMG 2808/2810 14020KT 7000 RA BKN010 OVC025 TEMPO 2809/2900 1500 RA BR OVC005 BECMG 2813/2815 23012KT BECMG 2822/2900 29012KT 9999 BKN015 OVC040 BECMG 2904/2906 03010KT

Location

Latitude:
63-59-06.0022N (63.985001)
Longitude:
022-36-20.1613W (-22.6056)
Elevation:
171 feet MSL (52 m MSL)
Magnetic Variation:
12.9 W (as of November 2021 from WMM2020 model)
Time Zone:
UTC +0.0 (Standard Time)
UTC +0.0 (Daylight Savings Time)

Contacts

Manager:






Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Traffic Pattern Altitude:
1171 feet (357 m)

Based Aircraft

Annual Operations (as of )

Communications

TWR:  118.3
AIR GND:  131.9
GND:  121.9
APP:  119.3
DEP:  119.3
ATIS:  128.3
BASE OPS:  129
PMSV METRO:  125


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
Business Name Frequency Phone Fuel Grade
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:
FSS Name (ID):
Frequency:
Toll Free Phone:

Instrument Procedures / Charts

Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near KEF

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade

Notices to Airmen (NOTAMS)

NOTAMs

List ALL BIKF NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of BIKF

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of BIKF

Remarks

No remarks for this landing facility

Runways

Runway Summary

Runways: 01/19
10/28
Longest Runway: 10/28 is 10056 ft (3065 m) long
Runways with an Instrument Approach:

KEF Airport Runway Details

Runway 01/19  10020 ft x 197 ft (3054 m x 60 m)
Runway Length Source:  as of
Surface:  Asphalt -
Runway Pavement Class:
Runway Edge Lights:  Yes Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 01

Runway 19

Elevation:
135 161
Latitude:
63.9645 63.9919
Longitude:
-22.6055 -22.6054
True Magnetic Hdg.:
180
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
135 161
Displaced Threshold:
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Runway 10/28  10056 ft x 197 ft (3065 m x 60 m)
Runway Length Source:  as of
Surface:  Asphalt -
Runway Pavement Class:
Runway Edge Lights:  Yes Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 10

Runway 28

Elevation:
109 168
Latitude:
63.985 63.985
Longitude:
-22.655 -22.5924
True Magnetic Hdg.:
90 270
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
Object Marked/Lighted?:
Distance from End:
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
109 168
Displaced Threshold:
43 43
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
Take Off Distance Avbl. (TODA):
Actual Stop Dist. Avbl. (ASDA):
Landing Dist. Avbl. (LDA):

Services

Fuel Available:
100LL, Jet A

Maps & Diagrams

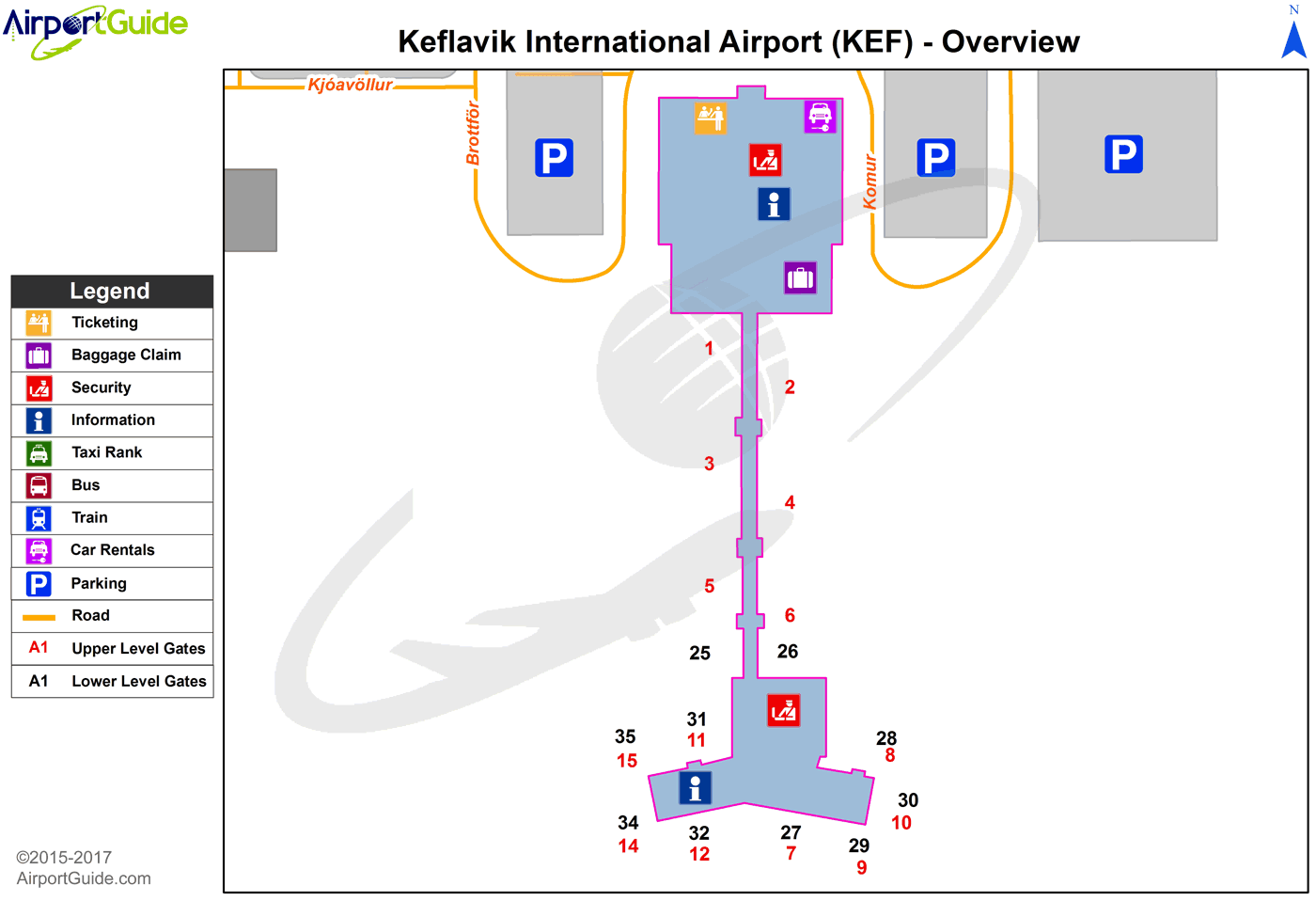

KEF Airport Terminal Map

Reykjavík - Keflavik International (KEF) Airport Terminal Map - Overview

To license this image, please contact us.

KEF Airport Sectional

Flight Planning
at skyvector.com

KEF Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.
