Location
Latitude: |
38-08-22.9266N (38.139702) |
Longitude: |
140-55-01.2268E (140.917007) |
Elevation: |
15 feet MSL (5 m MSL) |
Magnetic Variation: |
8.4 W (as of January 2023 from WMM2020 model) |
Time Zone: |
UTC +9.0 (Standard Time) UTC +9.0 (Daylight Savings Time) |
Contacts
Manager: |
: |
Operations
Airport Status: |
Operational |
Facility Use: |
Public |
Type: |
Airport |
Traffic Pattern Altitude (MSL): |
1015 feet (309 m) |
Based Aircraft
Annual Operations (as of )
Communications
| TWR: | 118.7 |
| GND: | 121.7 |
| APP: | 120.4 |
| DEP: | 120 |
| ATIS: | 126.45 |
| TCA: | 121.025 |
Fixed Based Operators (FBOs) & Fuel
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
To add, modify, or delete a business click here.
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
| Business Name | Frequency | Phone | Fuel Grade |
|---|
Flight Service Stations
| Primary | Alternate | |
| FSS on Field: | ||
| FSS Name (ID): | ||
| Frequency: | ||
| Toll Free Phone: |
Instrument Procedures / Charts
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
Navigation Aids (Navaids) near SDJ
| Dist (NM) | ID | Morse Code | Name | Type | Freq | True Hdg | Mag Hdg |
|---|---|---|---|---|---|---|---|
| 0.2 | SDE | Sendai | VOR-DME | 116.30 | 109 | 117 | |
| 21.5 | MXT | Matsushima | TACAN | 114.30 | 42 | 50 | |
| 27.6 | ZMO | Zao-Yamada | VOR | 110.80 | 276 | 284 | |
| 30.3 | YTE | Yamagata | VOR-DME | 113.00 | 299 | 308 | |
| 59.5 | FKE | Fukushima | VOR-DME | 113.45 | 202 | 210 | |
| 59.5 | IXE | Iwaki | VOR-DME | 117.70 | 177 | 185 | |
| 66.2 | YSE | Shonai | VOR-DME | 109.60 | 307 | 316 | |
| 78.3 | HPE | Hanamaki | VOR-DME | 112.80 | 7 | 16 | |
| 85.8 | GTC | Niigata | VORTAC | 115.50 | 263 | 272 | |
| 86.1 | GT | Niigata | NDB | 253 | 262 | 271 | |
| 86.7 | GO | Daigo | NDB | 221 | 198 | 206 | |
| 88.0 | GOC | Daigo | VORTAC | 115.30 | 198 | 206 | |
| 91.6 | NZE | Nasu | VOR-DME | 114.80 | 207 | 215 | |
| 92.4 | BTE | Batoh | VOR-DME | 109.40 | 207 | 215 | |
| 95.0 | UWE | Yuwa | VOR-DME | 110.65 | 339 | 348 |
Nearby Airports with Fuel
| Dist (NM) | Name (Airport IDs) | True Hdg | Mag Hdg | Fuel Grade |
|---|
Notices to Airmen (NOTAMS)
Remarks
No remarks for this landing facility
Runways
Runway Summary
| Runways: | 09/27 12/30 |
| Longest Runway: | 09/27 is 9842 ft (3000 m) long |
| Runways with an Instrument Approach: |
SDJ Airport Runway Details
| Runway 09/27 | 9842 ft x 150 ft (3000 m x 46 m) | |
| Runway Edge Lights: | Yes Intensity | |
Runway 09 |
Runway 27 |
|
Elevation: |
11 | 15 |
Latitude: |
38.13880157470 | 38.14229965209 |
Longitude: |
140.89900207519 | 140.93299865722 |
|
Runway True Alignment: |
82.5 | 262.5 |
Glide Path Angle: |
0.0 degrees | 0.0 degrees |
REIL: |
Yes | Yes |
Threshold Elevation: |
11 | 15 |
| Runway 12/30 | 3940 ft x 150 ft (1201 m x 46 m) | |
| Runway Edge Lights: | Yes Intensity | |
Runway 12 |
Runway 30 |
|
Elevation: |
6 | 5 |
Latitude: |
38.13949966430 | 38.13439941406 |
Longitude: |
140.91499328613 | 140.92700195312 |
|
Runway True Alignment: |
117.7 | 297.7 |
Glide Path Angle: |
0.0 degrees | 0.0 degrees |
REIL: |
Yes | Yes |
Threshold Elevation: |
6 | 5 |
Services

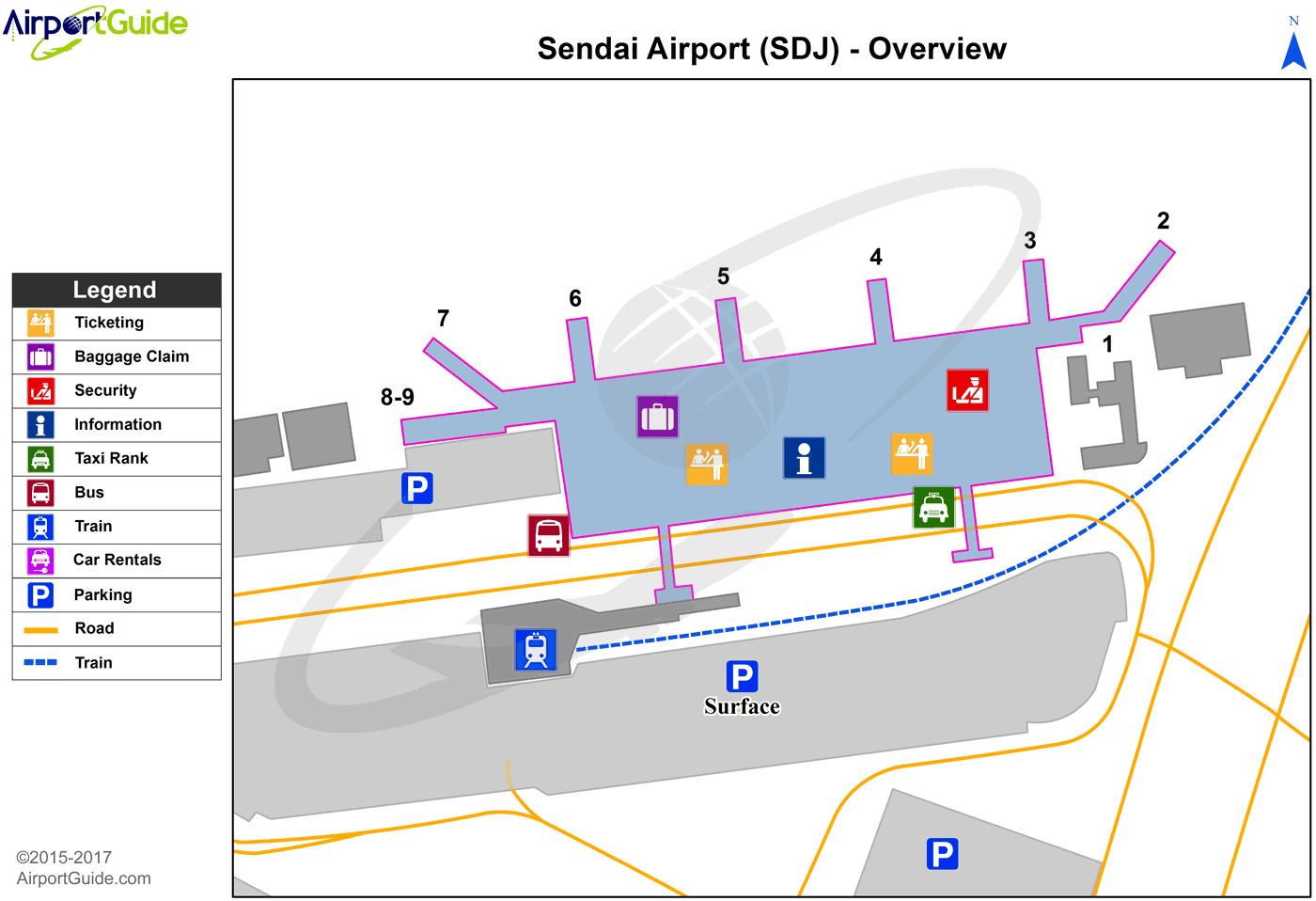

Maps & Diagrams
