Nápoli / Capodichino International Airport

IT Flag

IATA: NAP

ICAO: LIRN

LCL: NA01

Nápoli Weather (°C)

LIRN (0.1 NM at True Heading of 137)
METAR: LIRN 010550Z 02005KT 350V060 CAVOK 21/14 Q1015 NOSIG
TAF: TAF LIRN 010500Z 0106/0206 VRB04KT 9999 FEW030 BECMG 0109/0111 25010KT TEMPO 0111/0117 4000 TSRA BECMG 0116/0118 VRB04KT

Location

Latitude:
 40-53-09.6072N (40.886002)
Longitude:
 014-17-26.88E (14.2908)
Elevation:
 294 feet MSL (90 m MSL)
Magnetic Variation:
 4.1 E (as of June 2023 from WMM2020 model)
Time Zone:
 UTC +1.0 (Standard Time)
UTC +2.0 (Daylight Savings Time)

Contacts

NAP Airport web site
Manager:
:






Operations

Airport Status:
 Operational
Facility Use:
 Public
Type:
 Airport
Traffic Pattern Altitude (MSL):
 1294 feet (394 m)

Based Aircraft

Annual Operations (as of )

Communications

NAPOLI TWR:  118.5
NAPOLI GND CLNC DEL:  121.9
NAPOLI RADAR:  124.35
ATIS:  135.975
NAPOLI DIRECTOR:  120.95
USN BASE OPS:  118.275
PMSV METRO:  34.1
ATOC:  118.275


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
Business Name Frequency Phone Fuel Grade
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:
FSS Name (ID):
Frequency:
Toll Free Phone:

Instrument Procedures / Charts

Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near NAP

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade

Notices to Airmen (NOTAMS)

NOTAMs

List ALL LIRN NOTAMs
View LIRN NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of LIRN

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of LIRN

Remarks

No remarks for this landing facility

Runways

Runway Summary

Runways: 06/24
Longest Runway: 06/24 is 8622 ft (2628 m) long
Runways with an Instrument Approach:

NAP Airport Runway Details

Runway 06/24  8622 ft x 148 ft (2628 m x 45 m)
Runway Edge Lights:  Yes Intensity

Runway 06

Runway 24
Elevation:
 284 223
Latitude:
 40.87979888916 40.89229965209
Longitude:
 14.277500152587 14.303999900817
Runway True Alignment:
 58.1 238.1
Glide Path Angle:
 0.0 degrees 0.0 degrees
REIL:
 Yes Yes
Threshold Elevation:
 284 223
Displaced Threshold:
 1309 624

Services

Maps & Diagrams

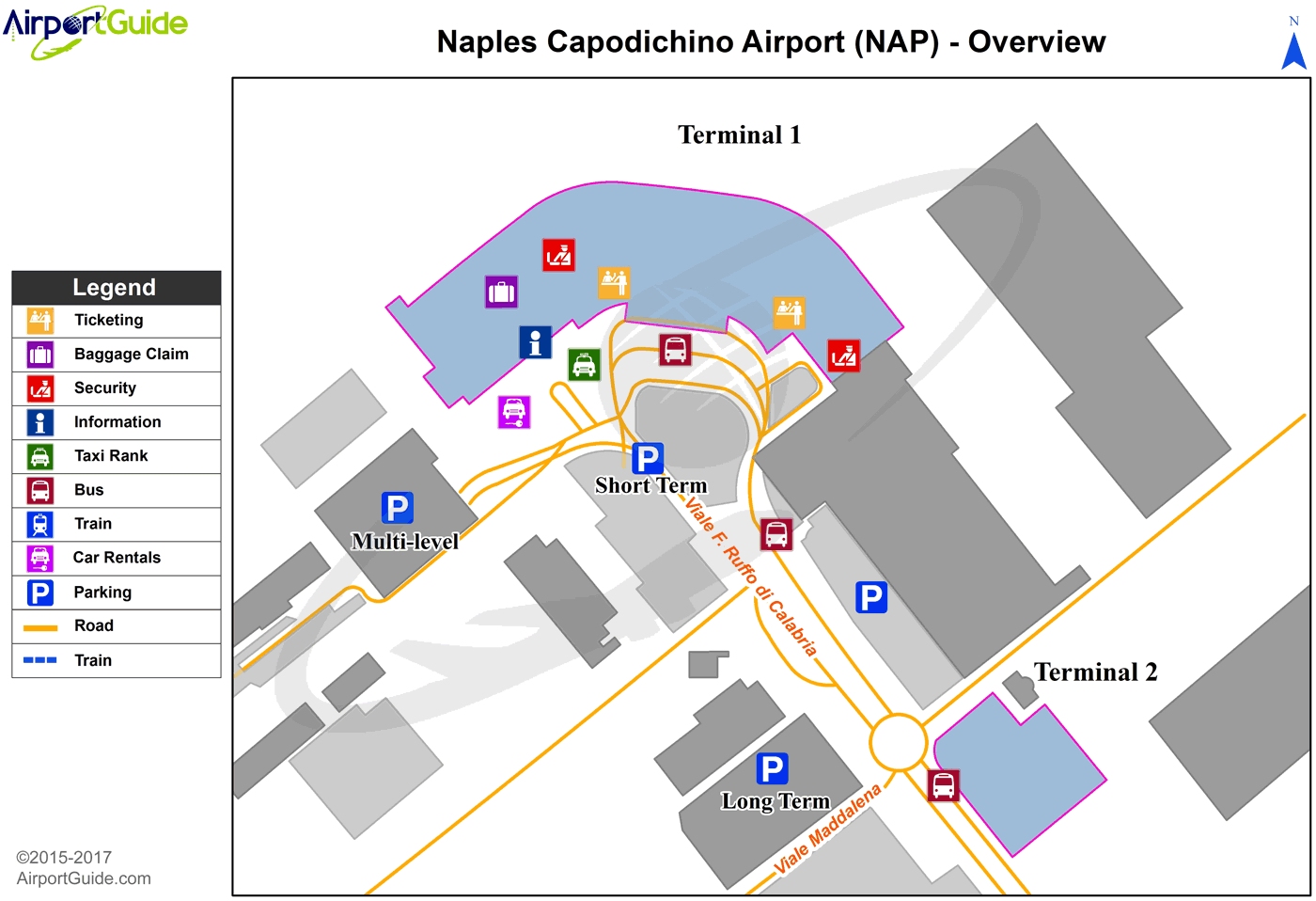

NAP Terminal Map

Nápoli - Naples International Airport (NAP) Airport Terminal Map - Overview

To license this image, please contact us.

NAP Sectional

Flight Planning
at skyvector.com

NAP Diagram


Do you have a better diagram of this ?
Please share it with us.
