  • Location

    Latitude:
    42-46-30.7196N (42.775200)
    Longitude:
    141-41-31.2048E (141.692001)
    Elevation:
    82 feet MSL (25 m MSL)
    Magnetic Variation:
    9.4 W (as of August 2018 from WMM2015 model)
    Time Zone:
    UTC +9.0 (Standard Time)
    UTC +9.0 (Daylight Savings Time)
    From City:
    0 N.M. of Sapporo, Hokkaidō Prefecture
  • Airport Operations

    Airport Status:
    Operational
    Facility Use:
    Public
    Type:
    Airport
    Traffic Pattern Altitude:
    1082 feet (330 m)

    Based Aircraft

    Annual Operations (as of )

  • Communications

    CHITOSE TWR:  118.8
    CHITOSE CLNC DEL:  121.9
    CHITOSE GND:  121.6
    CHITOSE APP:  120.1
    CHITOSE DEP:  124.7
    ATIS:  128.6
    TCA:  127.7

  • Contacts

    Manager:






  • Fixed Based Operators (FBOs) & Fuel

    If you are in the EU then you may be asked to comply with the cookie and privacy policy of our partner web sites offering these travel products. Don't be concerned as they want to be doubly sure you know how your data is being used.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
    Business Name Frequency Phone Fuel Grade
    To add, modify, or delete a business click here.

  • Flight Service Stations

    Primary Alternate
    FSS on Field:
    FSS Name (ID):
    Frequency:
    Toll Free Phone:

  • Instrument Procedures / Charts

    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
  • Maps

    Sapporo - New Chitose (CTS) Airport Terminal Map

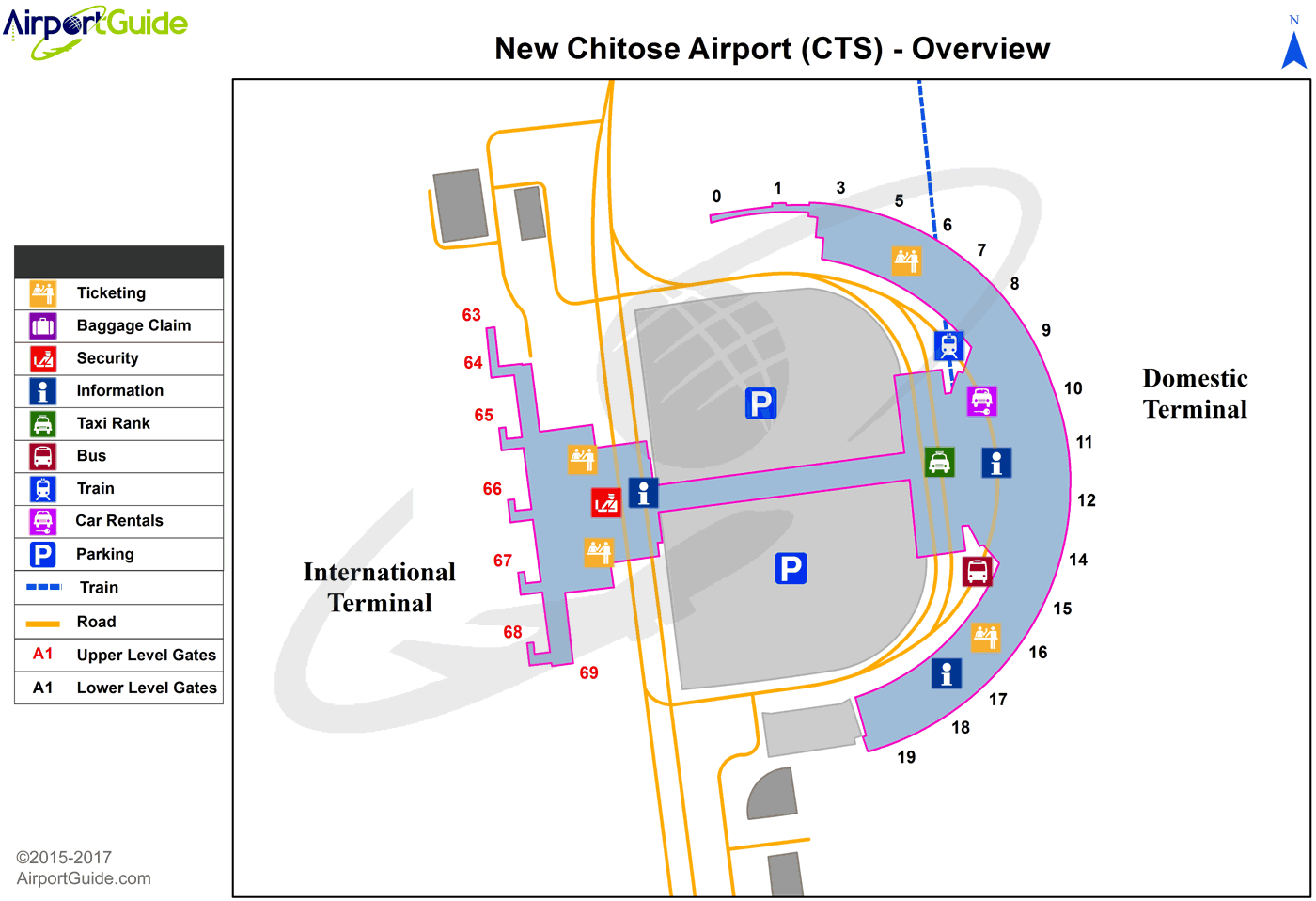

    Sapporo - New Chitose (CTS) Airport Terminal Map - Overview
    To license this image, contact us.

    CTS Airport Sectional

    Flight Planning
    at skyvector.com

    CTS Airport Diagram


    Do you have a better diagram of this Airport?
    Please share it with us.
  • METAR / TAF

    METAR

    TAF

  • Navigation Aids (Navaids) near CTS

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).
  • Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
  • Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL RJCC NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of RJCC

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:
  • Ratings & Reviews

    New Chitose Airport Ratings

    Category Aspect Rating
    Overall Rating for New Chitose Airport
    • 0.0/5 (0 votes cast)

    Flight Service Number of Flights
    • 0.0/5 (0 votes cast)

    Overall Number of Routes Served
    • 0.0/5 (0 votes cast)

    International Routes Served
    • 0.0/5 (0 votes cast)

    On-time Performance
    • 0.0/5 (0 votes cast)

    Business Services & Internet Airport Lounges
    • 0.0/5 (0 votes cast)

    Business Centers
    • 0.0/5 (0 votes cast)

    Airport Website (information & tools)
    • 0.0/5 (0 votes cast)

    Availability of Internet Connectivity
    • 0.0/5 (0 votes cast)

    Wireless Internet Access
    • 0.0/5 (0 votes cast)

    General Facilities ATM Locations
    • 0.0/5 (0 votes cast)

    Public Telephones
    • 0.0/5 (0 votes cast)

    Restrooms
    • 0.0/5 (0 votes cast)

    Architecture
    • 0.0/5 (0 votes cast)

    Terminal Layout
    • 0.0/5 (0 votes cast)

    Seating Areas
    • 0.0/5 (0 votes cast)

    Overall Cleanliness
    • 0.0/5 (0 votes cast)

    Children Play Areas
    • 0.0/5 (0 votes cast)

    Geographic Location
    • 0.0/5 (0 votes cast)

    Baggage Claim Locations
    • 0.0/5 (0 votes cast)

    Baggage Handling
    • 0.0/5 (0 votes cast)

    Overall Comfort
    • 0.0/5 (0 votes cast)

    Security Lines
    • 0.0/5 (0 votes cast)

    Transportation & Parking Parking Availability
    • 0.0/5 (0 votes cast)

    Parking Pricing
    • 0.0/5 (0 votes cast)

    Public Transport
    • 0.0/5 (0 votes cast)

    Car Rental
    • 0.0/5 (0 votes cast)

    Taxis
    • 0.0/5 (0 votes cast)

    Hotel Shuttles
    • 0.0/5 (0 votes cast)

    Proximity to City Center
    • 0.0/5 (0 votes cast)

    Amenities Shopping (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (price/value)
    • 0.0/5 (0 votes cast)

  • Remarks

    No remarks for this landing facility

  • Runways

    CTS Airport Runway Summary

    Longest Runway: 01L/19R is 9850 ft (3002 m) long
    Runways with an Instrument Approach:

    CTS Airport Runway Details

    Runway 01L/19R  9840 ft x 200 ft (2999 m x 61 m)
    Runway Length Source:  as of
    Surface:  Asphalt -
    Runway Pavement Class:
    Runway Edge Lights:  Yes Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 01L

    Runway 19R

    Elevation:
    62 82
    Latitude:
    42.7616 42.7884
    Longitude:
    141.693 141.688
    True Magnetic Hdg.:
    353 173
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    62 82
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 01R/19L  9840 ft x 200 ft (2999 m x 61 m)
    Runway Length Source:  as of
    Surface:  Asphalt -
    Runway Pavement Class:
    Runway Edge Lights:  Yes Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 01R

    Runway 19L

    Elevation:
    57 77
    Latitude:
    42.762 42.7888
    Longitude:
    141.696 141.692
    True Magnetic Hdg.:
    353 173
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    57 77
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 01L/19R  9850 ft x 200 ft (3002 m x 61 m)
    Runway Length Source:  as of
    Surface:  Asphalt -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 01L

    Runway 19R

    Elevation:
    0 0
    Latitude:
    42.761639 42.788433
    Longitude:
    141.692825 141.688106
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Precision approach markings Precision approach markings
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    ALSF-I ALSF-I
    REIL:
    None None
    Touchdown Lights:
    Touchdown-zone lights available Touchdown-zone lights available
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 01R/19L  9845 ft x 200 ft (3001 m x 61 m)
    Runway Length Source:  as of
    Surface:  Asphalt -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 01R

    Runway 19L

    Elevation:
    0 0
    Latitude:
    42.761986 42.788767
    Longitude:
    141.696458 141.691744
    True Magnetic Hdg.:
    0 0
    ILS Type:
    Glide Path Angle:
    3.0 degrees 3.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Precision approach markings Non-precision approach markings
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    4-Light PAPI On Left Side Of Runway 4-Light PAPI On Left Side Of Runway
    Runway Visual Range (RVR):
    Approach Light System:
    ALSF-I SALS
    REIL:
    None None
    Touchdown Lights:
    Touchdown-zone lights available None
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0
