Liberty Municipal Airport

US Flag

Liberty Weather (°F)

METAR: KT78 190755Z AUTO 36004KT 10SM CLR 08/02 A3021 RMK AO2

TAF: N/A

Reporting Station: KT78 (0.2 NM at True Heading of 200)
Visibility: 10+SM
Flight Category: VFR
Altimeter: 1023.1
Temperature: 8 C (46.4 F)
Dewpoint: 2 C (35.6 F)

Location

Latitude:
30-04-40.1000N (30.077806)
Longitude:
094-41-54.8000W (-94.698556)
Elevation:
69.5 feet MSL (21 m MSL)
Magnetic Variation:
1.5 E (as of March 2024 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
06 N.M. NE of Liberty, Texas
Found On:
Houston Chart
FAA Region:
ASW

Contacts

Manager:
Publicly owned:
PHIL ROBERTSON
1829 SAM HOUSTON
LIBERTY, TX 77575
(281) 660-2337
CITY OF LIBERTY
1829 SAM HOUSTON
LIBERTY, TX 77575
936-587-4150

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
08/1959
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
ALL/ALL/0800-1800
Boundary ARTCC:
ZHU (Houston)
Responsible ARTCC:
ZHU (Houston)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Traffic Pattern Altitude (MSL):
1070 feet (326 m)
NOTAMs Facility:
CXO
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  22
Multi Engine:  2

Annual Operations (as of 04/07/2023)

Total Operations:  6243
GA Local:  2555 40.9%
GA Itinerant:  3640 58.3%
Military Aircraft:  48 0.8%

Communications

CTAF:  122.900
Approach:  HOUSTON
Departure:  HOUSTON
AWOS-3PT:  120.775 (936-587-4150)



    Fixed Based Operators (FBOs) & Fuel

    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 409

    Business Name Frequency Phone Fuel Grade
    OLC
       Update FBO info
    Unicom 122.9 336-7441, -9717 100LL
    To add, modify, or delete a business click here.

    Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Montgomery County(CXO)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

    Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 02/22/24 to 0901Z 03/21/24.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    DP BLTWY SEVEN (RNAV) SC-5
    DP BORRN SIX (RNAV) SC-5
    DP BORRN SIX (RNAV)[DELIMITER] CONT.1 SC-5
    DP HOODO SEVEN (RNAV) SC-5
    DP INDIE EIGHT (RNAV) SC-5
    DP KARRR SEVEN (RNAV) SC-5
    DP KARRR SEVEN (RNAV)[DELIMITER] CONT.1 SC-5
    DP LURIC EIGHT (RNAV) SC-5
    DP MMALT SEVEN (RNAV) SC-5
    DP PALACIOS THREE SC-5
    DP PALACIOS THREE[DELIMITER] CONT.1 SC-5
    DP STRYA EIGHT (RNAV) SC-5
    DP STYCK EIGHT (RNAV) SC-5
    DP WATFO SIX (RNAV) SC-5
    DP WYLSN EIGHT (RNAV) SC-5
    IAP RNAV (GPS) RWY 16 SC-5
    IAP VOR-A SC-5
    MIN TAKEOFF MINIMUMS SC-5
    STAR HUDZY FOUR SC-5
    STAR HUDZY FOUR[DELIMITER] CONT.1 SC-5
    STAR OHIIO FOUR SC-5
    STAR PIEGY ONE (RNAV) SC-5
    STAR RIICE NINE SC-5
    STAR RIICE NINE[DELIMITER] CONT.1 SC-5
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

    Navigation Aids (Navaids) near T78

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

    Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    20.5 Rwj Airpark Airport
    (54T)
    202 200 100LL, Jet A
    23.2 Cleveland Municipal Airport
    (6R3)
    316 314 100LL
    25.1 Beaumont Municipal Airport
    (BMT KBMT BMT)
    90 89 100LL, Jet A
    27.6 Hawthorne Field Airport
    (45R)
    55 54 100LL, Jet A
    31.0 La Porte Municipal Airport
    (T41)
    217 215 100LL, Jet A
    33.9 George Bush Intcntl/Houston Airport
    (IAH KIAH IAH)
    260 258 100LL, Jet A
    36.0 Jack Brooks Regional Airport
    (BPT KBPT BPT)
    102 101 100LL, Jet A
    37.0 Ellington Airport
    (EFD KEFD EFD)
    220 218 100LL, Jet A
    39.7 William P Hobby Airport
    (HOU KHOU HOU)
    229 227 100LL, Jet A, Jet A-1
    40.7 Conroe/North Houston Regional Airport
    (CXO KCXO CXO)
    294 292 100LL, Jet A
    43.8 Pearland Regional Airport
    (KLVJ LVJ)
    220 218 100LL, Jet A
    44.4 David Wayne Hooks Meml Airport
    (DWH KDWH DWH)
    268 266 100LL, Jet A, Jet A-1+
    46.5 Orange County Airport
    (KORG ORG)
    90 89 100LL, Jet A
    48.6 Wolfe Air Park Airport
    (3T2)
    222 220 100LL
    49.5 Scholes International At Galveston Airport
    (GLS KGLS GLS)
    189 187 100LL, Jet A
    53.0 West Houston Airport
    (IWS KIWS IWS)
    253 251 100LL, Jet A+
    53.1 Houston/Southwest Airport
    (KAXH AXH)
    229 227 100LL, Jet A+
    56.9 Sugar Land Regional Airport
    (SGR KSGR SGR)
    241 239 100LL, Jet A+
    68.7 Southland Field Airport
    (KUXL UXL)
    86 85 100LL, Jet A
    69.4 Angelina County Airport
    (LFK KLFK LFK)
    357 356 100LL, Jet A+

    Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL T78 NOTAMs

    NOTAM Radius Search

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of T78

    NOTAM Flight Path Search (Enter from two to five locations below)

    NOTAMS within

    Enter NOTAM radius search distance

    This field is required
    NM of T78

    Remarks

    A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
    A110-3 FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
    A57-16 OBSTN EXCEEDS 45 DEG ANGLE.
    A58-16 31 FT TREES, 0-199 FT DSTC, 182 FT R.
    A70-FUEL-10 0LL 24 HR SELF-SVC FUEL.
    A81-APT ACTVT MIRL RWY 16/34 - CTAF.

    Runways

    Runway Summary

    Runways: 16/34
    Longest Runway: 16/34 is 3801 ft (1159 m) long
    Runways with an Instrument Approach:

    T78 Airport Runway Details

    Runway 16/34  3801 ft x 75 ft (1159 m x 23 m)
    Runway Length Source:  NGS as of 01/26/2008
    Surface:  Asphalt - Fair condition - No special surface treatment
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  10.0

    Runway 16

    Runway 34

    Elevation:
    68.9 68.6
    Latitude:
    30-04-58.2910N 30-04-21.8195N
    Longitude:
    094-42-00.0726W 094-41-49.4432W
    Runway True Alignment:
    166 346
    Glide Path Angle:
    3.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Fair Fair
    Object at End:
    TREES TREES
    Object Height:
    31 65
    Distance from End:
    201 1250
    Object Centerline Offset:
    182 ft. right of centerline 150 ft. right of centerline
    Visual Glide Slope Indicators:
    2-Light PAPI On Left Side Of Runway
    Threshold Crossing Height:
    23

    Services

    Airframe Repair:
    Minor
    Powerplant Repair:
    Minor
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL, Jet A+
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

    Maps & Diagrams

    T78 Sectional

    Flight Planning
    at skyvector.com

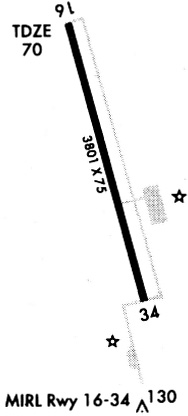

    T78 Diagram


    Do you have a better diagram of this ?
    Please share it with us.
