Airport Details

Directions to KEHA Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
37-00-02.8000N (37.000778)
Longitude:
101-52-48.1000W (-101.880028)
Elevation:
3621.6 feet MSL (1104 m MSL)
Magnetic Variation:
6.3 E (as of June 2018 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
1 N.M. E of Elkhart, Kansas
Found On:
Wichita Chart
FAA Region:
ACE

Operations

Facility Use:
Public
Type:
Airport
Activation Date:
01/1942
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
Unattended
Boundary ARTCC:
ZKC (Kansas City)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
4622 feet (1409 m)
NOTAMs Facility:
ICT
NOTAM-D Service:
Yes
International Airport of Entry:
No
Customs Landing Rights:
No
Military Landing Rights:
Yes
Civil/Military Joint Use:
No

Based Aircraft

Single Engine:  8
Multi Engine:  2

Annual Operations (as of 09/14/2016)

Total Operations:  6000
GA Local:  3400 56.7%
GA Itinerant:  2600 43.3%

Communications

CTAF:  122.800
Unicom:  122.800
AWOS-3PT:  118.025 (620-697-4973)

  • APCH/DEP SERVICE PROVIDED BY KANSAS CITY ARTCC ON FREQS 134.0/290.8 (LIBERAL RCAG).


Contacts

Manager:
Publicly owned:
DUSTY BRILLHART
PO BOX 1116
ELKHART, KS 67950
(620) 697-2803
MORTON COUNTY
P.O. BOX 1116
ELKHART, KS 67950
620-697-2157

Fixed Based Operators (FBOs) & Fuel

Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!

If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
You can also add fuel prices for FBOs on this same form.
(Click on a business for detail)

Area Code: 620

Business Name Frequency Phone Fuel Grade & Location
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Wichita(ICT)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 05/24/18 to 0901Z 06/21/18.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP NDB RWY 35 NC-2
IAP RNAV (GPS) RWY 04 NC-2
IAP RNAV (GPS) RWY 17 NC-2
IAP RNAV (GPS) RWY 22 NC-2
IAP RNAV (GPS) RWY 35 NC-2
MIN ALTERNATE MINIMUMS NC-2
MIN TAKEOFF MINIMUMS NC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps, Charts, & Diagrams

Elkhart - Elkhart-Morton County (KEHA) Airport Terminal Map

Terminal Map Not Available for this Airport

KEHA Airport Sectional

Flight Planning
at skyvector.com

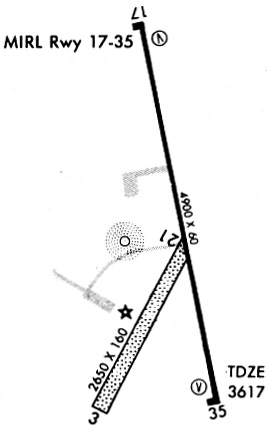

KEHA Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF Weather

METAR

TAF

Navigation Aids (Navaids) near KEHA

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
26.0 Guymon Municipal Airport
(GUY KGUY GUY)
136 130 100LL, Jet A
35.8 Stanton County Municipal Airport
(KJHN JHN)
11 5 100LL, Jet A
43.5 Ulysses Airport
(KULS ULS)
33 27 100LL, Jet A
44.2 Liberal Mid-America Regional Airport
(LBL KLBL LBL)
86 80 100LL, Jet A
60.3 Miller Airfield Airport
(25TS)
205 198 100LL, MOGAS
63.1 Holly Airport
(K08)
349 343 100LL
64.7 Perryton Ochiltree County Airport
(KPYX PYX)
122 116 100LL, Jet A-1+
66.9 Dalhart Municipal Airport
(DHT KDHT DHT)
208 201 100LL, Jet A-1
68.9 Moore County Airport
(KDUX DUX)
185 179 100LL, Jet A
69.5 Clayton Municipal Arpk Airport
(CAO KCAO CAO)
241 234 100LL, Jet A
74.8 Lamar Municipal Airport
(LAA KLAA LAA)
329 322 100LL, Jet A
74.9 Judy Ranch Airport
(OK39)
91 86 100LL
78.2 Garden City Regional Airport
(GCK KGCK GCK)
44 38 100LL, Jet A
81.5 Hutchinson County Airport
(BGD KBGD BGD)
163 157 100LL, Jet A
91.0 Mark Hoard Memorial Airport
(3K7)
15 9 100LL
93.6 Perry Lefors Field Airport
(PPA KPPA PPA)
152 146 100LL, Jet A-1+
97.3 Hemphill County Airport
(KHHF HHF)
132 127 100LL, Jet A
99.9 La Junta Municipal Airport
(KLHX LHX)
309 302 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL KEHA NOTAMs

NOTAM Radius Search

NOTAMS within
NM of KEHA

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Elkhart-Morton County Airport Ratings

Category Aspect Rating
Overall Rating for Elkhart-Morton County Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 0.0/5 (0 votes cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 0.0/5 (0 votes cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 0.0/5 (0 votes cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 0.0/5 (0 votes cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 0.0/5 (0 votes cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 0.0/5 (0 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 3.0/5 (1 vote cast)

Security Lines
  • 0.0/5 (0 votes cast)

Transportation & Parking Parking Availability
  • 0.0/5 (0 votes cast)

Parking Pricing
  • 0.0/5 (0 votes cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 0.0/5 (0 votes cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Runways

KEHA Airport Runway Summary

Longest Runway: 04/22 is 4900 ft (1494 m) long
Runways with an Instrument Approach:

KEHA Airport Runway Details



Runway 04/22  4900 ft x 60 ft (1494 m x 18 m)
Runway Length Source:  as of
Surface:  Asphalt -
Runway Pavement Class:
Runway Edge Lights:  Yes Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 04

Runway 22

Elevation:
3622 3594
Latitude:
36.9951 37.0041
Longitude:
-101.884 -101.872
True Magnetic Hdg.:
48 228
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
0 0
Object Marked/Lighted?:
Distance from End:
0 0
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
3622 3594
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0



Runway 17/35  4900 ft x 60 ft (1494 m x 18 m)
Runway Length Source:  as of
Surface:  Asphalt -
Runway Pavement Class:
Runway Edge Lights:  Yes Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 17

Runway 35

Elevation:
3605 3616
Latitude:
37.0086 36.9952
Longitude:
-101.882 -101.882
True Magnetic Hdg.:
179 359
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
0 0
Object Marked/Lighted?:
Distance from End:
0 0
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
3605 3616
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Remarks

A110-2 PUBLIC PHONE (620) 697-9803.
A16 CELL PHONE # 620-360-3600.
A52-22 PIVOT IRRIGATION TWR (MOVING WHEN IN OPN).
A70 FOR FUEL CALL (620) 697-2803.
A81-APT ACTVT PAPI RYS 04, 17, 22 & 35 - CTAF.

Services

Bottled Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available
Other Services:
Engine overhaul
