Smith Center Municipal Airport

Saturday 23 June 2018
UTC: 23:15:13 GMT (Zulu) Local:

Saturday 23 June 2018 UTC: 23:15:13 GMT (Zulu) Local:

Directions to K82 Airport

Thank you! Your submission was successfully sent :-)×

Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:	39-45-45.4000N (39.762611)
Longitude:	098-47-40.2000W (-98.794500)
Elevation:	1799.5 feet MSL (548 m MSL)
Magnetic Variation:	4.5 E (as of June 2018 from WMM2015 model)
Time Zone:	UTC -6.0 (Standard Time) UTC -5.0 (Daylight Savings Time)
From City:	1 N.M. SW of Smith Center, Kansas
Found On:	Wichita Chart
FAA Region:	ACE

Operations

Facility Use:	Public
Type:	Airport
Activation Date:	12/1944
Control tower:	No
Attendance (Months/Days/Hours):	Months/Days/Hours ON CALL
Boundary ARTCC:	ZMP (Minneapolis)
Lighting Schedule:	SEE RMK
Segmented Circle Indicator:	No
Beacon Color:	White-Green (Lighted Land Airport)
Traffic Pattern Altitude:	2800 feet (853 m)
NOTAMs Facility:	ICT
NOTAM-D Service:	Yes
Civil/Military Joint Use:	No

Based Aircraft

Single Engine:	9
Ultralights:	3

Annual Operations (as of 09/11/2012)

Total Operations:	4012
GA Local:	2500	62.3%
GA Itinerant:	1500	37.4%
Military Aircraft:	12	0.3%

Communications

CTAF:	122.800
Unicom:	122.800
AWOS-3:	118.450 (785-282-3552)

APCH/DEP SVC PROVIDED BY MINNEAPOLIS ARTCC ON FREQS 119.4/278.8 (HASTINGS RCAG).

Contacts

Manager:	Publicly owned:
CITY OF SMITH CENTER 119 WEST COURT SMITH CENTER, KS 66967 785-282-3812	CITY OF SMITH CENTER SMITH CENTER SMITH CENTER, KS 66967

Fixed Based Operators (FBOs) & Fuel

Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!

If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
You can also add fuel prices for FBOs on this same form.

(Click on a business for detail)

Area Code: 785

Business Name	Frequency	Phone	Fuel Grade & Location

To add, modify, or delete a business click here.

Flight Service Stations

	Primary	Alternate
FSS on Field:	N
FSS Name (ID):	Wichita(ICT)
Frequency:
Toll Free Phone:	1-800-WX-BRIEF

Instrument Procedures / Charts

FAA Terminal Procedures valid from 0901Z 06/21/18 to 0901Z 07/19/18.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts

Page Type	Page Name	Volume
IAP	RNAV (GPS) RWY 14	NC-2
IAP	RNAV (GPS) RWY 18	NC-2
IAP	RNAV (GPS) RWY 32	NC-2
IAP	RNAV (GPS) RWY 36	NC-2
IAP	VOR-A	NC-2

Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps, Charts, & Diagrams

Smith Center - Smith Center Municipal (K82) Airport Terminal Map

Terminal Map Not Available for this Airport

K82 Airport Sectional

Flight Planning
at skyvector.com

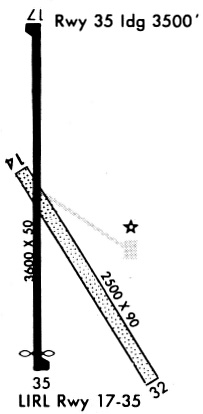

K82 Airport Diagram

Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF Weather

METAR

TAF

Navigation Aids (Navaids) near K82

Dist (NM)	ID	Morse Code	Name	Type	Freq	True Hdg	Mag Hdg
23.0	PHG	. _ _ . . . . . _ _ .	Phillipsburg	NDB	368	261	256
24.8	TKO	_ _ . _ _ _ _	Mankato	VORTAC	109.80	83	79
50.8	NRN	_ . . _ . _ .	Norton	NDB	230	276	271
52.5	RPB	. _ . . _ _ . _ . . .	Republican	NDB	414	86	82
52.9	EA	. . _	Anoke	NDB	422	348	343
53.2	HSI	. . . . . . . . .	Hastings	VOR-DME	108.80	18	14
54.3	CNK	_ . _ . _ . _ . _	Concordia	NDB	335	103	99
57.3	PSS	. _ _ . . . . . . .	Prosser	NDB	338	14	10
58.6	EAR	. . _ . _ .	Kearney	VOR	111.20	350	345
59.3	HYS	. . . . _ . _ _ . . .	Hays	VORTAC	110.40	202	197
60.2	HJH	. . . . . _ _ _ . . . .	Hebron	NDB	323	66	62
63.3	HY	. . . . _ . _ _	Nette	NDB	374	199	194
70.1	GR	_ _ . . _ .	Sancy	NDB	380	18	14
70.6	CSB	_ . _ . . . . _ . . .	Harry Strunk	NDB	389	297	292
72.8	HLC	. . . . . _ . . _ . _ .	Hill City	VORTAC	113.70	245	240
74.1	SLN	. . . . _ . . _ .	Salina	VORTAC	117.10	132	128
75.0	FMZ	. . _ . _ _ _ _ . .	Beklof	NDB	392	48	44
76.5	GRI	_ _ . . _ . . .	Grand Island	VOR-DME	112.00	16	12
78.9	FBY	. . _ . _ . . . _ . _ _	Fairbury	NDB	293	71	67
78.9	CYW	_ . _ . _ . _ _ . _ _	Clay Center	NDB	362	106	102

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM)	Name (Airport IDs)	True Hdg	Mag Hdg	Fuel Grade
20.5	Osborne Municipal Airport (K75)	164	160	100LL
35.4	Moritz Memorial Airport (K61)	119	115	100LL, Jet A
37.8	Superior Municipal Airport (12K)	63	59	100LL
45.7	Pioneer Village Field Airport (0V3)	351	346	100LL
48.2	Brewster Field Airport (HDE KHDE HDE)	329	324	100LL, Jet A
53.2	Hill City Municipal Airport (HLC KHLC HLC)	244	239	100LL
53.3	Hastings Municipal Airport (HSI KHSI HSI)	18	14	100LL, Jet A
53.5	Russell Municipal Airport (RSL KRSL RSL)	180	176	100LL
54.3	Blosser Municipal Airport (CNK KCNK CNK)	103	99	100LL, Jet A+
58.7	Kearney Regional Airport (EAR KEAR EAR)	350	345	100LL, Jet A
59.5	Hays Regional Airport (HYS KHYS HYS)	202	197	100LL, Jet A
62.6	Harvard State Airport (08K)	31	27	100LL
66.1	Ellsworth Municipal Airport (9K7)	156	152	100LL
70.8	Cambridge Municipal Airport (KCSB CSB)	297	292	100LL, Jet A
74.7	Fairmont State Airfield Airport (KFMZ FMZ)	48	44	100LL
75.6	Central Nebraska Regional Airport (GRI KGRI GRI)	16	12	100LL, Jet A
76.3	Jim Kelly Field Airport (LXN KLXN LXN)	324	319	100LL, Jet A+
77.1	Aurora Municipal - Al Potter Field Airport (KAUH AUH)	28	24	100LL
78.8	Salina Regional Airport (SLN KSLN SLN)	137	133	100LL, Jet A
78.9	Fairbury Municipal Airport (FBY KFBY FBY)	70	67	100LL

Notices to Airmen (NOTAMS)

NOTAMs

List ALL K82 NOTAMs

View K82 NOTAMs

NOTAM Radius Search

NOTAMS within

NM of K82

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):

Buffer (Both Sides):

Include:

Enroute Airports and Navigational Aids

Regulatory Notices

ARTCCs/UIRs/FIRs FDC TFR Notices Only

Ratings & Reviews

Smith Center Municipal Airport Ratings

Category	Aspect	Rating
	Overall Rating for Smith Center Municipal Airport	0.0/5 (0 votes cast)
Flight Service	Number of Flights	0.0/5 (0 votes cast)
	Overall Number of Routes Served	0.0/5 (0 votes cast)
	International Routes Served	0.0/5 (0 votes cast)
	On-time Performance	0.0/5 (0 votes cast)
Business Services & Internet	Airport Lounges	0.0/5 (0 votes cast)
	Business Centers	0.0/5 (0 votes cast)
	Airport Website (information & tools)	0.0/5 (0 votes cast)
	Availability of Internet Connectivity	0.0/5 (0 votes cast)
	Wireless Internet Access	0.0/5 (0 votes cast)
General Facilities	ATM Locations	0.0/5 (0 votes cast)
	Public Telephones	0.0/5 (0 votes cast)
	Restrooms	0.0/5 (0 votes cast)
	Architecture	0.0/5 (0 votes cast)
	Terminal Layout	0.0/5 (0 votes cast)
	Seating Areas	0.0/5 (0 votes cast)
	Overall Cleanliness	0.0/5 (0 votes cast)
	Children Play Areas	0.0/5 (0 votes cast)
	Geographic Location	0.0/5 (0 votes cast)
	Baggage Claim Locations	0.0/5 (0 votes cast)
	Baggage Handling	0.0/5 (0 votes cast)
	Overall Comfort	0.0/5 (0 votes cast)
	Security Lines	0.0/5 (0 votes cast)
Transportation & Parking	Parking Availability	0.0/5 (0 votes cast)
	Parking Pricing	0.0/5 (0 votes cast)
	Public Transport	0.0/5 (0 votes cast)
	Car Rental	0.0/5 (0 votes cast)
	Taxis	0.0/5 (0 votes cast)
	Hotel Shuttles	0.0/5 (0 votes cast)
	Proximity to City Center	0.0/5 (0 votes cast)
Amenities	Shopping (variety and number)	0.0/5 (0 votes cast)
	Restaurants & Bars (variety and number)	0.0/5 (0 votes cast)
	Restaurants & Bars (price/value)	0.0/5 (0 votes cast)

Runways

K82 Airport Runway Summary

Longest Runway:	14/32 is 4400 ft (1341 m) long
Runways with an Instrument Approach:

K82 Airport Runway Details

Runway 14/32	2453 ft x 75 ft (748 m x 23 m)
Runway Length Source:	as of
Surface:	Grass -
Runway Pavement Class:
Runway Edge Lights:	Intensity
Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

	Runway 14	Runway 32
Elevation:	1794	1791
Latitude:	39.763	39.7571
Longitude:	-98.7949	-98.7907
True Magnetic Hdg.:	151	331
ILS Type:
Glide Path Angle:	0.0 degrees	0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:	0	0
Object Marked/Lighted?:
Distance from End:	0	0
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:	1794	1791
Displaced Threshold:	0	0
Threshold Latitude:
Threshold Longitude:
Declared Distances
Take Off Run Avbl. (TORA):	0	0
Take Off Distance Avbl. (TODA):	0	0
Actual Stop Dist. Avbl. (ASDA):	0	0
Landing Dist. Avbl. (LDA):	0	0

Runway 17/35	3601 ft x 50 ft (1098 m x 15 m)
Runway Length Source:	as of
Surface:	Asphalt -
Runway Pavement Class:
Runway Edge Lights:	Yes Intensity
Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

	Runway 17	Runway 35
Elevation:	1797	1787
Latitude:	39.7666	39.7568
Longitude:	-98.7938	-98.7939
True Magnetic Hdg.:	180	0
ILS Type:
Glide Path Angle:	0.0 degrees	0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:	0	0
Object Marked/Lighted?:
Distance from End:	0	0
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:	Yes	Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:	1797	1787
Displaced Threshold:	0	101
Threshold Latitude:
Threshold Longitude:
Declared Distances
Take Off Run Avbl. (TORA):	0	0
Take Off Distance Avbl. (TODA):	0	0
Actual Stop Dist. Avbl. (ASDA):	0	0
Landing Dist. Avbl. (LDA):	0	0

Remarks

A110-1	PUBLIC PHONE AVBL 24 HRS.
A17	FOR ARPT ATTENDANT CALL 785-282-6588 OR 785-282-5837.
A42-18	RWY 18 NO MKGS FOR NPI RWY.
A42-36	RWY 36 NO MKGS FOR NPI RWY.
A54-14	CROPS VARY IN HEIGHT 0-4 FT.
A57-36	APCH SLOPE 21:1 FROM DSPLCD THLD.
A70	FOR FUEL CALL 785-282-6555.
A81-APT	ACTVT MIRL RWY 14/32, REIL RWY 14 AND 32, PAPI RWY 14 AND 32 - CTAF.
E111	PRVDD THE APCH TO EACH RWY IS MAINTD FOR A MIN 20:1 GLIDE SLOPE AND THE TRSNL SFC BE MAINTD FOR A 7:1 SLOPE.
E40-14	SE

Services

Airframe Repair:	None
Powerplant Repair:	None
Bottled Oxygen:	None
Bulk Oxygen:	None
Fuel Available:	100LL
Landing Fees:	No
Parking:	Hangars and tiedowns available
