Location
Latitude: |
33-56-51.3977N (33.94761) |
Longitude: |
098-36-58.1316W (-98.616148) |
Elevation: |
1005.1 feet MSL (306 m MSL) |
Magnetic Variation: |
3.8 E (as of March 2024 from WMM2020 model) |
Time Zone: |
UTC -6.0 (Standard Time) UTC -5.0 (Daylight Savings Time) |
From City: |
08 N.M. NW of Wichita Falls, Texas |
Found On: |
Dallas-Ft Worth Chart |
FAA Region: |
ASW |
Contacts
Manager: |
Privately owned: |
JOHN HOOKER 2926 HAWS ROAD IOWA PARK, TX 76367 940-781-7246 |
JOHN HOOKER 2926 HAWS ROAD IOWA PARK, TX 76367 940-781-7246 |
Operations
Airport Status: |
Operational |
Facility Use: |
Public |
Type: |
Airport |
Activation Date: |
03/1946 |
Control tower: |
No |
Attendance (Months/Days/Hours): |
Months/Days/Hours Unattended |
Boundary ARTCC: |
ZFW (Fort Worth) |
Responsible ARTCC: |
ZFW (Fort Worth) |
Lighting Schedule: |
SS-SR |
Segmented Circle Indicator: |
No |
Traffic Pattern Altitude (MSL): |
2005 feet (611 m) |
NOTAMs Facility: |
FTW |
NOTAM-D Service: |
Yes |
International Airport of Entry: |
No |
Customs Landing Rights: |
No |
Military Landing Rights: |
No |
Civil/Military Joint Use: |
No |
Based Aircraft
Single Engine: | 60 |
Multi Engine: | 5 |
GA Helicopters: | 3 |
Ultralights: | 2 |
Annual Operations (as of 11/04/2023)
Total Operations: | 5840 | |
GA Local: | 4380 | 75.0% |
GA Itinerant: | 1460 | 25.0% |
Communications
CTAF: | 122.800 |
Unicom: | 122.800 |
Approach: | SHEPPARD 118.2 118.2 FORT WORTH ARTCC |
Departure: | SHEPPARD 118.2 118.2 FORT WORTH ARTCC |
- APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.5/350.35 (WICHITA FALLS NR 2 RCAG) WHEN SHEPPARD APCH CTL (SPS) CLSD.
Fixed Based Operators (FBOs) & Fuel
(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
To add, modify, or delete a business click here.
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
Area Code: 940 |
Business Name | Frequency | Phone | Fuel Grade |
---|---|---|---|
Wichita Valley Airport
Update FBO info |
592-2123 | 100LL |
Flight Service Stations
Primary | Alternate | |
FSS on Field: | N | |
FSS Name (ID): | Fort Worth(FTW) | |
Frequency: | ||
Toll Free Phone: | 1-800-WX-BRIEF |
Instrument Procedures / Charts
FAA Terminal Procedures valid from 0901Z 02/22/24 to 0901Z 03/21/24.
There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:
APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type | Page Name | Volume | Action Since Last Cycle |
---|---|---|---|
IAP | VOR-B | SC-2 | |
MIN | TAKEOFF MINIMUMS | SC-2 |
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
Navigation Aids (Navaids) near F14
Dist (NM) | ID | Morse Code | Name | Type | Freq | True Hdg | Mag Hdg |
---|---|---|---|---|---|---|---|
2.6 | SPS | . . . . _ _ . . . . | Wichita Falls | VORTAC | 112.70 | 25 | 21 |
6.7 | SHP | . . . . . . . . _ _ . | Sheppard | TACAN | 110.80 | 71 | 67 |
8.3 | ICF | . . _ . _ . . . _ . | Madison | NDB | 296 | 105 | 101 |
11.8 | SKB | . . . _ . _ _ . . . | Scotland | NDB | 344 | 147 | 143 |
34.4 | LAW | . _ . . . _ . _ _ | Lawton | VOR-DME | 116.85 | 16 | 12 |
41.0 | PFL | . _ _ . . . _ . . _ . . | Post | NDB | 425 | 14 | 10 |
43.5 | DUC | _ . . . . _ _ . _ . | Duncan | DME | 111 | 52 | 48 |
46.7 | UKW | . . _ _ . _ . _ _ | Bowie | VORTAC | 117.15 | 121 | 117 |
46.8 | GMZ | _ _ . _ _ _ _ . . | Grindstone Mountain | NDB | 356 | 115 | 111 |
47.3 | GHX | _ _ . . . . . _ . . _ | Graham | NDB | 371 | 172 | 168 |
51.1 | FSI | . . _ . . . . . . | Trail | FAN MARKER | 11 | 7 | |
51.1 | OFZ | _ _ _ . . _ . _ _ . . | Trail | NDB | 388 | 11 | 7 |
53.8 | LTS | . _ . . _ . . . | Altus | VORTAC | 109.80 | 323 | 319 |
59.4 | HBR | . . . . _ . . . . _ . | Hobart | VORTAC | 111.80 | 338 | 334 |
71.5 | AKL | . _ _ . _ . _ . . | Haskell | NDB | 407 | 230 | 226 |
73.7 | ADM | . _ _ . . _ _ | Ardmore | VORTAC | 116.70 | 77 | 74 |
79.6 | MQP | _ _ _ _ . _ . _ _ . | Millsap | VORTAC | 117.70 | 156 | 152 |
81.4 | DT | _ . . _ | Pinck | NDB | 257 | 118 | 115 |
82.7 | BFV | _ . . . . . _ . . . . _ | Burns Flat | VORTAC | 110.00 | 339 | 335 |
82.7 | PVJ | . _ _ . . . . _ . _ _ _ | Pauls Valley | NDB | 384 | 55 | 52 |
Nearby Airports with Fuel
Notices to Airmen (NOTAMS)
Remarks
A110*G | THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY. |
A110-1 | |
A110-2 | INTENSIVE JET TRAINER TFC 2800-4500 FT MSL VICINITY OF ARPT & SHEPPARD AFB 6 MILES NE. CTC APCH CTL FOR TFC ADVISORIES. |
A110-3 | FOR CD CTC FORT WORTH ARTCC AT 817-858-7584. |
A40-13/31 | RWY 13/31 NSTD LIRL. RWY 13 THLD LGTS 2 GREEN/RED; RWY 31 THLD LGTS 2 GREEN/RED. |
A42-13 | MARKINGS NSTD; NRS & CNTRLN SMALL. |
A42-31 | MARKINGS NSTD; NRS & CNTRLN SMALL. |
A58-13 | 4 FT FENCE 0-143 FT DSTC, 15 FT RD 126 FT DSTC. |
A58-31 | 6 FT BANK 50 FT DSTC. |
A70-FUEL-10 | 0LL SELF SVC FUEL. |
E111 | PRE DATES THE ACT. |
Runways
Runway Summary
Runways: | 04/22 13/31 16/34 |
Longest Runway: | 13/31 is 3320 ft (1012 m) long |
Runways with an Instrument Approach: |
F14 Airport Runway Details
Runway 04/22 | 3107 ft x 100 ft (947 m x 30 m) | |
Surface: | Turf - Good condition - No special surface treatment |
Runway 04 |
Runway 22 |
|
Elevation: |
984.0 | 984.0 |
Latitude: |
33-56-38.3460N | 33-56-58.3450N |
Longitude: |
098-37-12.2090W | 098-36-44.2080W |
Runway True Alignment: |
049 | 229 |
Glide Path Angle: |
0.0 degrees | 0.0 degrees |
Traffic Pattern: |
Left | Left |
Object at End: |
PLINE | TREES |
Object Height: |
34 | 38 |
Object Marked/Lighted?: |
Marked | |
Distance from End: |
50 | 130 |
Object Centerline Offset: |
0 ft. left and right of centerline | 90 ft. left of centerline |
Runway 13/31 | 3320 ft x 40 ft (1012 m x 12 m) | |
Surface: | Turf - Good condition - No special surface treatment | |
Runway Edge Lights: | Low Intensity | |
Runway Weight Bearing Capacity (in thousands of pounds) |
||
Single Wheel Landing Gear: | 8.0 | |
Dual Wheel Landing Gear: | 12.5 |
Runway 13 |
Runway 31 |
|
Elevation: |
1004.4 | 981.5 |
Latitude: |
33-57-04.5910N | 33-56-39.0560N |
Longitude: |
098-37-12.5130W | 098-36-47.7330W |
Runway True Alignment: |
141 | 321 |
Glide Path Angle: |
0.0 degrees | 0.0 degrees |
Traffic Pattern: |
Left | Left |
Runway Markings Type: |
Basic | Basic |
Runway Markings Condition: |
Fair | Fair |
Object at End: |
ROAD | TREE |
Object Height: |
15 | 20 |
Distance from End: |
200 | 375 |
Object Centerline Offset: |
0 ft. left and right of centerline | 90 ft. left of centerline |
Runway 16/34 | 2037 ft x 42 ft (621 m x 13 m) | |
Surface: | Turf - Good condition - No special surface treatment |
Runway 16 |
Runway 34 |
|
Elevation: |
983.0 | 995.0 |
Latitude: |
33-57-05.3450N | 33-56-45.3460N |
Longitude: |
098-36-56.2090W | 098-36-53.2080W |
Runway True Alignment: |
173 | 353 |
Glide Path Angle: |
0.0 degrees | 0.0 degrees |
Traffic Pattern: |
Left | Left |
Object at End: |
FENCE | PLINE |
Object Height: |
4 | 30 |
Object Marked/Lighted?: |
Lighted | |
Distance from End: |
80 | 1000 |
Object Centerline Offset: |
0 ft. left and right of centerline | 90 ft. left of centerline |
Services
Airframe Repair: |
Minor |
Powerplant Repair: |
Minor |
Bottled Oxygen: |
None |
Bulk Oxygen: |
None |
Fuel Available: |
100LL, Jet A |
Landing Fees: |
No |
Parking: |
Tiedowns available |

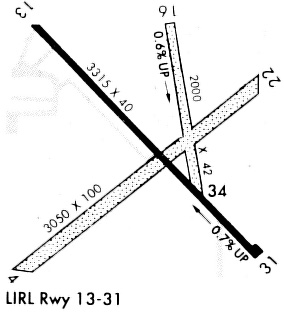

Maps & Diagrams
