Airport Details

Directions to E42 Airport

Thank you! Your submission was successfully sent :-)×
Oops! Something went wrong... Your submission did not go through :-(×

Location

Latitude:
36-13-15.6000N (36.221000)
Longitude:
101-11-40.2000W (-101.194500)
Elevation:
3090.0 feet MSL (942 m MSL)
Magnetic Variation:
5.9 E (as of June 2018 from WMM2015 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
1 N.M. N of Spearman, Texas
Found On:
Wichita Chart
FAA Region:
ASW

Operations

Facility Use:
Public
Type:
Airport
Activation Date:
06/1982
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
Unattended
Boundary ARTCC:
ZAB (Albuquerque)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
Yes
Beacon Color:
White-Green (Lighted Land Airport)
Traffic Pattern Altitude:
4090 feet (1247 m)
NOTAMs Facility:
FTW
NOTAM-D Service:
Yes

Based Aircraft

Single Engine:  10
Ultralights:  2

Annual Operations (as of 09/20/2017)

Total Operations:  3300
GA Local:  2200 66.7%
GA Itinerant:  1100 33.3%

Communications

CTAF:  122.900

  • APCH/DEP SERVICE PROVIDED BY ALBUQUERQUE ARTCC ON FREQS 127.85/285.475 (AMARILLO RCAG).


Contacts

Manager:
Publicly owned:
SUSAN BELLSNYDER
PO BOX 37
SPEARMAN, TX 79081
806-659-2524
CITY OF SPEARMAN
PO BOX 37
SPEARMAN, TX 79081
806-659-2524

Fixed Based Operators (FBOs) & Fuel

Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!

If you see that a business needs to be added, modified, or deleted please fill out our Update Form.
You can also add fuel prices for FBOs on this same form.
(Click on a business for detail)

Area Code: 806

Business Name Frequency Phone Fuel Grade & Location
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Fort Worth(FTW)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF


Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 06/21/18 to 0901Z 07/19/18.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 02 SC-2
IAP RNAV (GPS) RWY 20 SC-2
IAP VOR/DME RWY 02 SC-2
MIN TAKEOFF MINIMUMS SC-2
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Maps, Charts, & Diagrams

Spearman - Major Samuel B Cornelius Field (E42) Airport Terminal Map

Terminal Map Not Available for this Airport

E42 Airport Sectional

Flight Planning
at skyvector.com

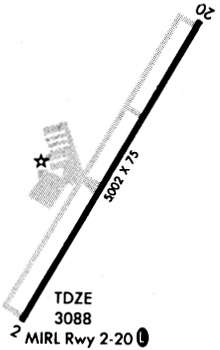

E42 Airport Diagram


Do you have a better diagram of this Airport?
Please share it with us.

METAR / TAF Weather

METAR

TAF

Navigation Aids (Navaids) near E42

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
24.3 Perryton Ochiltree County Airport
(KPYX PYX)
61 55 100LL, Jet A-1+
31.7 Guymon Municipal Airport
(GUY KGUY GUY)
331 325 100LL, Jet A
32.7 Hutchinson County Airport
(BGD KBGD BGD)
197 191 100LL, Jet A
37.7 Perry Lefors Field Airport
(PPA KPPA PPA)
165 159 100LL, Jet A-1+
43.0 Hemphill County Airport
(KHHF HHF)
116 111 100LL, Jet A
45.3 Moore County Airport
(KDUX DUX)
241 235 100LL, Jet A
50.6 Liberal Mid-America Regional Airport
(LBL KLBL LBL)
12 6 100LL, Jet A
59.7 Miller Airfield Airport
(25TS)
262 255 100LL, MOGAS
61.5 Judy Ranch Airport
(OK39)
43 38 100LL
65.1 Rick Husband Amarillo International Airport
(AMA KAMA AMA)
202 196 100LL, Jet A-1+
66.6 Dalhart Municipal Airport
(DHT KDHT DHT)
260 253 100LL, Jet A-1
77.0 Buffalo Airport
(1E7)
205 199 100LL, MOGAS
81.9 West Woodward Airport
(WWR KWWR WWR)
80 75 100LL, Jet A
83.4 Ulysses Airport
(KULS ULS)
354 348 100LL, Jet A
85.8 Stanton County Municipal Airport
(KJHN JHN)
342 336 100LL, Jet A
95.5 Clayton Municipal Arpk Airport
(CAO KCAO CAO)
278 271 100LL, Jet A
97.9 Mooreland Municipal Airport
(KMDF MDF)
80 75 100LL, MOGAS
98.0 Sayre Municipal Airport
(3O4)
129 124 100LL
98.6 Hereford Municipal Airport
(KHRX HRX)
214 208 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL E42 NOTAMs

NOTAM Radius Search

NOTAMS within
NM of E42

NOTAM Flight Path Search (Enter from two to five locations below)

Locations (ICAO):
Buffer (Both Sides):
NM
Include:

Ratings & Reviews

Major Samuel B Cornelius Field Airport Ratings

Category Aspect Rating
Overall Rating for Major Samuel B Cornelius Field Airport
  • 0.0/5 (0 votes cast)

Flight Service Number of Flights
  • 5.0/5 (1 vote cast)

Overall Number of Routes Served
  • 0.0/5 (0 votes cast)

International Routes Served
  • 0.0/5 (0 votes cast)

On-time Performance
  • 0.0/5 (0 votes cast)

Business Services & Internet Airport Lounges
  • 0.0/5 (0 votes cast)

Business Centers
  • 0.0/5 (0 votes cast)

Airport Website (information & tools)
  • 0.0/5 (0 votes cast)

Availability of Internet Connectivity
  • 0.0/5 (0 votes cast)

Wireless Internet Access
  • 0.0/5 (0 votes cast)

General Facilities ATM Locations
  • 0.0/5 (0 votes cast)

Public Telephones
  • 0.0/5 (0 votes cast)

Restrooms
  • 0.0/5 (0 votes cast)

Architecture
  • 0.0/5 (0 votes cast)

Terminal Layout
  • 0.0/5 (0 votes cast)

Seating Areas
  • 0.0/5 (0 votes cast)

Overall Cleanliness
  • 0.0/5 (0 votes cast)

Children Play Areas
  • 0.0/5 (0 votes cast)

Geographic Location
  • 0.0/5 (0 votes cast)

Baggage Claim Locations
  • 0.0/5 (0 votes cast)

Baggage Handling
  • 0.0/5 (0 votes cast)

Overall Comfort
  • 0.0/5 (0 votes cast)

Security Lines
  • 0.0/5 (0 votes cast)

Transportation & Parking Parking Availability
  • 0.0/5 (0 votes cast)

Parking Pricing
  • 0.0/5 (0 votes cast)

Public Transport
  • 0.0/5 (0 votes cast)

Car Rental
  • 0.0/5 (0 votes cast)

Taxis
  • 0.0/5 (0 votes cast)

Hotel Shuttles
  • 1.0/5 (1 vote cast)

Proximity to City Center
  • 0.0/5 (0 votes cast)

Amenities Shopping (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (variety and number)
  • 0.0/5 (0 votes cast)

Restaurants & Bars (price/value)
  • 0.0/5 (0 votes cast)

Runways

E42 Airport Runway Summary

Longest Runway: 02/20 is 5022 ft (1531 m) long
Runways with an Instrument Approach:

E42 Airport Runway Details



Runway 02/20  5002 ft x 75 ft (1525 m x 23 m)
Runway Length Source:  as of
Surface:  Asphalt -
Runway Pavement Class:
Runway Edge Lights:  Yes Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:
Dual Wheel Landing Gear:
Dual Tandem Wheel Landing Gear:
Dual Dual Tandem Wheel Landing Gear:

Runway 02

Runway 20

Elevation:
3086 3090
Latitude:
36.215 36.227
Longitude:
-101.199 -101.19
True Magnetic Hdg.:
29 209
ILS Type:
Glide Path Angle:
0.0 degrees 0.0 degrees
Traffic Pattern:
Runway Markings Type:
Runway Markings Condition:
Arresting Device:
Object at End:
Object Height:
0 0
Object Marked/Lighted?:
Distance from End:
0 0
Object Centerline Offset:
Visual Glide Slope Indicators:
Runway Visual Range (RVR):
Approach Light System:
REIL:
Yes Yes
Touchdown Lights:
Centerline Lights:
Threshold Crossing Height:
Threshold Elevation:
3086 3090
Displaced Threshold:
0 0
Threshold Latitude:

Threshold Longitude:

Declared Distances
Take Off Run Avbl. (TORA):
0 0
Take Off Distance Avbl. (TODA):
0 0
Actual Stop Dist. Avbl. (ASDA):
0 0
Landing Dist. Avbl. (LDA):
0 0

Remarks

A110*G THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1 NO LINE OF SIGHT BTN RY ENDS.
A14 CITY MANAGER.
A43-02 PAPI OTS
A70 FOR FUEL CALL 806-659-2422 & HGR SPACE 806-659-2524 MON-SAT 0730-1900.
A81-APT MIRL RY 02/20 PRESET LOW INTST; TO INCR INTST & ACTVT PAPI RYS 02 & 20 - 122.9.

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available
