• Location

    Latitude:
    31-47-37.0000N (31.793611)
    Longitude:
    098-57-23.4000W (-98.956500)
    Elevation:
    1386.7 feet MSL (423 m MSL)
    Magnetic Variation:
    4.5 E (as of May 2018 from WMM2015 model)
    Time Zone:
    UTC -6.0 (Standard Time)
    UTC -5.0 (Daylight Savings Time)
    From City:
    5 N.M. N of Brownwood, Texas
    Found On:
    San Antonio Chart
    FAA Region:
    ASW
  • Airport Operations

    Facility Use:
    Public
    Type:
    Airport
    Control tower:
    No
    Attendance (Months/Days/Hours):
    Months/Days/Hours
    ALL/MON-FRI/0700-2000
    Boundary ARTCC:
    ZFW (Fort Worth)
    Lighting Schedule:
    SEE RMK
    Segmented Circle Indicator:
    Yes
    Beacon Color:
    White-Green (Lighted Land Airport)
    Traffic Pattern Altitude:
    2387 feet (728 m)
    NOTAMs Facility:
    BWD
    NOTAM-D Service:
    Yes
    International Airport of Entry:
    No
    Customs Landing Rights:
    No
    Military Landing Rights:
    Yes
    Civil/Military Joint Use:
    No

    Based Aircraft

    Single Engine:  39
    Multi Engine:  6
    GA Helicopters:  2

    Annual Operations (as of 11/28/2017)

    Total Operations:  10100
    GA Local:  7500 74.3%
    GA Itinerant:  2500 24.8%
    Military Aircraft:  100 1.0%
  • Communications

    CTAF:  122.800
    Unicom:  122.800
    AWOS-3:  118.325 (888-297-9399)

    • APCH/DEP SERVICE PROVIDED BY FORT WORTH ARTCC ON FREQS 127.45/290.3 (BROWNWOOD RCAG).

  • Contacts

    Manager:
    Publicly owned:
    BOBBY BURKS
    BOX 1389
    BROWNWOOD, TX 76801
    325-643-1482
    CITY OF BROWNWOOD
    BOX 1389
    BROWNWOOD, TX 76801
    (325) 646-5775
  • Fixed Based Operators (FBOs) & Fuel

    To have your name removed from AirportGuide.com and any other web sites, you must contact the FAA to have your name removed from the public listing. At the next FAA database update, your name will be removed from AirportGuide.com. For immediate removal from this site, send an email to support(at)airportguide.com with the URL of the page and/or your full name and city.
    Click here to be taken to the FAA site where you can start the process to remove your name.
    (Click on a business for detail)
    Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide!
    If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

    Area Code: 915

    Business Name Frequency Phone Fuel Grade
    To add, modify, or delete a business click here.

  • Flight Service Stations

    Primary Alternate
    FSS on Field:  N
    FSS Name (ID):  Fort Worth(FTW)
    Frequency:
    Toll Free Phone:  1-800-WX-BRIEF

  • Instrument Procedures / Charts


    FAA Terminal Procedures valid from 0901Z 05/24/18 to 0901Z 06/21/18.

    There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

    APD - Airport Diagram
    DP - Departure Procedure Charts
    HOT - Hot Spots
    IAP - Instrument Approach Procedure Charts
    MIN - Minimums
    STAR - Standard Terminal Arrival Charts
    Page Type Page Name Volume Action Since
    Last Cycle
    IAP LOC RWY 17 SC-3
    IAP RNAV (GPS) RWY 17 SC-3
    IAP RNAV (GPS) RWY 35 SC-3
    IAP VOR/DME RWY 35 SC-3
    MIN ALTERNATE MINIMUMS SC-3
    MIN TAKEOFF MINIMUMS SC-3
    Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.
  • Maps

    Brownwood - Brownwood Regional (BWD) Airport Terminal Map

    Terminal Map Not Available for this Airport

    BWD Airport Sectional

    Flight Planning
    at skyvector.com

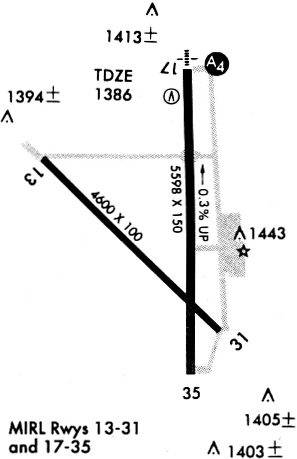

    BWD Airport Diagram


    Do you have a better diagram of this Airport?
    Please share it with us.
  • METAR / TAF

    METAR

    TAF

  • Navigation Aids (Navaids) near BWD

    Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).
  • Nearby Airports with Fuel

    Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
    19.7 Comanche County-City Airport
    (KMKN MKN)
    67 63 100LL, Jet A
    35.6 San Saba County Municipal Airport
    (81R)
    159 155 100LL
    38.0 Eastland Municipal Airport
    (ETN KETN ETN)
    11 7 100LL, Jet A
    41.4 Curtis Field Airport
    (BBD KBBD BBD)
    207 202 100LL, Jet A
    41.9 Hamilton Municipal Airport
    (KMNZ MNZ)
    100 96 100LL, Jet A
    47.0 Stephenville Clark Regional Airport
    (SEP KSEP SEP)
    57 53 100LL, Jet A
    52.3 Abilene Regional Airport
    (ABI KABI ABI)
    315 310 100LL, Jet A, Jet A-1+
    52.6 Bruce Field Airport
    (E30)
    262 257 100LL
    52.9 Elmdale Airpark Airport
    (82TS)
    318 313 100LL
    55.6 Stephens County Airport
    (BKD KBKD BKD)
    3 359 100LL, Jet A
    56.7 Lampasas Airport
    (KLZZ LZZ)
    136 132 100LL
    62.4 Llano Municipal Airport
    (KAQO AQO)
    165 161 100LL, Jet A
    63.3 Gatesville Municipal Airport
    (KGOP GOP)
    110 106 100LL
    64.7 Mason County Airport
    (T92)
    190 185 100LL
    69.8 Granbury Regional Airport
    (KGDJ GDJ)
    55 51 100LL, Jet A
    70.7 Clifton Municipal/Isenhower Field Airport
    (7F7)
    88 84 100LL
    73.2 Burnet Municipal Kate Craddock Field Airport
    (KBMQ BMQ)
    149 145 100LL, Jet A
    74.7 Mineral Wells Airport
    (MWL KMWL MWL)
    37 33 100LL, Jet A
    77.7 Skylark Field Airport
    (ILE KILE ILE)
    122 118 100LL, Jet A
    77.7 Arledge Field Airport
    (F56)
    329 324 100LL
  • Notices to Airmen (NOTAMS)

    NOTAMs

    List ALL BWD NOTAMs

    NOTAM Radius Search

    NOTAMS within
    NM of BWD

    NOTAM Flight Path Search (Enter from two to five locations below)

    Locations (ICAO):
    Buffer (Both Sides):
    NM
    Include:
  • Ratings & Reviews

    Brownwood Regional Airport Ratings

    Category Aspect Rating
    Overall Rating for Brownwood Regional Airport
    • 0.0/5 (0 votes cast)

    Flight Service Number of Flights
    • 0.0/5 (0 votes cast)

    Overall Number of Routes Served
    • 0.0/5 (0 votes cast)

    International Routes Served
    • 2.0/5 (1 vote cast)

    On-time Performance
    • 0.0/5 (0 votes cast)

    Business Services & Internet Airport Lounges
    • 0.0/5 (0 votes cast)

    Business Centers
    • 0.0/5 (0 votes cast)

    Airport Website (information & tools)
    • 0.0/5 (0 votes cast)

    Availability of Internet Connectivity
    • 0.0/5 (0 votes cast)

    Wireless Internet Access
    • 0.0/5 (0 votes cast)

    General Facilities ATM Locations
    • 2.0/5 (1 vote cast)

    Public Telephones
    • 0.0/5 (0 votes cast)

    Restrooms
    • 0.0/5 (0 votes cast)

    Architecture
    • 4.0/5 (1 vote cast)

    Terminal Layout
    • 0.0/5 (0 votes cast)

    Seating Areas
    • 0.0/5 (0 votes cast)

    Overall Cleanliness
    • 0.0/5 (0 votes cast)

    Children Play Areas
    • 0.0/5 (0 votes cast)

    Geographic Location
    • 0.0/5 (0 votes cast)

    Baggage Claim Locations
    • 0.0/5 (0 votes cast)

    Baggage Handling
    • 0.0/5 (0 votes cast)

    Overall Comfort
    • 0.0/5 (0 votes cast)

    Security Lines
    • 0.0/5 (0 votes cast)

    Transportation & Parking Parking Availability
    • 0.0/5 (0 votes cast)

    Parking Pricing
    • 0.0/5 (0 votes cast)

    Public Transport
    • 0.0/5 (0 votes cast)

    Car Rental
    • 0.0/5 (0 votes cast)

    Taxis
    • 0.0/5 (0 votes cast)

    Hotel Shuttles
    • 0.0/5 (0 votes cast)

    Proximity to City Center
    • 0.0/5 (0 votes cast)

    Amenities Shopping (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (variety and number)
    • 0.0/5 (0 votes cast)

    Restaurants & Bars (price/value)
    • 0.0/5 (0 votes cast)

  • Remarks

    A110-1 FARM EQUIPMENT INVOF AIRPORT.
    A14 CITY MANAGER
    A58-17 10 FT ROAD 60 FT EAST OF RY CENTERLINE AT THLD.
    A81-APT ACTVT MIRL RY 17/35 - CTAF.
    E40-31 NW.

  • Runways

    BWD Airport Runway Summary

    Longest Runway: 17/35 is 3707 ft (1130 m) long
    Runways with an Instrument Approach:

    BWD Airport Runway Details

    Runway 08/26  2211 ft x 50 ft (674 m x 15 m)
    Runway Length Source:  3RD PARTY SURVEY as of 08/07/2011
    Surface:  Turf/Gravel - Poor condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 08

    Runway 26

    Elevation:
    1560 1555
    Latitude:
    32-54-44.8465N 32-54-44.4765N
    Longitude:
    099-44-09.8295W 099-43-43.9050W
    True Magnetic Hdg.:
    91 271
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    ROAD
    Object Height:
    10 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    50 ft. left of centerline
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 13/31  1702 ft x 50 ft (519 m x 15 m)
    Runway Length Source:  3RD PARTY SURVEY as of 08/07/2011
    Surface:  Turf/Gravel - Poor condition -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 13

    Runway 31

    Elevation:
    1558 1553
    Latitude:
    32-54-45.0759N 32-54-33.0077N
    Longitude:
    099-44-03.4446W 099-43-49.5220W
    True Magnetic Hdg.:
    136 316
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    ROAD ROAD
    Object Height:
    10 10
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    50 ft. left of centerline
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 17/35  3707 ft x 60 ft (1130 m x 18 m)
    Runway Length Source:  3RD PARTY SURVEY as of 08/07/2011
    Surface:  Turf/Gravel - Poor condition -
    Runway Pavement Class:
    Runway Edge Lights:  Medium Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:  4.0
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 17

    Runway 35

    Elevation:
    1561 1554
    Latitude:
    32-54-51.2536N 32-54-14.5814N
    Longitude:
    099-44-09.4282W 099-44-09.7332W
    True Magnetic Hdg.:
    180 0
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Left Left
    Runway Markings Type:
    Nonprecision Instrument Nonprecision Instrument
    Runway Markings Condition:
    Good Good
    Arresting Device:
    Object at End:
    ROAD
    Object Height:
    15 0
    Object Marked/Lighted?:
    Distance from End:
    900 0
    Object Centerline Offset:
    50 ft. left of centerline
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 08/26  2140 ft x 100 ft (652 m x 30 m)
    Runway Length Source:  as of
    Surface:  Grass -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 08

    Runway 26

    Elevation:
    0 0
    Latitude:
    32.9136 32.9136
    Longitude:
    -99.7342 -99.7272
    True Magnetic Hdg.:
    90 270
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 13/31  1700 ft x 80 ft (518 m x 24 m)
    Runway Length Source:  as of
    Surface:  Grass -
    Runway Pavement Class:
    Runway Edge Lights:  Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 13

    Runway 31

    Elevation:
    0 0
    Latitude:
    32.9136 32.9103
    Longitude:
    -99.7322 -99.7281
    True Magnetic Hdg.:
    133 313
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    0 0
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

    Runway 17/35  3705 ft x 60 ft (1129 m x 18 m)
    Runway Length Source:  as of
    Surface:  Asphalt -
    Runway Pavement Class:
    Runway Edge Lights:  Yes Intensity

    Runway Weight Bearing Capacity (in thousands of pounds)
    Single Wheel Landing Gear:
    Dual Wheel Landing Gear:
    Dual Tandem Wheel Landing Gear:
    Dual Dual Tandem Wheel Landing Gear:

    Runway 17

    Runway 35

    Elevation:
    1561 1554
    Latitude:
    32.9142 32.9041
    Longitude:
    -99.736 -99.736
    True Magnetic Hdg.:
    180 360
    ILS Type:
    Glide Path Angle:
    0.0 degrees 0.0 degrees
    Traffic Pattern:
    Runway Markings Type:
    Runway Markings Condition:
    Arresting Device:
    Object at End:
    Object Height:
    0 0
    Object Marked/Lighted?:
    Distance from End:
    0 0
    Object Centerline Offset:
    Visual Glide Slope Indicators:
    Runway Visual Range (RVR):
    Approach Light System:
    REIL:
    Yes Yes
    Touchdown Lights:
    Centerline Lights:
    Threshold Crossing Height:
    Threshold Elevation:
    1561 1554
    Displaced Threshold:
    0 0
    Threshold Latitude:

    Threshold Longitude:

    Declared Distances
    Take Off Run Avbl. (TORA):
    0 0
    Take Off Distance Avbl. (TODA):
    0 0
    Actual Stop Dist. Avbl. (ASDA):
    0 0
    Landing Dist. Avbl. (LDA):
    0 0

  • Services

    Airframe Repair:
    Major
    Powerplant Repair:
    Major
    Bottled Oxygen:
    None
    Bulk Oxygen:
    None
    Fuel Available:
    100LL
    Landing Fees:
    No
    Parking:
    Hangars and tiedowns available

© 1998-2018 AirportGuide.com. All rights reserved.

AirportGuide.com does not guarantee the accuracy or timeliness of any information on this site. Use at your own risk.
NOT to be used as an official source for flight planning, navigation, or use in flight.
