George L Scott Municipal Airport

US Flag

West Union Weather (°F)

Location

Latitude:
42-59-06.8000N (42.985222)
Longitude:
091-47-26.3000W (-91.790639)
Elevation:
1231.8 feet MSL (375 m MSL)
Magnetic Variation:
1.1 W (as of March 2024 from WMM2020 model)
Time Zone:
UTC -6.0 (Standard Time)
UTC -5.0 (Daylight Savings Time)
From City:
01 N.M. NE of West Union, Iowa
Found On:
Chicago Chart
FAA Region:
ACE

Contacts

Manager:
Publicly owned:
GREG NOVAK
10184 240TH STREET
WEST UNION, IA 52175
563-422-8465
CITY OF WEST UNION
P.O. BOX 151
WEST UNION, IA 52175-0151
563-422-3908

Operations

Airport Status:
Operational
Facility Use:
Public
Type:
Airport
Activation Date:
01/1964
Control tower:
No
Attendance (Months/Days/Hours):
Months/Days/Hours
Unattended
Boundary ARTCC:
ZMP (Minneapolis)
Responsible ARTCC:
ZMP (Minneapolis)
Lighting Schedule:
SEE RMK
Segmented Circle Indicator:
No
Traffic Pattern Altitude (MSL):
2232 feet (680 m)
NOTAMs Facility:
FOD
NOTAM-D Service:
Yes

Based Aircraft

Single Engine:  6
Gliders:  1

Annual Operations (as of 07/20/2023)

Total Operations:  3850
GA Local:  1494 38.8%
GA Itinerant:  2356 61.2%

Communications

CTAF:  122.800
Unicom:  122.800

  • APCH/DEP SVC PRVDD BY MINNAEPOLIS ARTCC ON FREQ 118.85 (LA CROSSE RCAG).


Fixed Based Operators (FBOs) & Fuel

(Click on a business for detail)
Please help us keep this information up to date. This is a FREE SERVICE just like everything else on Airport Guide! If you see that a business needs to be added, modified, or deleted please fill out our Update Form.

Area Code: 319

Business Name Frequency Phone Fuel Grade
Union Air Service
   Update FBO info
Unicom 122.8 422-5842 100LL
To add, modify, or delete a business click here.

Flight Service Stations

Primary Alternate
FSS on Field:  N
FSS Name (ID):  Fort Dodge(FOD)
Frequency:
Toll Free Phone:  1-800-WX-BRIEF

Instrument Procedures / Charts


FAA Terminal Procedures valid from 0901Z 02/22/24 to 0901Z 03/21/24.

There are various types of charts available for an airport. They are listed in the Page Type column. Here is a legend for those types:

APD - Airport Diagram
DP - Departure Procedure Charts
HOT - Hot Spots
IAP - Instrument Approach Procedure Charts
MIN - Minimums
STAR - Standard Terminal Arrival Charts
Page Type Page Name Volume Action Since
Last Cycle
IAP RNAV (GPS) RWY 17 NC-3
IAP RNAV (GPS) RWY 35 NC-3
MIN TAKEOFF MINIMUMS NC-3
Terminal Procedures are only available for airports in several countries with more being added all the time. If you are looking for a specific country's charts, please send an email to support(at)airportguide.com stating the country name. This will be used to prioritize the implementation.

Navigation Aids (Navaids) near 3Y2

Navigational Aid (NAVAID) distances from the airport are listed in Nautical Miles (NM).

Nearby Airports with Fuel

Dist (NM) Name (Airport IDs) True Hdg Mag Hdg Fuel Grade
17.6 Decorah Municipal Airport
(DEH KDEH DEH)
7 8 100LL, Jet A+
19.8 Elkader Airport
(I27)
114 115 100LL
20.0 Oelwein Municipal Airport
(KOLZ OLZ)
203 204 100LL, Jet A
29.3 Prairie Du Chien Municipal Airport
(PCD KPDC PDC)
85 87 100LL, Jet A
32.4 James H Connell Field At Independence Municipal Airport
(KIIB IIB)
192 193 100LL, Jet A
34.7 Waverly Municipal Airport
(C25)
245 246 100LL
36.4 Northeast Iowa Regional Airport
(CCY KCCY CCY)
278 279 100LL, Jet A
37.1 Waterloo Regional Airport
(ALO KALO ALO)
226 227 100LL, Jet A
49.9 Rushford Municipal/Robert W Bunke Field Airport
(55Y)
358 359 100LL
50.1 Boscobel Airport
(KOVS OVS)
77 79 100LL
50.3 Lancaster Municipal Airport
(73C)
103 105 100LL
53.6 Monticello Regional Airport
(MXO KMXO MXO)
148 150 100LL, Jet A
58.5 Marion Airport
(C17)
168 169 100LL, Jet A, MOGAS
58.5 La Crosse Regional Airport
(LSE KLSE LSE)
23 25 100LL, Jet A
59.1 Dubuque Regional Airport
(DBQ KDBQ DBQ)
125 127 100LL, Jet A-1+
61.8 Platteville Municipal Airport
(KPVB PVB)
106 108 100LL, Jet A
63.4 Rochester International Airport
(RST KRST RST)
331 332 100LL, Jet A
64.3 Austin Municipal Airport
(AUM KAUM AUM)
309 309 100LL, Jet A
65.1 Hampton Municipal Airport
(HPT KHPT HPT)
256 256 100LL, Jet A
65.8 Winona Municipal-Max Conrad Field Airport
(ONA KONA ONA)
2 3 100LL, Jet A

Notices to Airmen (NOTAMS)

NOTAMs

List ALL 3Y2 NOTAMs

NOTAM Radius Search

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 3Y2

NOTAM Flight Path Search (Enter from two to five locations below)

NOTAMS within

Enter NOTAM radius search distance

This field is required
NM of 3Y2

Remarks

A110-1 RY 17 PAPI UNUSBL BYD 7 DEG RIGHT OF CNTRLN.
A110-2 FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A43-17 PAPI NSTD; KEY CTAF 5 TIMES.
A43-35 PAPI NSTD; KEY CTAF 5 TIMES.
A70-FUEL-10 0LL AVBL 24-7 SELF SVC.
A81-APT ACTVT PAPI RYS 17 & 35 - CTAF.

Runways

Runway Summary

Runways: 17/35
Longest Runway: 17/35 is 4149 ft (1265 m) long
Runways with an Instrument Approach:

3Y2 Airport Runway Details

Runway 17/35  4149 ft x 60 ft (1265 m x 18 m)
Runway Length Source:  3RD PARTY SURVEY as of 06/12/2014
Surface:  Concrete - Good condition - No special surface treatment
Runway Pavement Class:  7 /R/C/W/U
Runway Edge Lights:  Medium Intensity

Runway Weight Bearing Capacity (in thousands of pounds)
Single Wheel Landing Gear:  21.0
Dual Wheel Landing Gear:  21.0

Runway 17

Runway 35

Elevation:
1231.8 1196.1
Latitude:
42-59-27.1260N 42-58-46.4823N
Longitude:
091-47-29.8099W 091-47-22.7271W
Runway True Alignment:
173 353
Glide Path Angle:
3.0 degrees 3.0 degrees
Traffic Pattern:
Left Left
Runway Markings Type:
Nonprecision Instrument Nonprecision Instrument
Runway Markings Condition:
Good Good
Visual Glide Slope Indicators:
2-Light PAPI On Left Side Of Runway 2-Light PAPI On Left Side Of Runway
Threshold Crossing Height:
41 38

Services

Airframe Repair:
Major
Powerplant Repair:
Major
Bottled Oxygen:
None
Bulk Oxygen:
None
Fuel Available:
100LL, Jet A
Landing Fees:
No
Parking:
Hangars and tiedowns available

Maps & Diagrams

3Y2 Sectional

Flight Planning
at skyvector.com

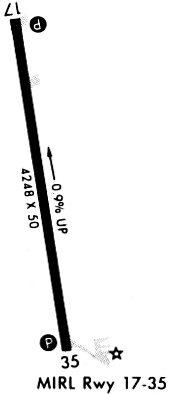

3Y2 Diagram


Do you have a better diagram of this ?
Please share it with us.
